Telephone set
PSTN LINE
TEL

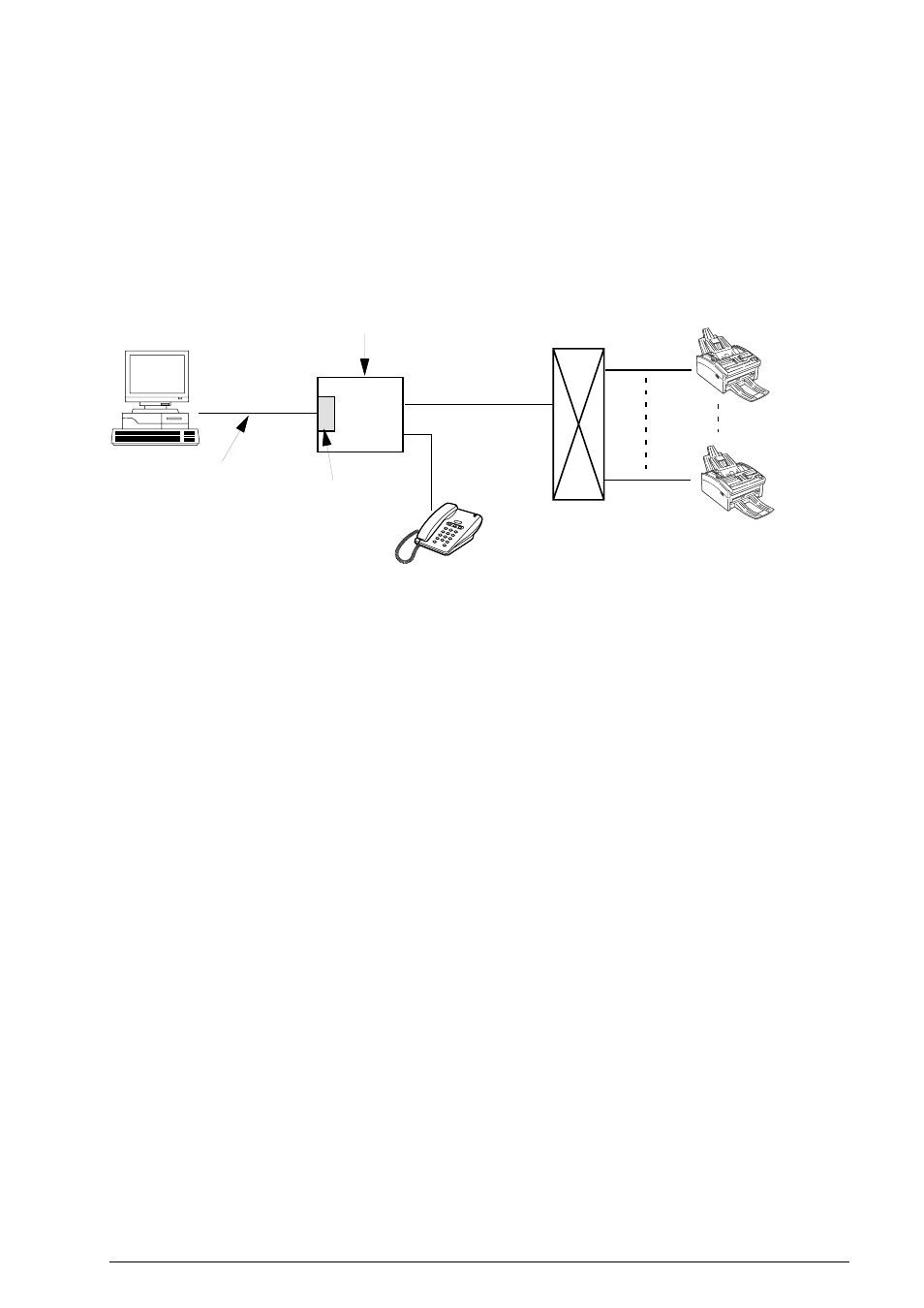

Conceptual connection diagram of RMCS with other devices
1 2 3 4 5 6 7 8 9 0 * #
Remote Fax
PC-I/F board
RS232C
cable
FX050 series facsimile with PC-I/F
2. Setup
2.1 Mounting
This sysrem (RMCS Model 20) is used FX050 series Facsimile with PC-I/F.
Conceptual connection diagram of RMCS Model 20 with other devices
No problem is caused for the basic operation of this system even if no telephone set connected.
2.1.1 Mounting Procedures
1) Before operation, disconnect the power plug of the IBM PC/AT from the system plug socket.
2) Disconect the power plug of FX050 series Facsimile, too and set PC-I/F board to the Facsimile.
3) Connect RS232C cable between COM. Port of the IBM PC/AT and PC-I/F board of the Facsimile.
4) Connect the power pulg of the IBM PC/AT and the Facsimile and turn their power switch on.
