40055101TH Rev.4 189 /

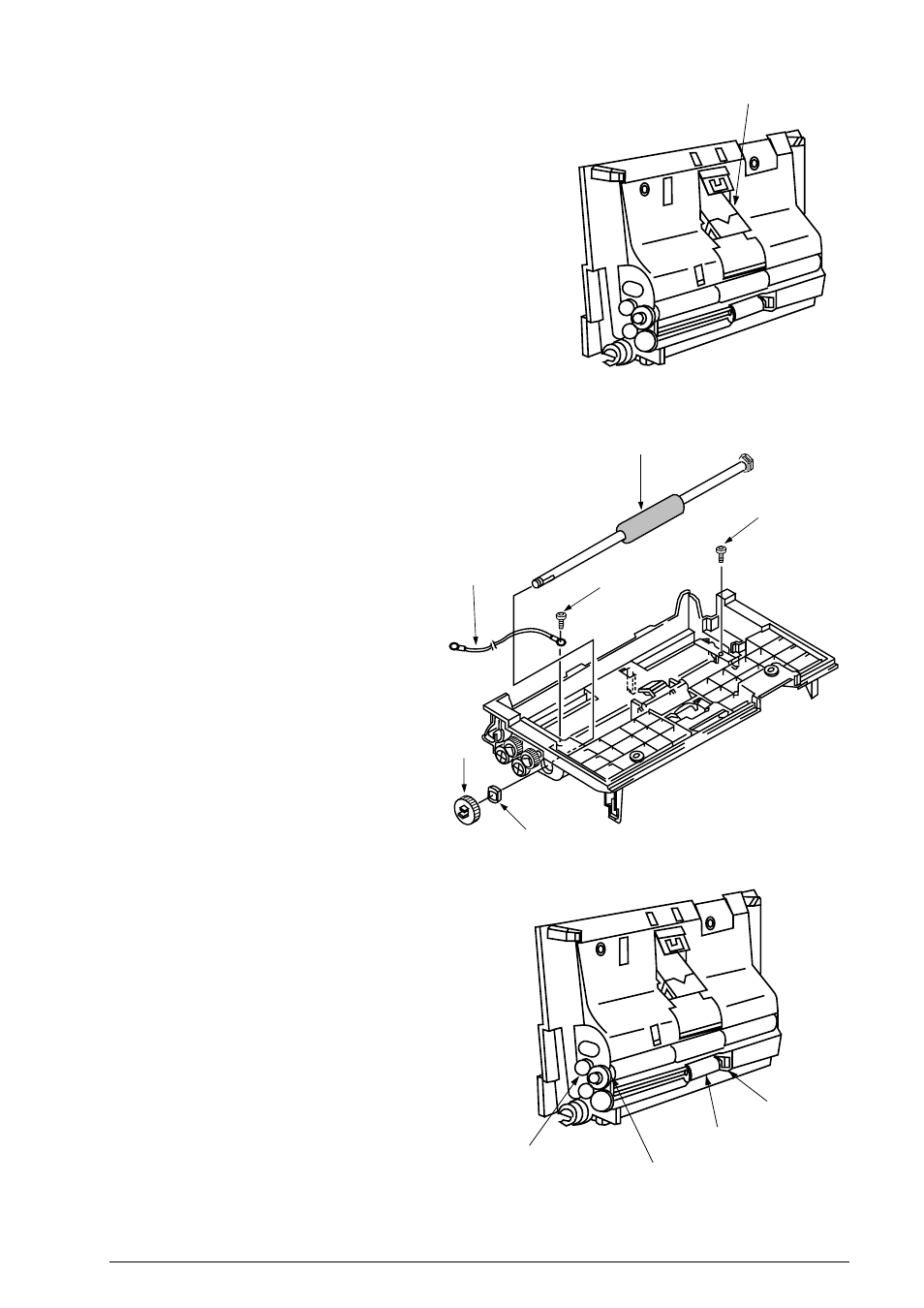

3) Paper guide (U) Assembly
a) Separation Rubber
a. The Separation Rubber can be
removed from the Paper Guide
(U) Assembly.
b) Feed Roller
a. Remove the ground cable by re-
moving the two screws 5.
b. Remove the Feed Roller by re-
moving the gear and ADF bear-
ings.
c) Scan Roller
Remove the Scan Roller by re-
moving the gear and ADF bear-
ing.
d) Exit Roller
Remove the Exit Roller while
spreading and holding up the part
of the fixing hooks.
Note: Be careful as not to break the shaft of the
Exit Roller when removing.
(2) Reassembly procedure
Reverse the disassembly procedures.
Separation Rubber
(FX-050VP-C4-011)
ADF bearings
Gear
Ground cable
Screw 5
Screw 5
Feed Roller
(FX-050VP-C4-011)
ADF bearings
(FX-050VP-C4-011)
Exit Roller
Fixing hooks
Gear
