A3.2.14 M17 Circuit Diagram (Page 15/17)
1. Block diagram
The circuit diagram shown on page 15/17 consists of the following connector:
•
Connector CN13 that provides an interface between M17 board and optional memory board.
• Connector CN12 and CN17 that provides an interface between M17 board and CTR (PC
interface) board.
Figure A3.2.20 shows the interface between M17 and memory board.
Figure A3.2.21 shows the interface between M17 and PC interface board.
Note 1: One of 1 Mbyte or 2 Mbyte memory board can be added to the memory capacity for
OKIFAX 5500/5600.
1M byte for OKIFAX 5200/5300.
IC3
IC4
DRAM
AD00 to AD07 MAD00 to MAD07
MA00 to MA18 A00 to A18
WRL-N
RD-N
MWR
MRD-N
5VB
0V
5V
0V
CPU
IOGA
MEM (option) M17
CN1 CN13
B12
A11
A13, B13
A5, B5, A18,
IC2
IC5
IC6
PCS1-N to PCS4-N
PSREAD-N
A20, A21
B19, B20
A19
PCS1-N to PCS3-N
PSRD-N
B18

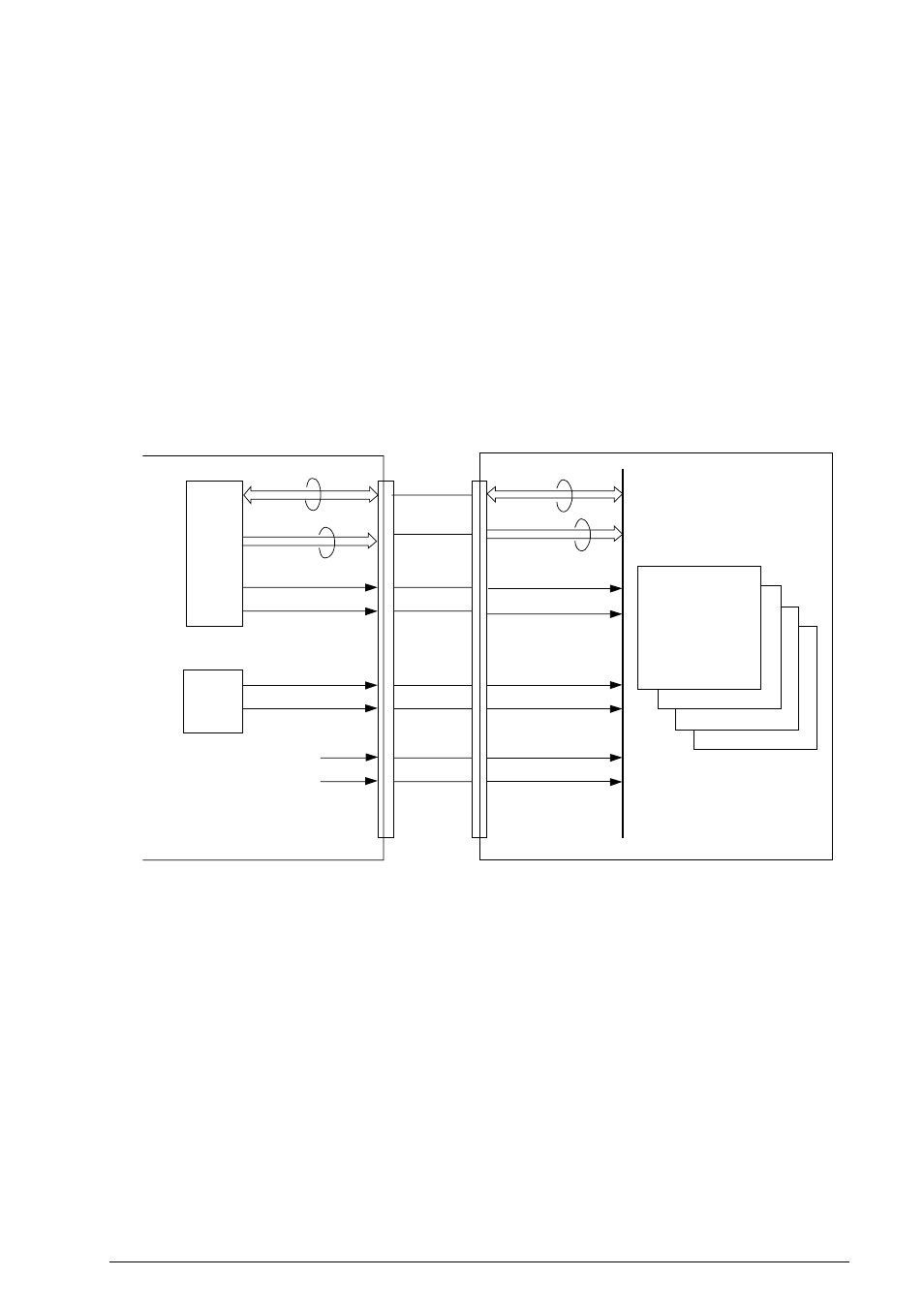

Figure A3.2.20 Interface between M17 Board and Memory Board (option)
