Oki B4100 User Manual
Page 523
40055101TH Rev.4
523 /

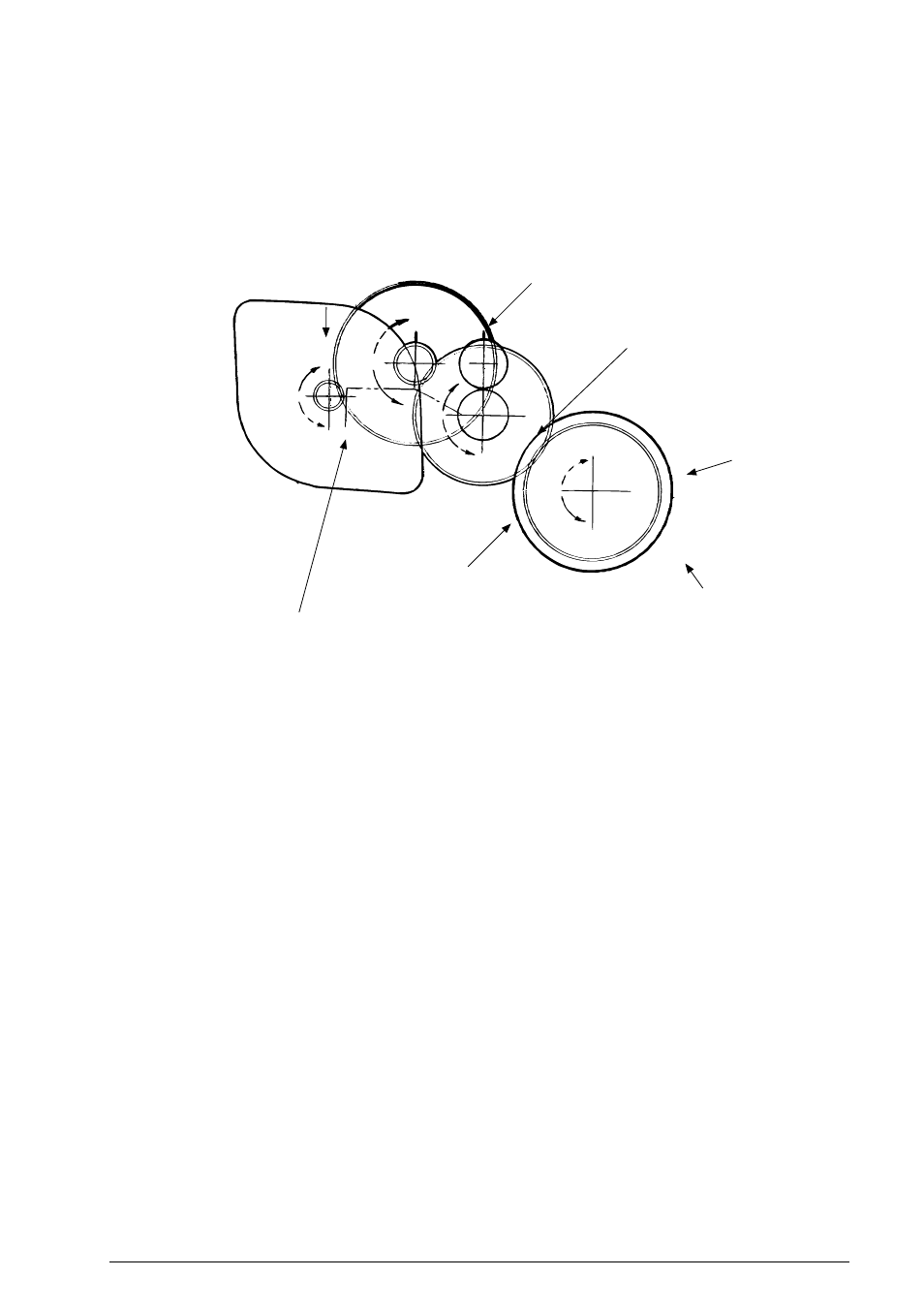

a
b
Idle gear
Resist roller
Hopping roller
Hopping gear
Resist gear
Motor gear
Turning the resist motor in the "a" direction drives the hopping roller. Turning the resist motor in
the "b" direction drives the resist roller. The resist gear and hopping gear contain one-way clutch,
so that turning each of these gears in reverse direction will not be transmitted to the corresponding
roller.
Resist motor
B2.2
Description of Print Operations
B2.2.1 Process Operations
1)
Hopping and feeding
Hopping and feeding are affected by a single resist motor in the mechanism shown below.
