4.1.3.18 Paper Sensor E, Paper Sensor Exit and Toner Sensor Assembly
(1) Disassembly procedure
a) First, carry out procedure up to the point
of the 4.1.3.2 (ID Unit, Cover-Rear, Cover-
NCU and Cover-MAIN).
b) Dismount the high-voltage power supply
board. (See Section 4.1.3.10)
c) Dismount the paper holder assembly.
(See Section 4.1.3.11)
d) Dismount the heat assembly.
(See Section 4.1.3.15)
e) Dismount the drive shaft E.
(See Section 4.1.3.14)
f) Dismount the paper sensor E.
g) Dismount the paper sensor exit.
h) Dismount the toner sensor assembly.
(2) Reassembly procedure
Reverse the disassembly procedures

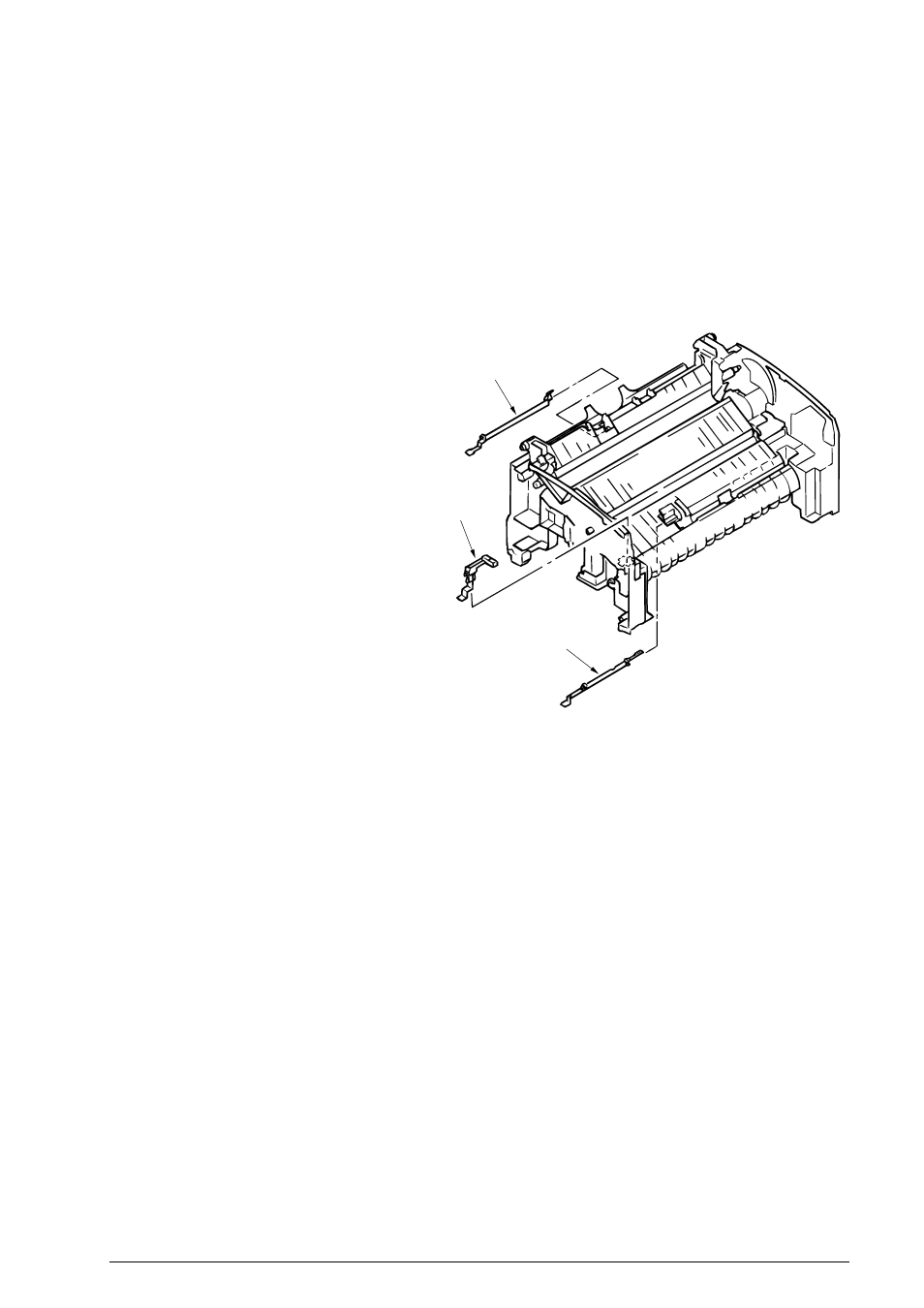

Paper sensor exit
Toner sensor
assembly
Paper sensor E
(CP4.1 Fig. 34)
