40055101TH Rev.4 362 /
(3)
2. The unit configuration of the OKIFAX 5000 series is as follows:
(4)
(5)
Cabinet Assembly
Control Panel
Assembly
Paper Guide
Assembly
Scan unit
Option Telephone
Base Assembly
Printer Assembly
(2)
(1)
(6)
(9)
(8)

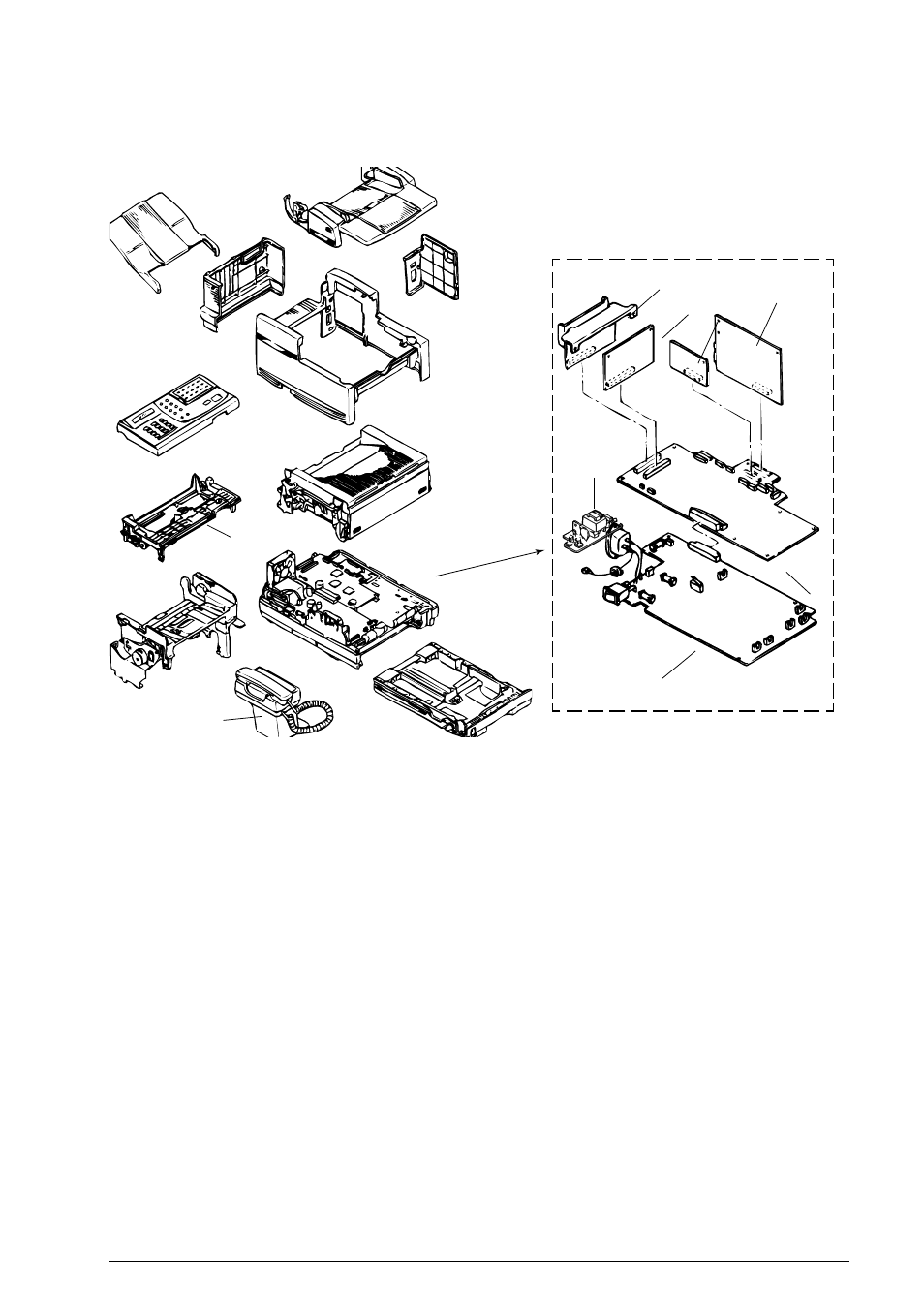

Figure A.1.1.2 Unit Configuration of OKIFAX 5000 Series
(1) Main control board (OKIFAX 5500/5600: M17 for ODA/M17-2 for INT'L)
(OKIFAX 5200/5300: M17-3 for ODA/M17-4 for INT'L)
(2) Modem board (MODEM): OKIFAX 5500/5600 only
(3) Network control unit (NCU)
(4) PC interface board (CTR): option
(5) Memory board (MEM): option
(6) Power supply unit (1VP: 120V, 2VP: 230V)
(7) Power supply unit (SUB POW)
(8) Operation panel board (05WH)
(9) Optional board
•
Telephone interface board (TEL)
• NCU-TEL interface board (NTIF)
• Ten-key board (10KY)
• Hook board (HOOK)
(7)
