40055101TH Rev.4 192 /
4.2.3.5 Resist Motor, Drum Motor, Release Guide Assembly, Manual Guide Assembly, Stacker Cover,
Fusing Unit
(1) Disassembly procedure
• First, carry out the disassembly proce-
dure up to the point of the Scanner Unit
Assembly removal (Refer to Sub-sec-
tion 4.2.3.4.)

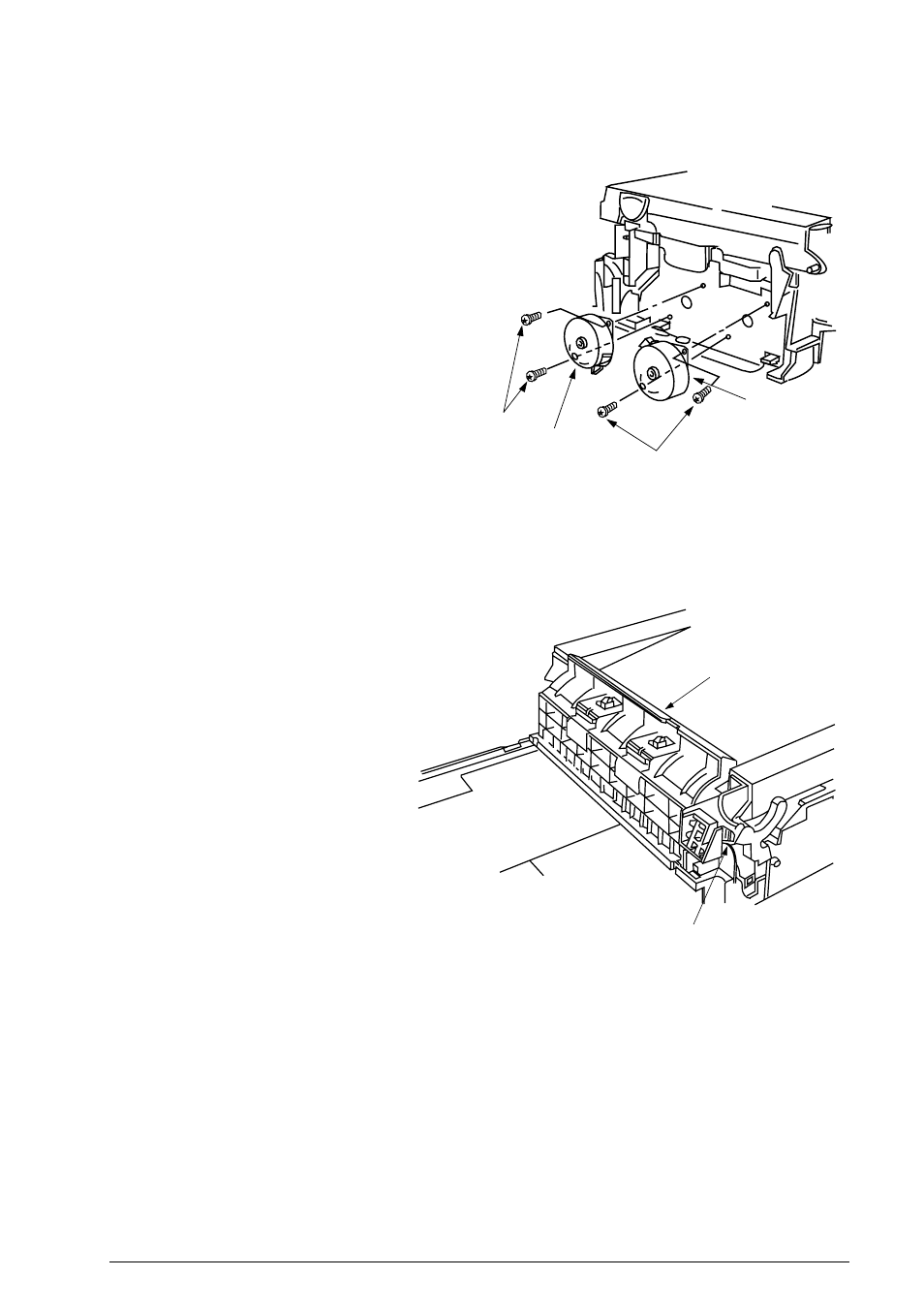

1) Resist Motor and Drum Motor
a) Remove the Resist Motor by re-
moving the two screws 1.
b) Remove the Drum Motor by re-
moving the two screws 2.
2) Release Guide Assembly
a) Remove the Release Guide As-
sembly by removing the Release
Spring.
Screw 1
Resist Motor
Screw 2
Drum Motor
(FX-050VP-C4-018)
Release Guide
Assembly
Release Spring
(FX-050VP-C4-019)
