6. CLEANING AND MAINTENANCE
6.1 Replacement of Consumable Parts
The user (or service personnel) is required to replace the following items as consumable parts.
(1) User side
(2) Service personnel side

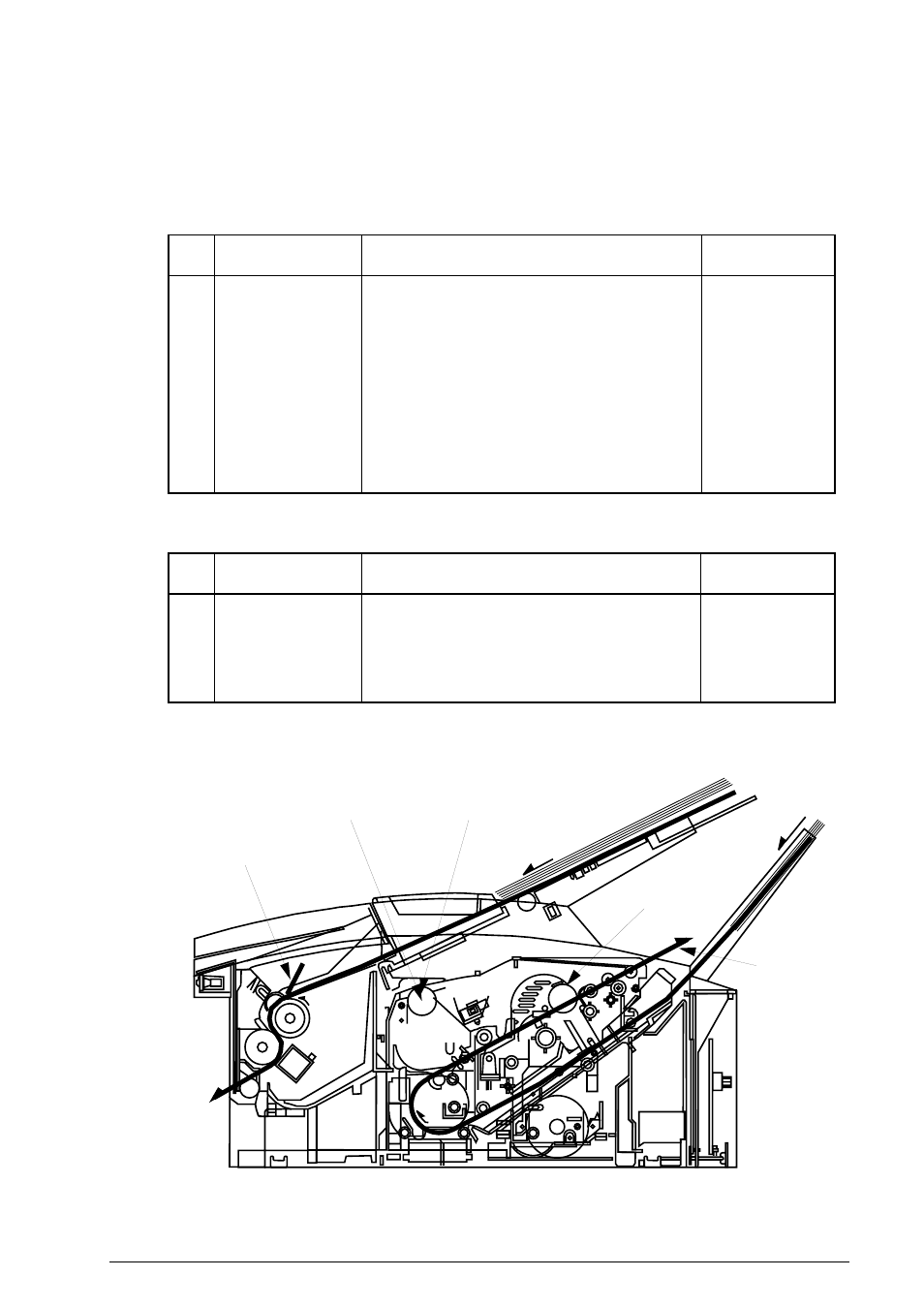

Figure 6.1.1 Consumable Parts for OKIOFFICE44/OKIFAX 4100
Document
Paper
(3) Fuser unit
Paper exit
ID unit
(4) Separation rubber
(1) Toner cartridge
(2) I/D (image drum) unit
1 Toner Cartrige
2 I/D Unit
(Image drum unit)
Expected Use Before Reference Item No.
No. Part name
Replacement in Fig.6.1.1
1250 sheets/cartrige for OKIOFFICE44/OKIFAX
4100
2500 sheets/cartrige for OKIFAX 5000 series
(ITU-T document sample No.1)
(For the second or later cartridge to a new I/D Unit)
* The first toner cartridge installed in a new I/D unit
will have a decreased yield.
4,500 sheets: 1 page/job, 8,000 sheets: 3 page/job
for OKIOFFICE44/OKIFAX 4100
11,000 sheets/unit for OKIFAX 5000 series
(1)
(2)
1 Fuser Unit
2 Separation Rubber
Expected Use Before Reference Item No.
No. Part name
Replacement in Fig.6.2.1
180,000 sheets for OKIFAX5000 Series.
30,000 sheets for OKIOFFICE44/OKIFAX4100.
The Separation Rubber will not require replace-
ment for at least 30,000 documents fed.
(3)
(4)
