4) Developing
Toner is attracted to the electrostatic latent image on the EP (image) drum surface to convert it
into a visible toner image. Developing takes place at the contact between the EP (image) drum
and the developing roller.
1 As the toner supply roller rotates while rubbing on the developing roller, a friction charge
is generated between the developing roller and the toner, allowing the toner to be attracted
to the developing roller. (The developing roller surface is charges positive and the toner,
negative.)
Doctor blade
Toner supply roller
-300V
-750V -100V -750V -750V
Developing roller
Toner
Image drum
-100V
Exposed
part
Exposed
part

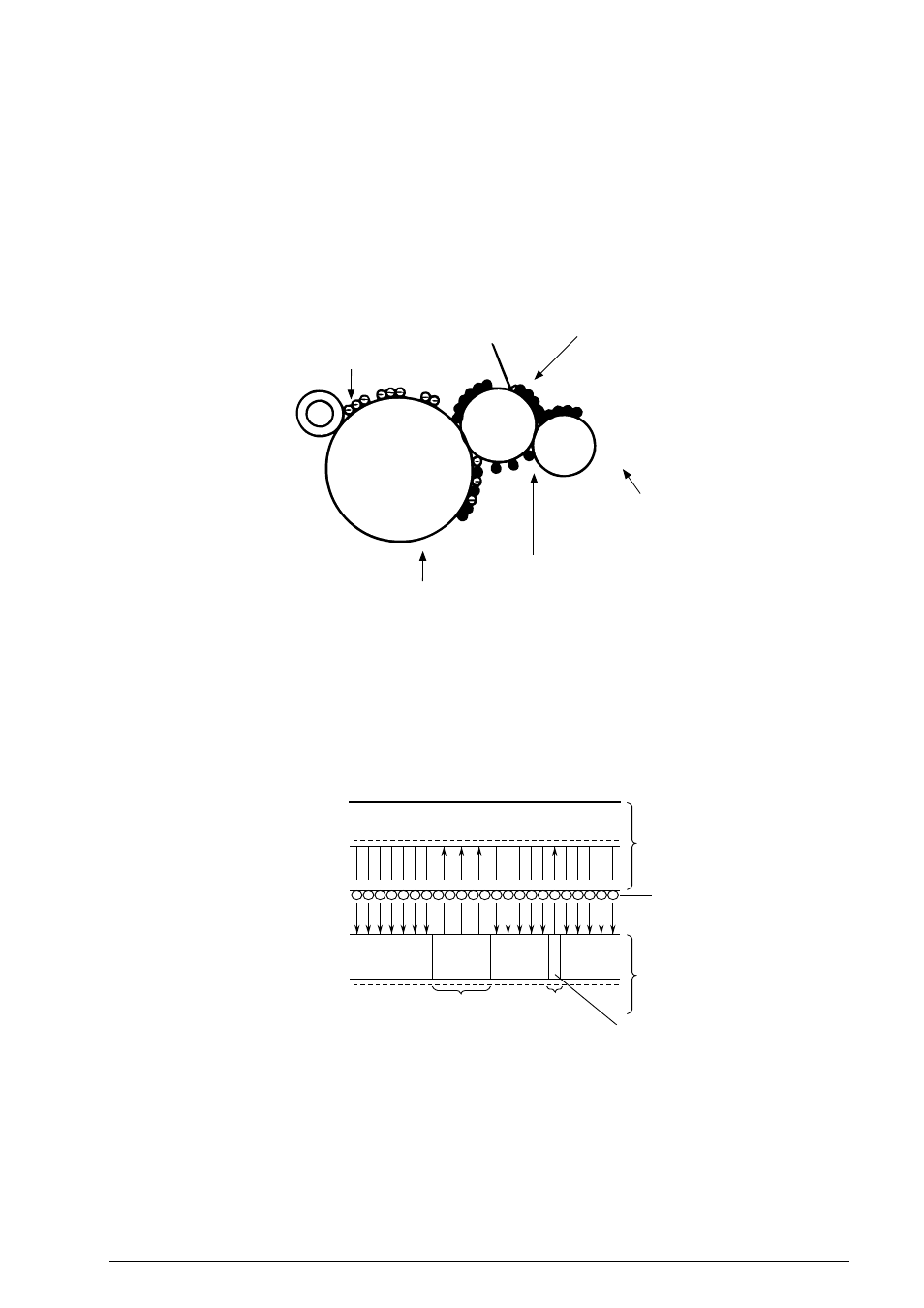

An illustration of activities at the contact point of the
image drum surface and the developing roller (arrow
marks denote the direction of the electric field).
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+ + + + + + + + + + + + + + + + + + + + + + +
2 The toner attracted to the developing roller is scraped off by the doctor blade, forming a
thin coating of toner on the developing roller surface.
3 Toner is attracted to the exposed part (low-potential part) of the EP (image) drum at the
contact between the EP (image) drum and the developing roller, making the electrostatic
latent image visible.
Charge roller
EP drum
Developing roller
