40055101TH Rev.4 134 /

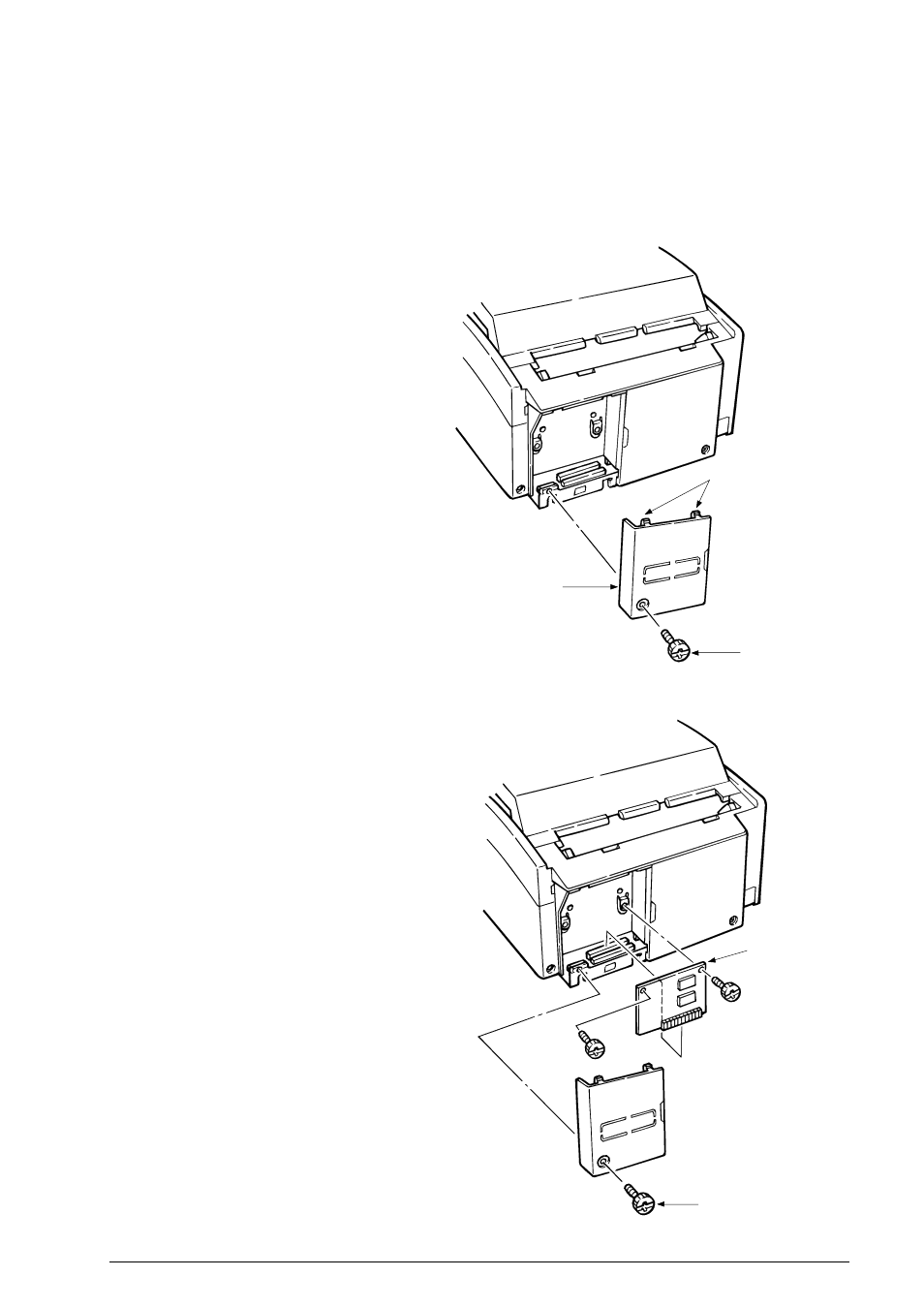

Fig. C.1.1
Fig. C.1.2
Cover-Rear
Fixing hook
Screw 1
Board-Memory
Screw 1
1. Instllation of the memory board
• In OKIOFFICE44/OKIFAX 4100, MEM memory board can be mounted on to the connector CN13 of
R44 board.
• In OKIFAX 5000 series, MEM, 1 or 2MB for OKIFAX 5000 series memory board can be mounted on
to the connector CN13 of M17 board.
(1) In case of OKIOFFICE44/OKIFAX 4100
Remove Cover-rear
Remove the Cover-rear by remov-
ing the screw 1.
Install Memory Board:
First, install the memory board on
to the connector CN13 of R44 board,
and then tighten the two screws to
the separation plate.
