40055101TH Rev.4 229 /
; Q ; Q ; Q ; Q ; Q
CED
NSF
CSI
DIS
(04)
(02)
(01)
RX
(Receiver)
Ringing signal
TX
(Transmitter)
Dialling
; Q
TSI
NSS
(C2)
(C4)
Training
TCF
CFR (21)
Training
FAX MSG.
RTC
PPS•EOP (FD,F4)
MCF (31)
DCN (DF)
; Q
: Preamble
4. Analysis from the data
The printed out data permits to analyze G3 facsimile communication protocol signals between two

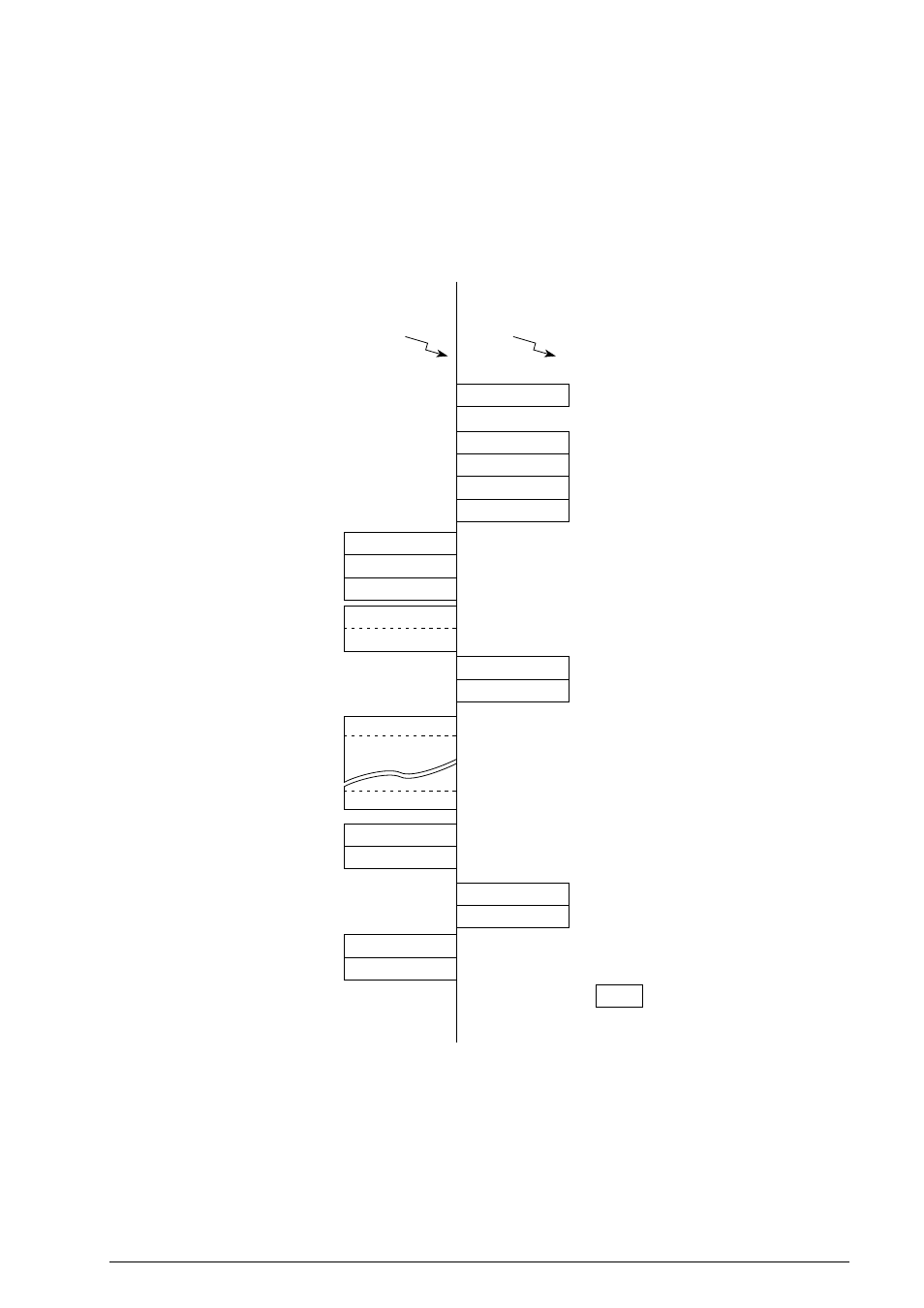

facsimile machines. Figure 6.13.2 shows the result of an analysis on the printed data referring to
Figure 6.13.1 (Protocol dump data).
Figure 6.13.2 Result of Analysis (Example)
