40055101TH Rev.4 167 /
(CP4.1 Fig. 22)
(CP4.1 Fig. 21)

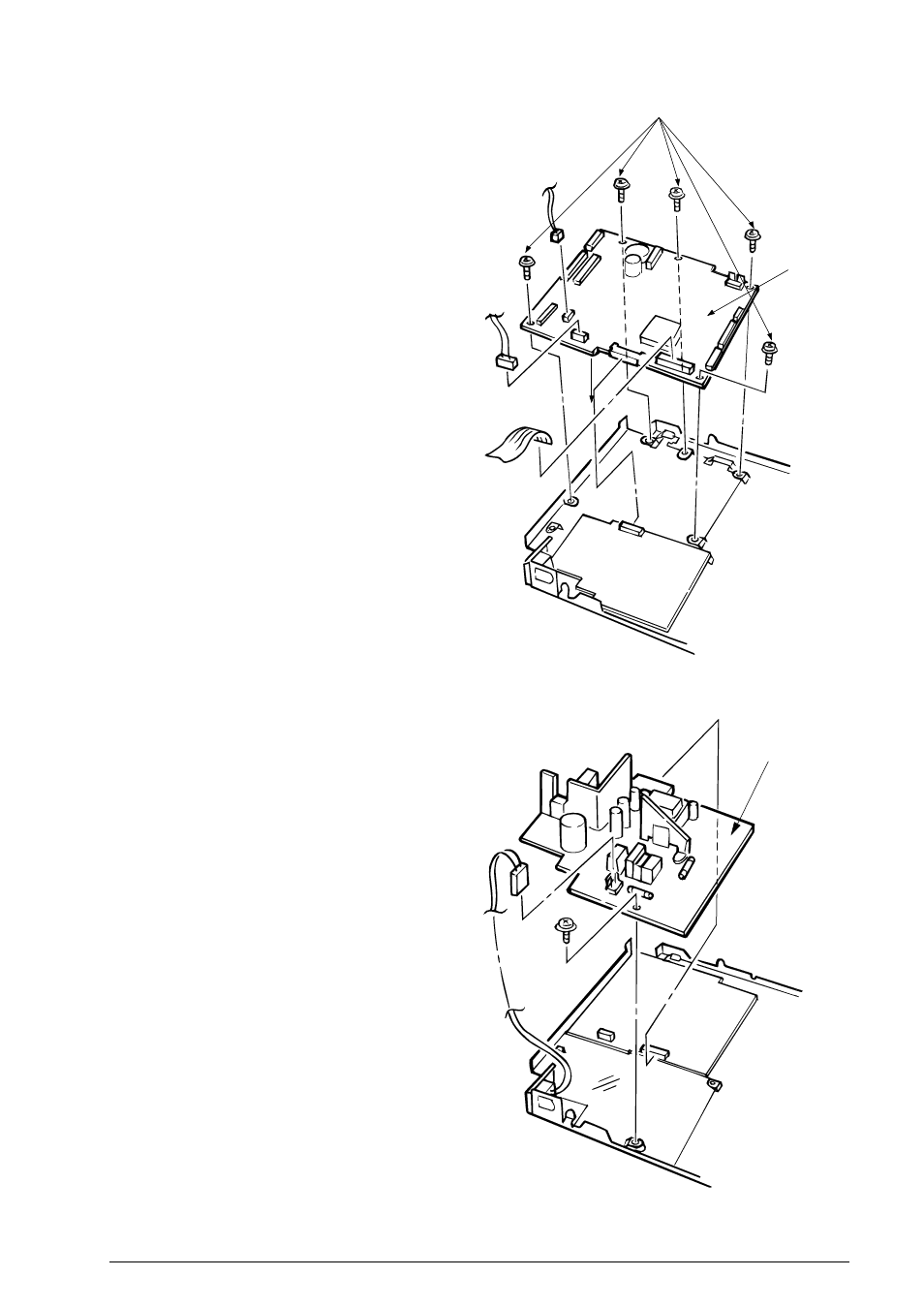

4.1.3.6 Board-R44, OKIOFFICE 44/OKIFAX 4100 Power Supply Unit
(1) Disassembly procedure
a) First, carry out the disassembly procedure
up to the point of the 4.1.3.2 (Cover-Rear,
Cover-Main etc.).
b) Board-R44:
Disconnect the all connectors.
c) Remove the Board-R44 by removing the
five screws.
d) OKIOFFICE 44/OKIFAX 4100 Power
Supply Unit:
Disconnect the all connectors.
e) Remove the OKIOFFICE 44/OKIFAX
4100 Power Supply Unit by removing
the screw.
(2) Reassembly procedure
Reverse the disassembly procedures.
Power Supply Unit
Screw
Board-R44
