40055101TH Rev.4 140 /

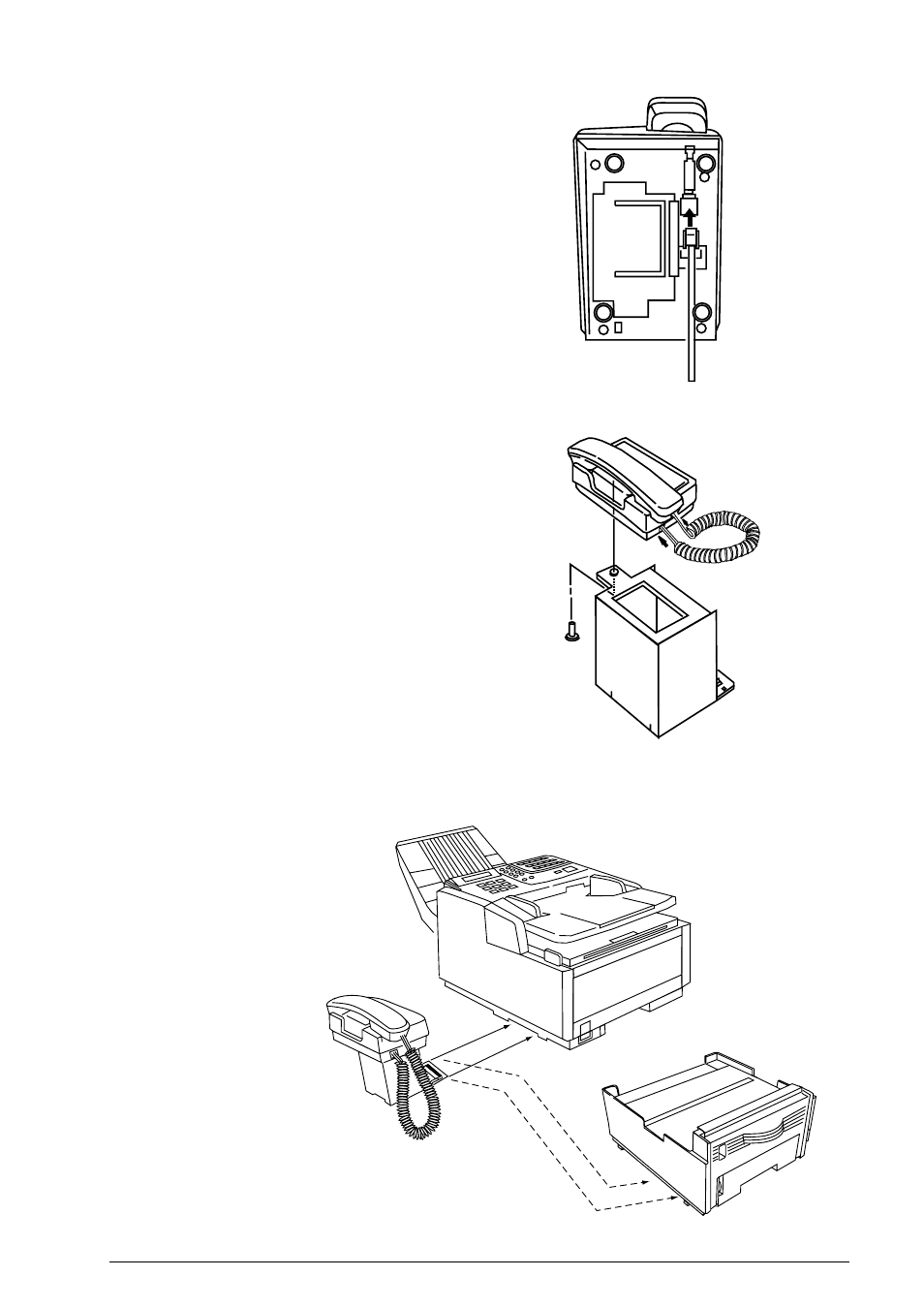

Fig. C.3.3
Fig. C.3.4
Fig. C.3.5
(4) After installing the connection cable to
the telephone set, extend the connection
cable like Fig. C.3.3.
(5) After installing the cradle assembly to
the telephone set, fix the screw like Fig.
C.3.4. (OKIFAX 5000 series)
(6) Install the telephone assembly on the
facsimile transceiver unit. In this case,
cram the telephone assembly into the
position of Fig. C.3.5 by lifting the fac-
simile transceiver unit slightly. When
2'nd tray is mounted on the facsimile
transceiver unit, install the telephone
assembly in the position of Fig. C.3.5.
(OKIFAX 5000 series)
