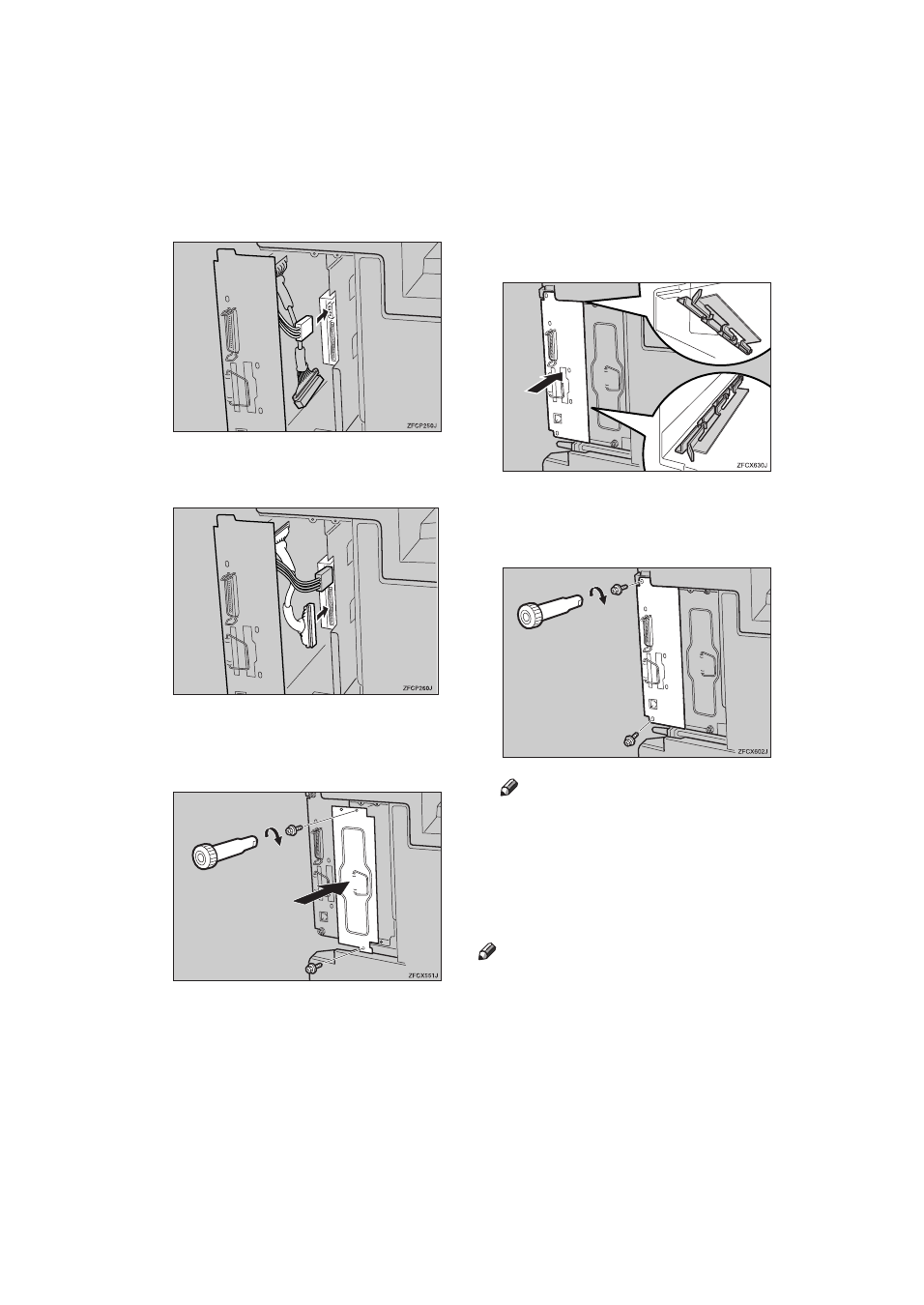

Connect the power cord to the
Printer Hard Disk.
K
Connect the connector to the
Printer Hard Disk.
L
Lock the Printer Hard Disk cover
with the two screws you removed
in step
E .
M
Align the printer board with the
top and bottom rails in the print-
er, and then insert the printer
board slowly until it stops.
N
Lock the printer board with the
two screws you removed in step
D .
Note
❒ Be sure to return the screwdriv-
er to the paper tray after using
it.
The Printer Hard Disk will be for-
matted automatically when the
power is turned on.
Note
❒ Print a configuration page to con-
firm that the Printer Hard Disk is
properly installed. See "Printing a
Configuration Page" in the Printer
Reference on the CD-ROM labeled
"Operating Instructions".
