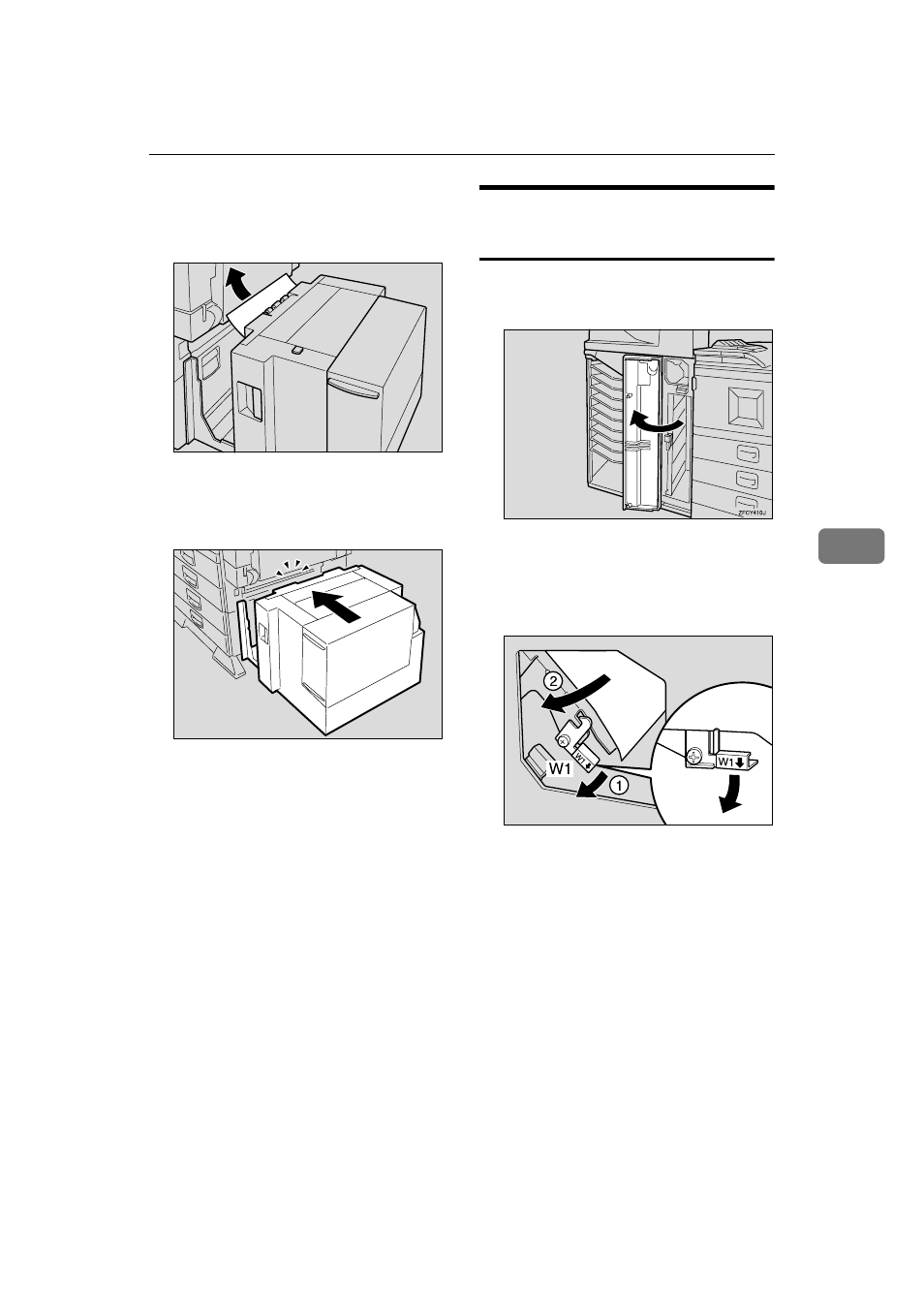

When "remove misfeed w:mailbox" appears, P.87 “when "remove misfeed w:mailbox" appears – Ricoh AP4510 User Manual
Page 161
Removing Misfed Paper
87
5
DDDD
Remove the misfed paper from
the left side of the Large Capacity
Tray RT36.
EEEE
Slide the Large Capacity Tray
RT36 forward to connect it to the
printer.
When "Remove Misfeed
W:Mailbox" Appears
AAAA
Open the front cover of the Mail-
box CS360.
BBBB
Push the blue lever W1 down-
wards to open the cover inside
(
A
A
A
A). Then remove the misfed pa-
per (
B
B
B
B).
CCCC
While pushing the blue lever W1
downwards, return the cover to
its original position.
TAPY170E
TAPP230E
TAPY420E
