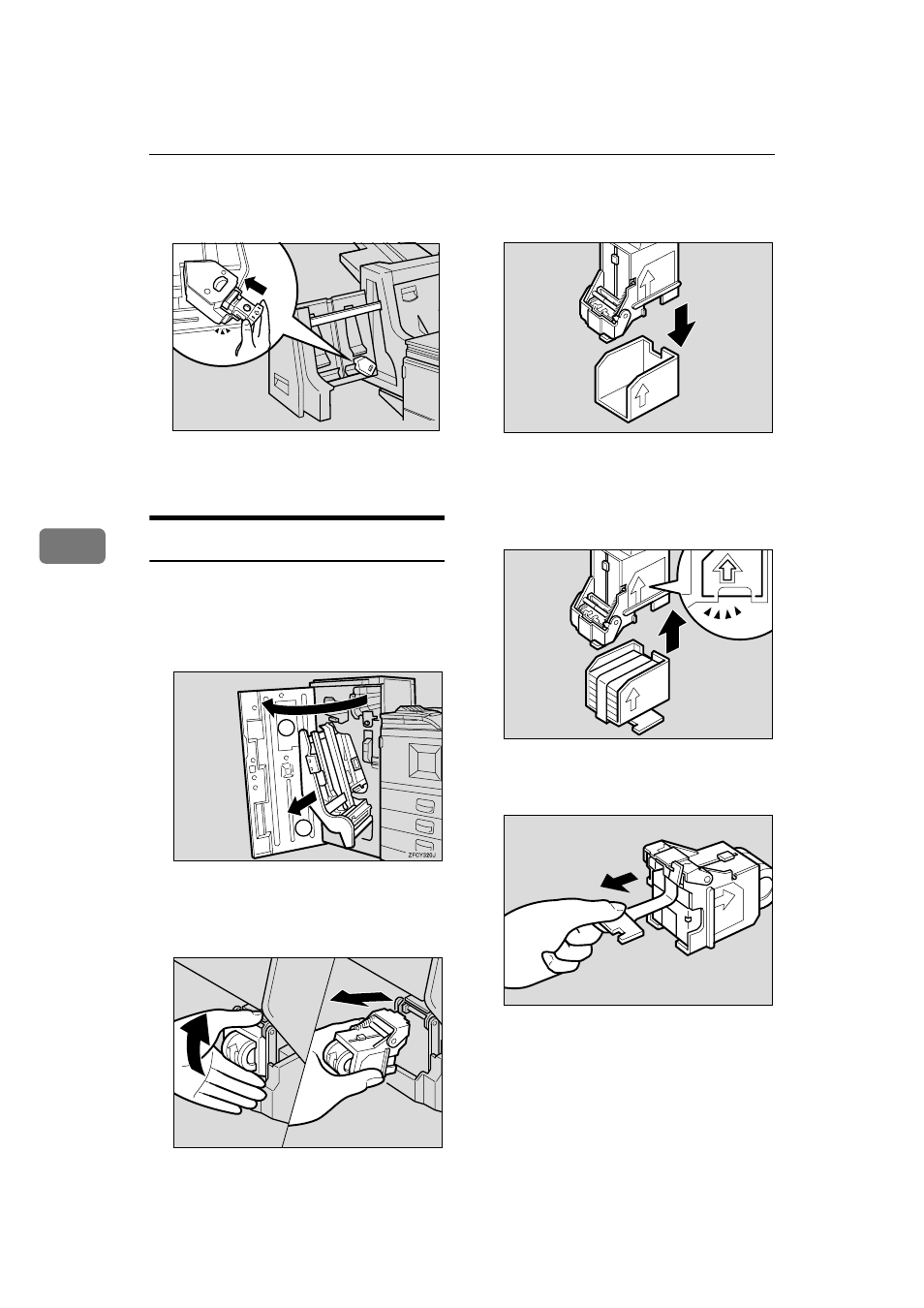

Troubleshooting

92

5

FFFF

Slide the cartridge in until it
clicks.

GGGG

Slide the stack unit into the Fin-
isher SR720.

Finisher SR730

AAAA

Open the front cover of the Fin-
isher SR730 (

A

A

A

A), and then slide

the stack unit out until it stops
(

B

B

B

B).

BBBB

Lift the staple cartridge until it
clicks, and then remove the car-
tridge carefully.

CCCC

Remove the empty refill case
(white).

DDDD

Add a new refill and align the ar-
rows on the refill case and the car-
tridge, and then push the refill
case in until it clicks.

EEEE

Pull out the ribbon from the bot-
tom of the refill case.

TAPY720E

2

1

TAPY330E

TAPY340E

TAPY350E

TAPY360E
