Troubleshooting
86
5
HHHH

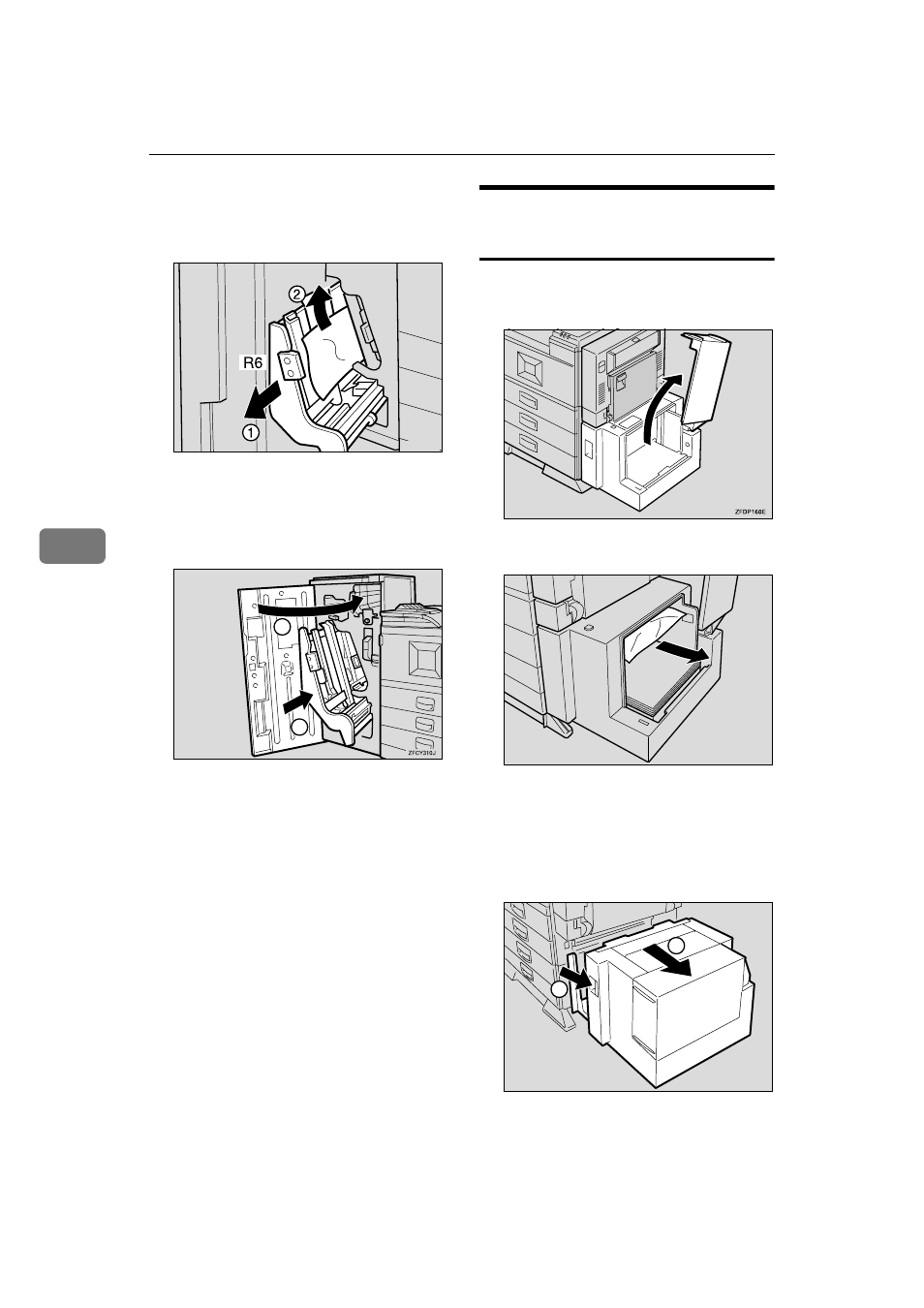

Hold the blue lever R6 and pull
out the stack unit (
A A A A), and then
remove the misfed paper (
B B B B).
IIII
Return the stack unit to its origi-
nal position (
A A A A, and then close
the front cover of the Finisher
SR730 (
B B B B).
When "Remove Misfeed
U:LCT" Appears
AAAA
Open the top cover of the Large
Capacity Tray RT36.
BBBB
Remove the misfed paper.
CCCC
If you cannot remove the misfed
paper in step
BBBB , close the top cov-
er of the Large Capacity Tray
RT36 and pull the lever (
A A A A) to ex-
tend the connecting unit (
B B B B).
TAPY300E
1
2
TAPY160E
1
2
TAPP700E
