Removing Misfed Paper
85
5
BBBB

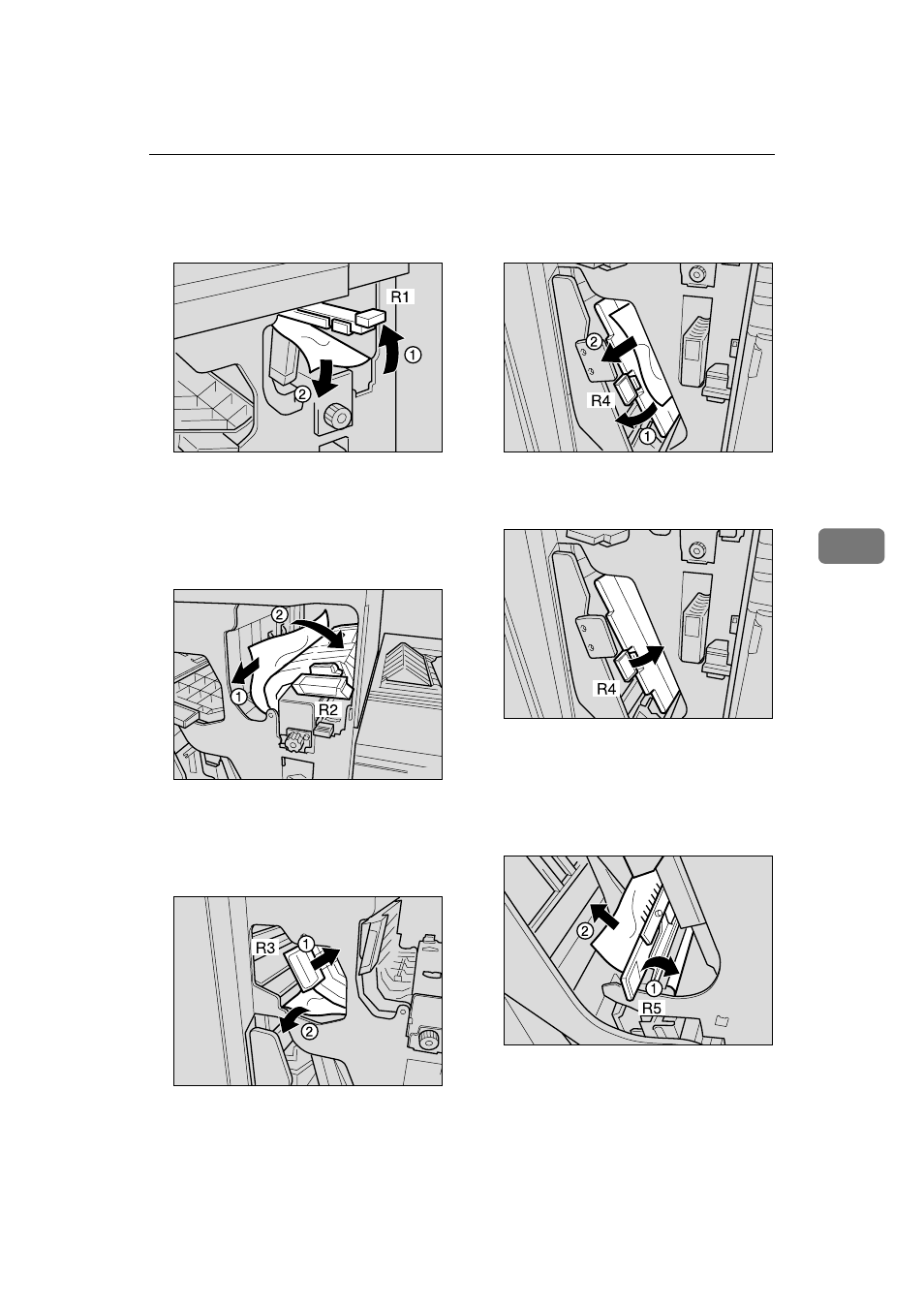

While pushing the blue lever R1
upwards (
A A A A), remove the misfed
paper (
B B B B).
CCCC
If you cannot remove the misfed
paper in step
BBBB , remove the mis-
fed paper (
A A A A) while pushing the
blue lever R2 downwards in a
clockwise direction (
B B B B).
DDDD
While pushing the blue lever R3
upwards in a clockwise direction
(
A A A A), remove the misfed paper
(
B B B B).
EEEE
Push the lever R4 to the left (
A A A A),
and then remove the misfed pa-
per (
B B B B).
FFFF
Return the blue lever R4 to its
original position.
GGGG
If you cannot remove the misfed
paper in step
FFFF , remove it (
B B B B)
while pushing the blue lever R5
upwards in a clockwise direction
(
A A A A).
TAPY250E
TAPY260E
TAPY130E
TAPY270E
TAPY280E
TAPY290E
