Installing Options

EEEE

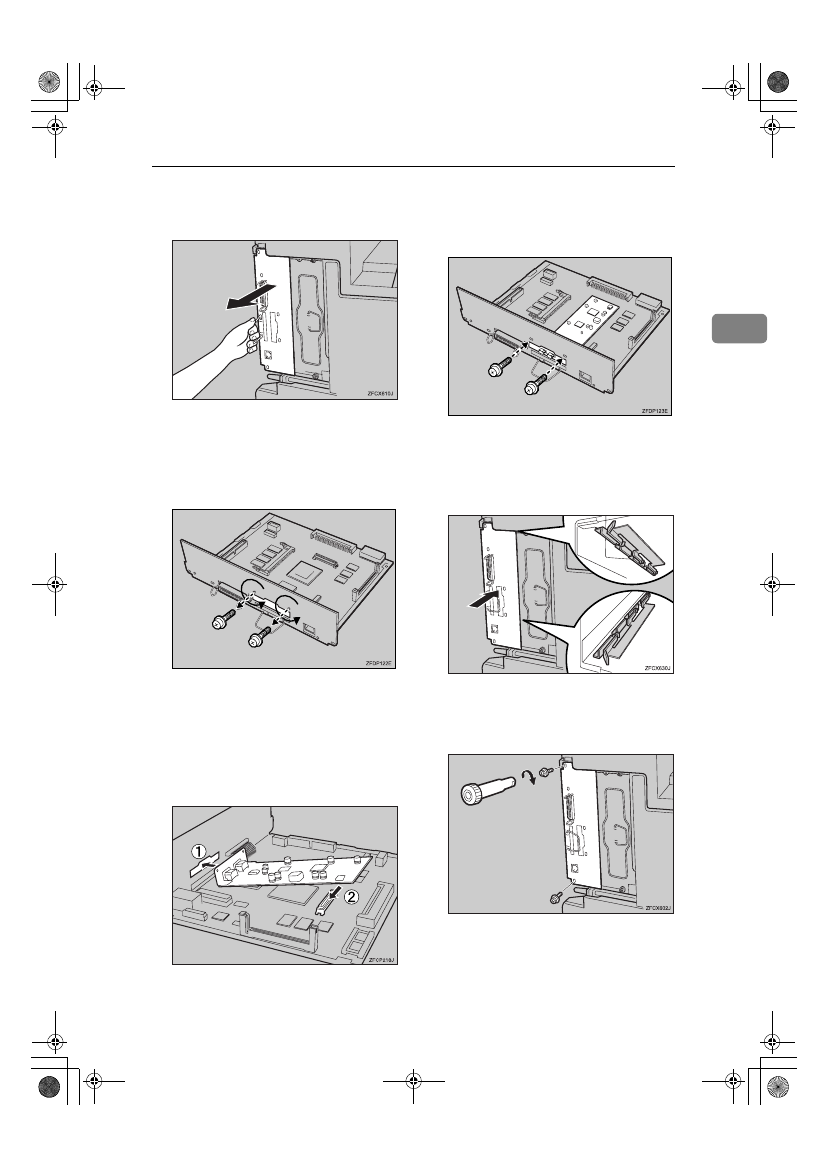

Hold the handle, and carefully
pull out the printer board.

FFFF

Put the printer board on a flat sur-
face.

GGGG

Remove the two screws locking
the 1394 Interface Unit cover.

The screws are needed to lock the
1394 Interface Unit afterwards.

HHHH

Attach the 1394 Interface Unit to
the slot. Confirm that the unit is
firmly connected to the printer
board.

IIII

Lock the 1394 Interface Unit cover
with the two screws you removed
in step

GGGG

JJJJ

Align the printer board with the
top and bottom rails in the print-
er, and then insert the printer
board slowly until it stops.

KKKK

Lock the printer board with the
two screws you removed in step

DDDD
