Loading Paper and Other Media

37

3

BBBB

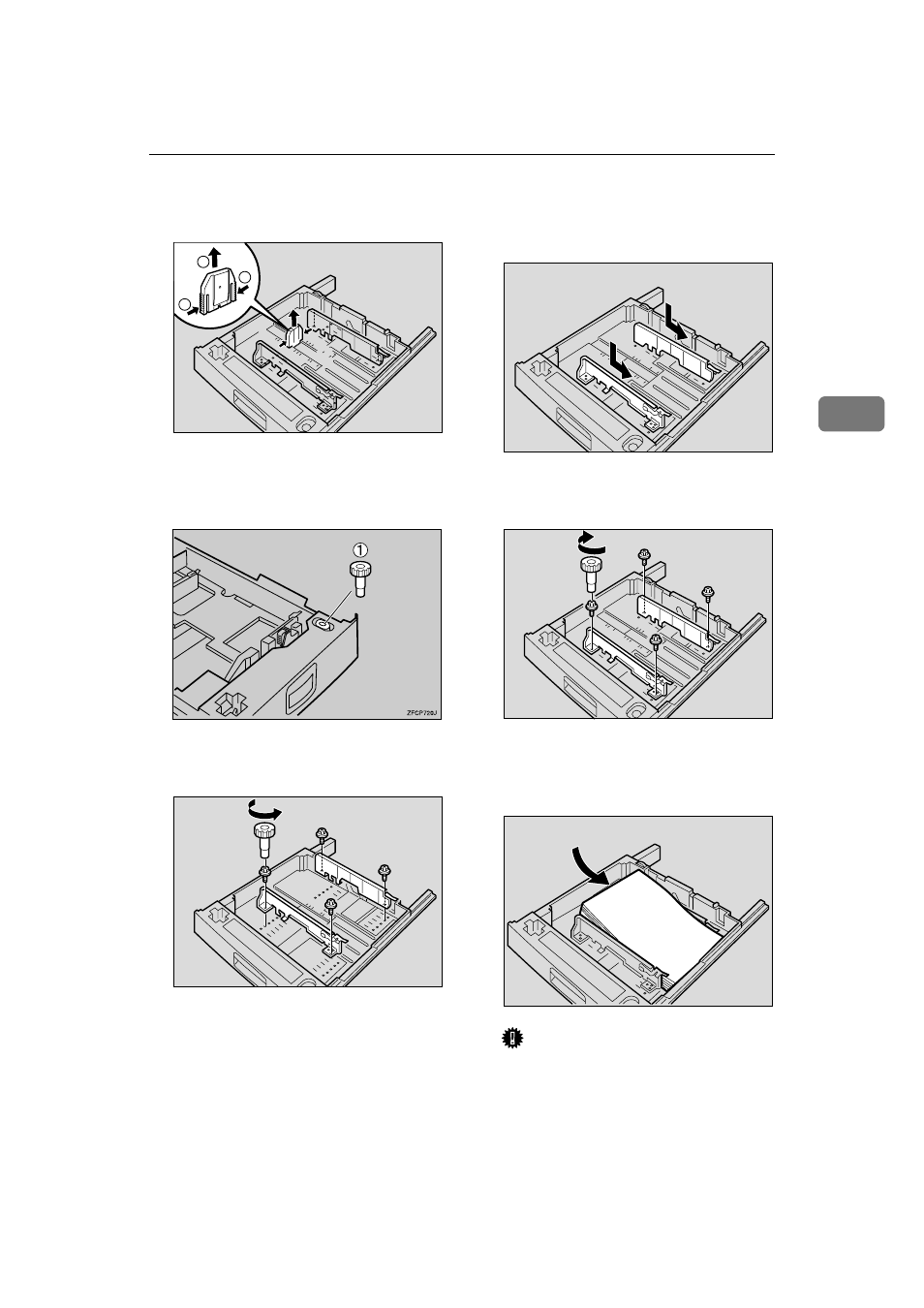

Remove the rear guide by press-
ing the sides of it.

CCCC

Pull the standard paper tray (Tray
1), and then take the screwdriver
(

A

A

A

A) from the tray.

DDDD

Remove the four screws inside of
the tray using the screwdriver.

EEEE

Re-position the side guides to
match the paper size you want to
load.

FFFF

Lock the side guides with the four
screws using the screwdriver.

GGGG

Align all four sides of the paper
stack and load it into the tray with
the print side up.

Important

❒ Confirm that the top of the stack

is not higher than the limit mark
inside the tray.

TAPY063E

1

2

1

TAPY041E

TAPY051E

TAPY062E

TAPY091E
