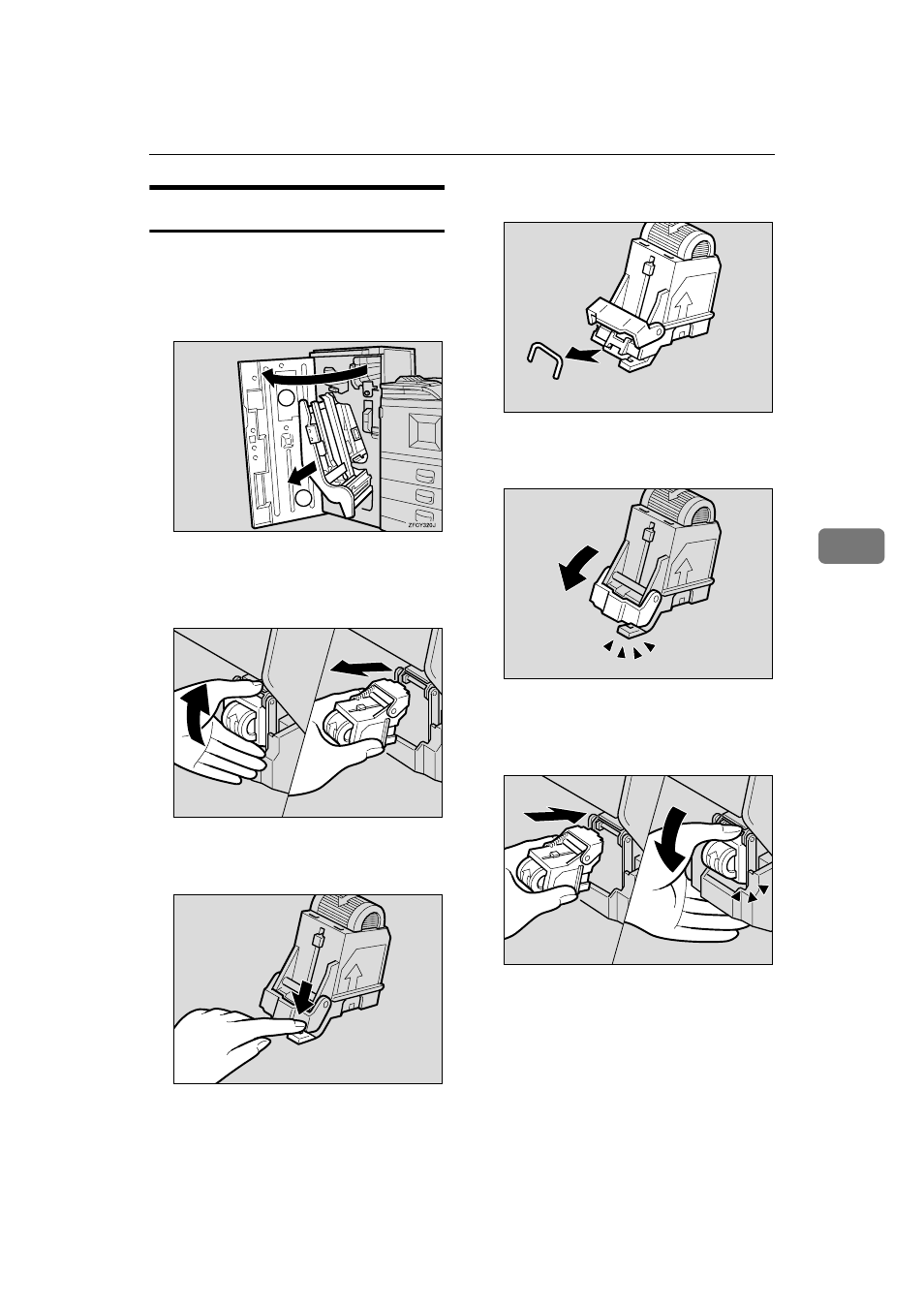

Removing Jammed Staples

95

5

Finisher SR730

AAAA

Open the front cover of the Fin-
isher SR730 (

A

A

A

A), and then slide

the stack unit out until it stops
(

B

B

B

B).

BBBB

Lift the staple cartridge until it
clicks, and then remove the car-
tridge carefully.

CCCC

Press the face plate lock down to
open the face plate.

DDDD

Remove the jammed staples.

EEEE

Close the face plate by pressing it
down until it clicks into place.

FFFF

Reinstall the cartridge, and then
press the cartridge down until it
clicks into place.

2

1

TAPY330E

TAPY380E

TAPY390E

TAPY400E

TAPY370E
