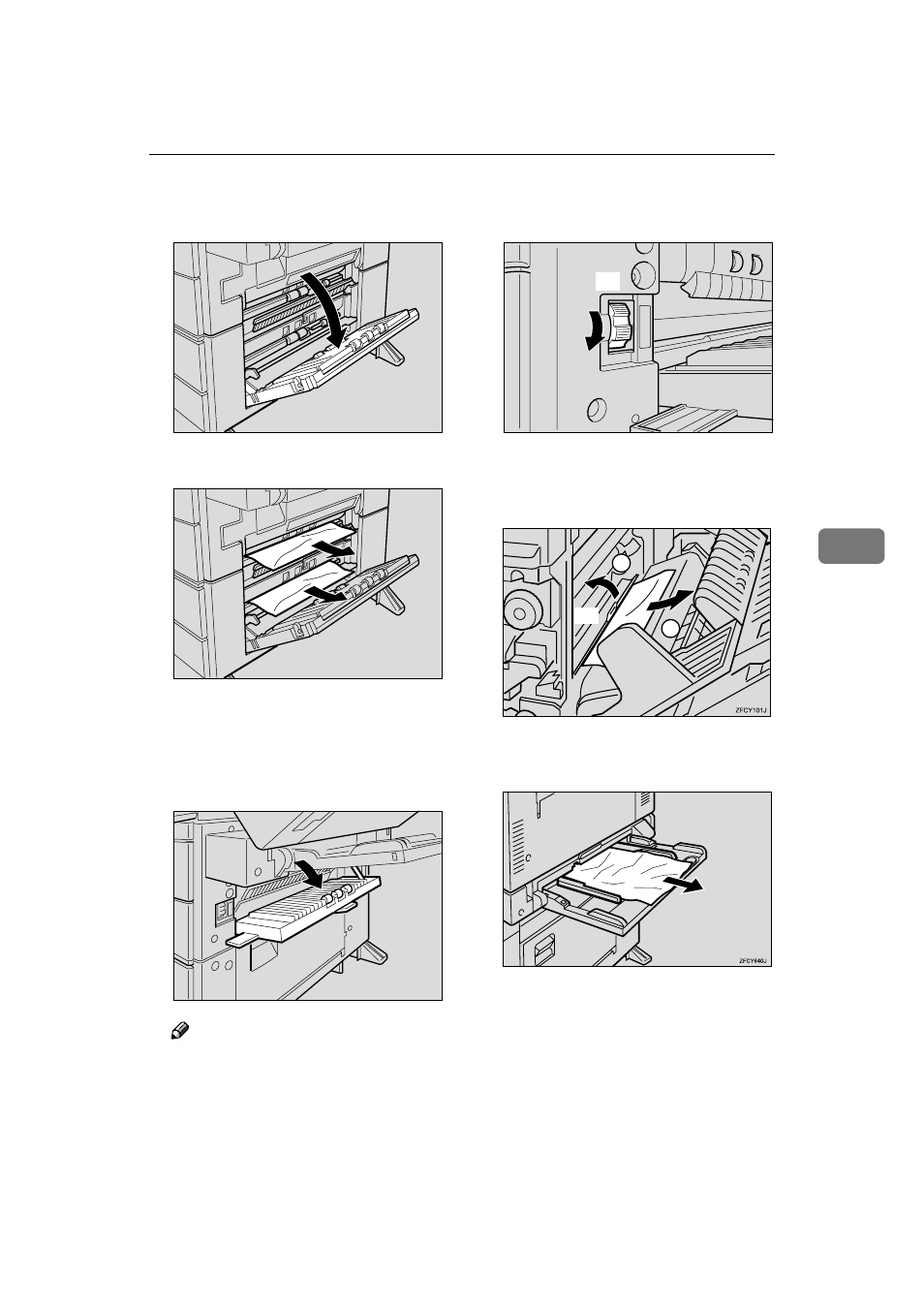

Removing Misfed Paper

81

5

CCCC

Open the lower vertical paper
feed cover.

DDDD

Remove the misfed paper.

EEEE

Close the lower vertical paper
feed cover.

FFFF

Open the upper vertical paper
feed cover.

Note

❒ If your printer is equipped with

the optional Large Capacity
Tray RT36, the upper vertical
paper feed cover is removed.

GGGG

Turn the blue knob A1 down-
wards.

HHHH

While lifting the blue lever A2 in
the right cover (

A

A

A

A), remove the

misfed paper (

B

B

B

B).

IIII

Open the Bypass Tray, and then
remove the misfed paper.

JJJJ

Close the covers in the following
order:
• The upper vertical paper feed

cover

• The right cover
• The Duplex Unit
• The Bypass Tray

TSPY140E

TAPY150E

TAPY110E

A1

TAPY120E

A2

1

2
