Ricoh AP4510 User Manual
Page 29
Installing Options
19
2
DDDD

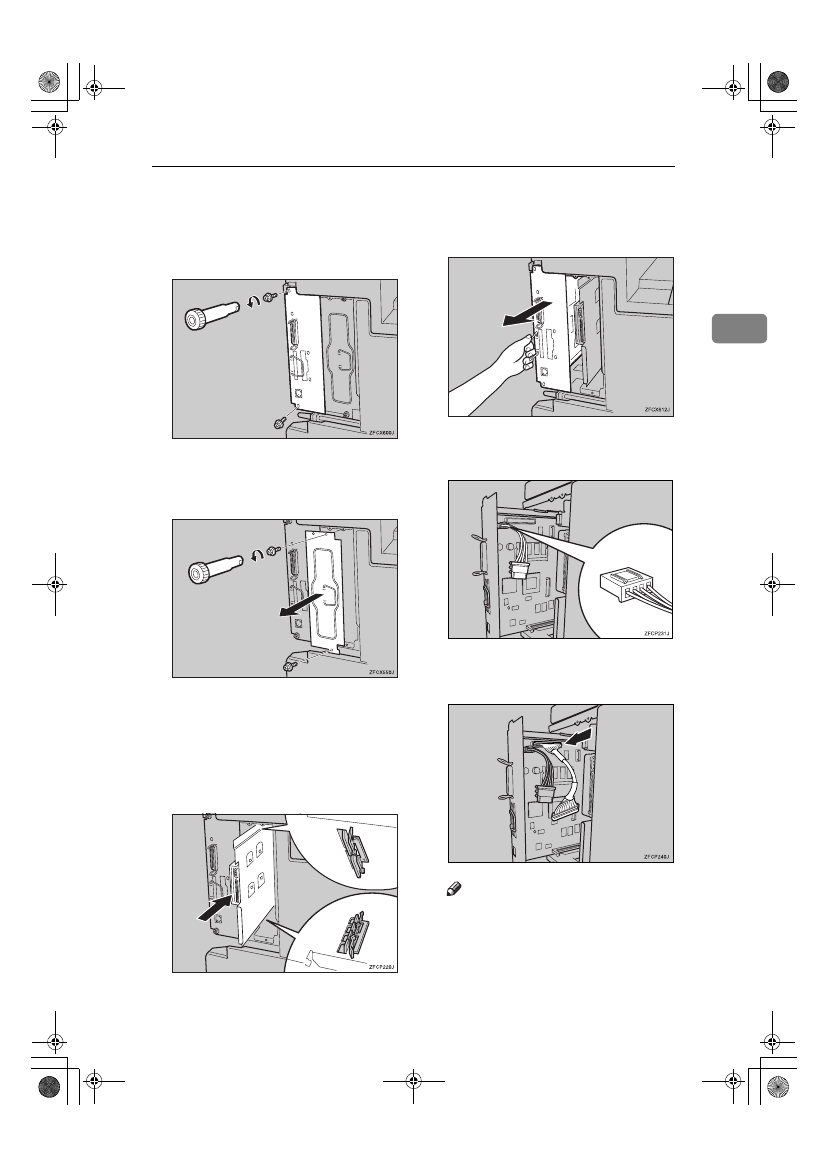

Remove the two screws locking
the printer board.
The screws are needed to lock the
printer board afterwards.
EEEE
Remove the two screws locking
the Printer Hard Disk cover next
to the printer board.
The screws are needed to lock the
cover afterwards.
FFFF
Align the Printer Hard Disk with
the top and bottom rails , and then
insert the Printer Hard Disk slow-
ly until it stops.
GGGG
Hold the handle, and carefully
pull out the printer board half-
way.
HHHH
Connect the bigger plug of the
power cord to the printer board.
IIII
Connect the connector to the
printer board.
Note
❒ Connect either side of the con-
nector.
AP3ENSetup-F-ricoh_FM.book Page 19 Friday, October 5, 2001 2:43 PM
