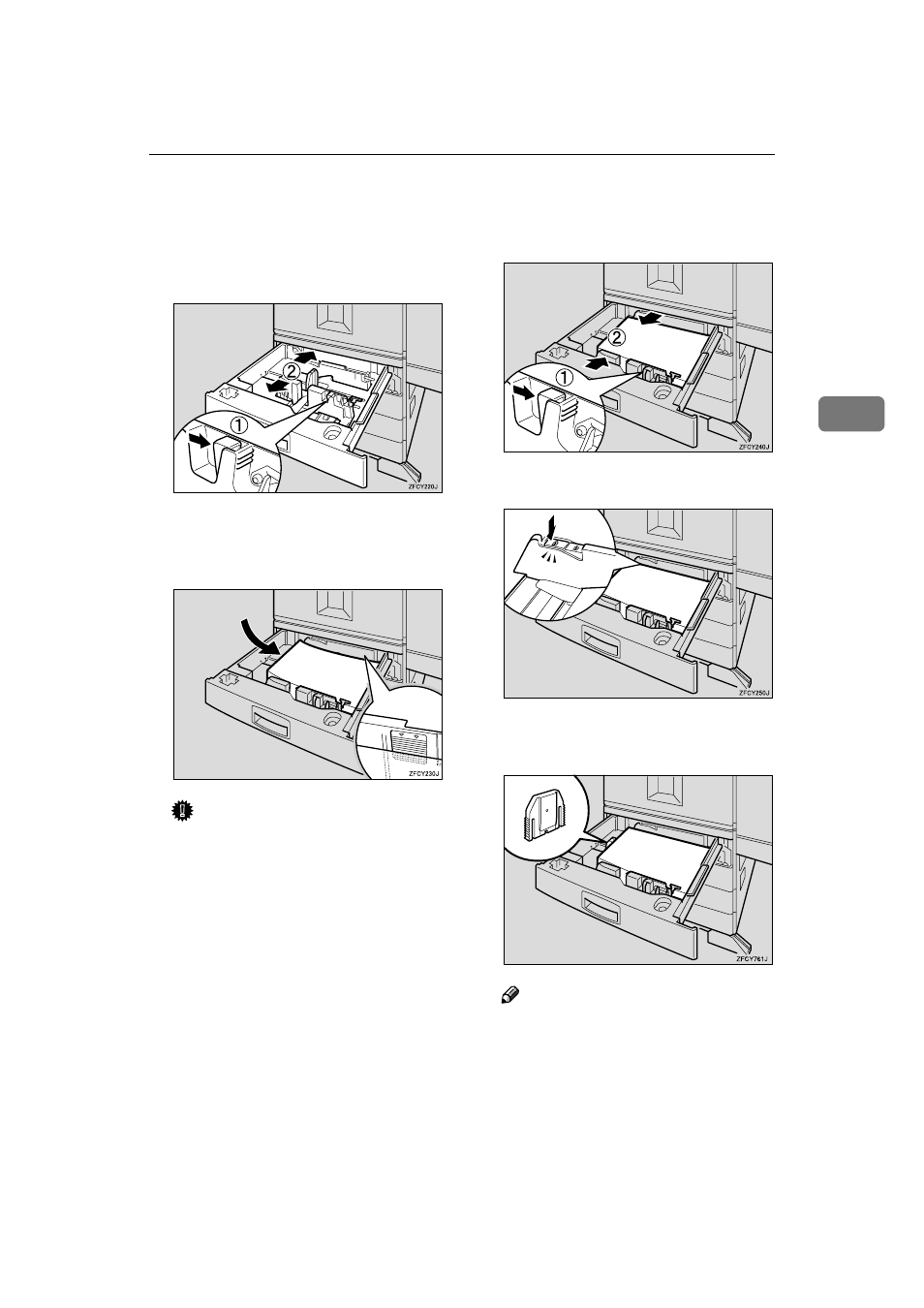

Text mode
Original mode

Loading Paper and Other Media

DDDD

While pressing the green lever of
the side guides, move the side
guides to widen the distance. Re-
fer to the paper sizes on the bot-
tom of the tray.

EEEE

Align all four sides of the paper
stack and load it into the tray with
the print side up.

Important

❒ Confirm that the top of the stack

is not higher than the limit mark
inside the tray.

FFFF

Adjust the side guides to the pa-
per position while pressing the
green lever.

GGGG

Lock the side guides.

HHHH

While lifting the left side of the
paper, attach the rear guide.

Note

❒ The rear guide is not necessary

when 11

× 17 inch paper is load-

ed in the tray. Put it in the hold-
er in the tray.
