Installing Options
16
2
BBBB

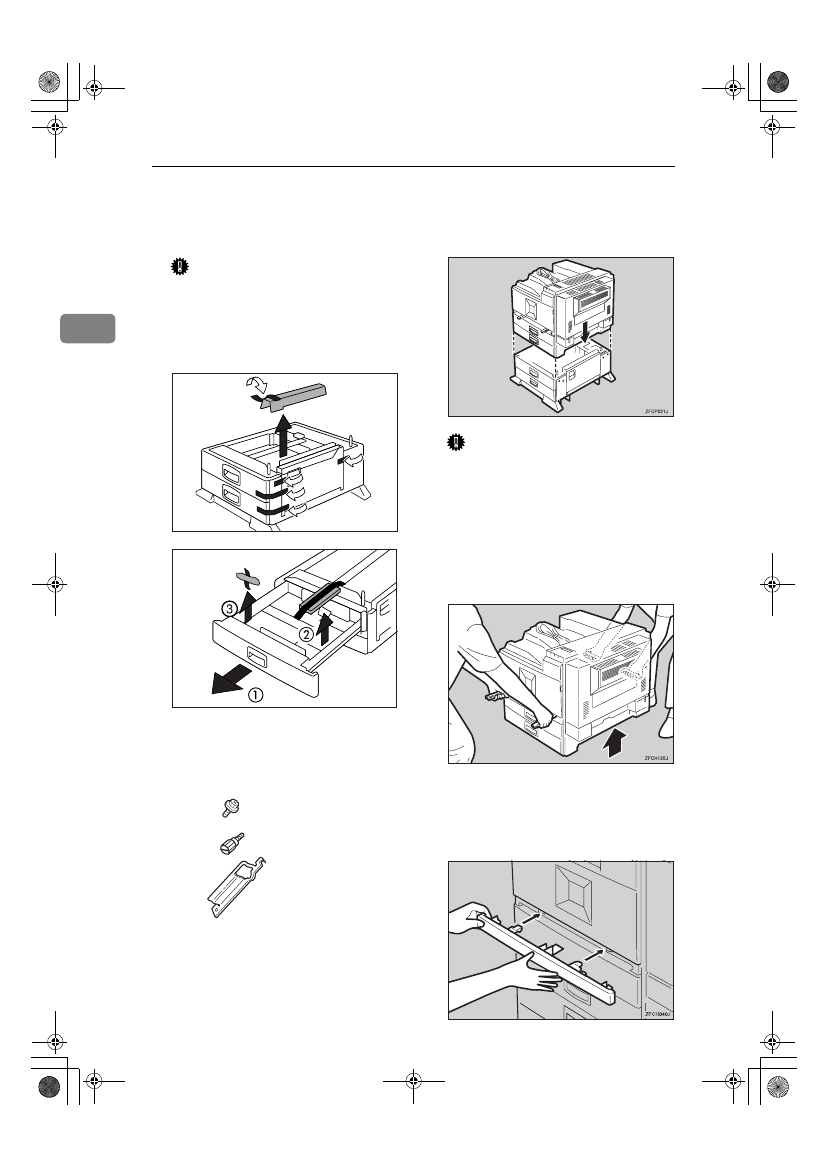

Remove the tape that holds the
Paper Bank, and then remove the
packing material.
Important
❒ Do not remove the tape that
holds the connector cable inside
the connector cover on the back
of the Paper Bank in this step. It
is removed in step
L .
CCCC
Check the contents of the box for
the following items:
1. Screw
2. Knob Screw (Finger type)
3. Lock Plate
DDDD
Align the printer over the Paper
Bank, and then lower it carefully
onto the Paper Bank.
Important
❒ The printer should be held by at
least two people.
❒ When lifting the printer, pull
out the grips from the front of
the printer. One person should
hold the grips on the front and
another person should hold the
grips on the rear.
EEEE
Push the grips into the printer.
Take out the cover inside Tray 2
and attach it between the paper
tray and the front cover.
TAPP801E
TAPP811E
1
2
3
TAPD011E
