GASBOY CFN Series
3-18 03/19/04

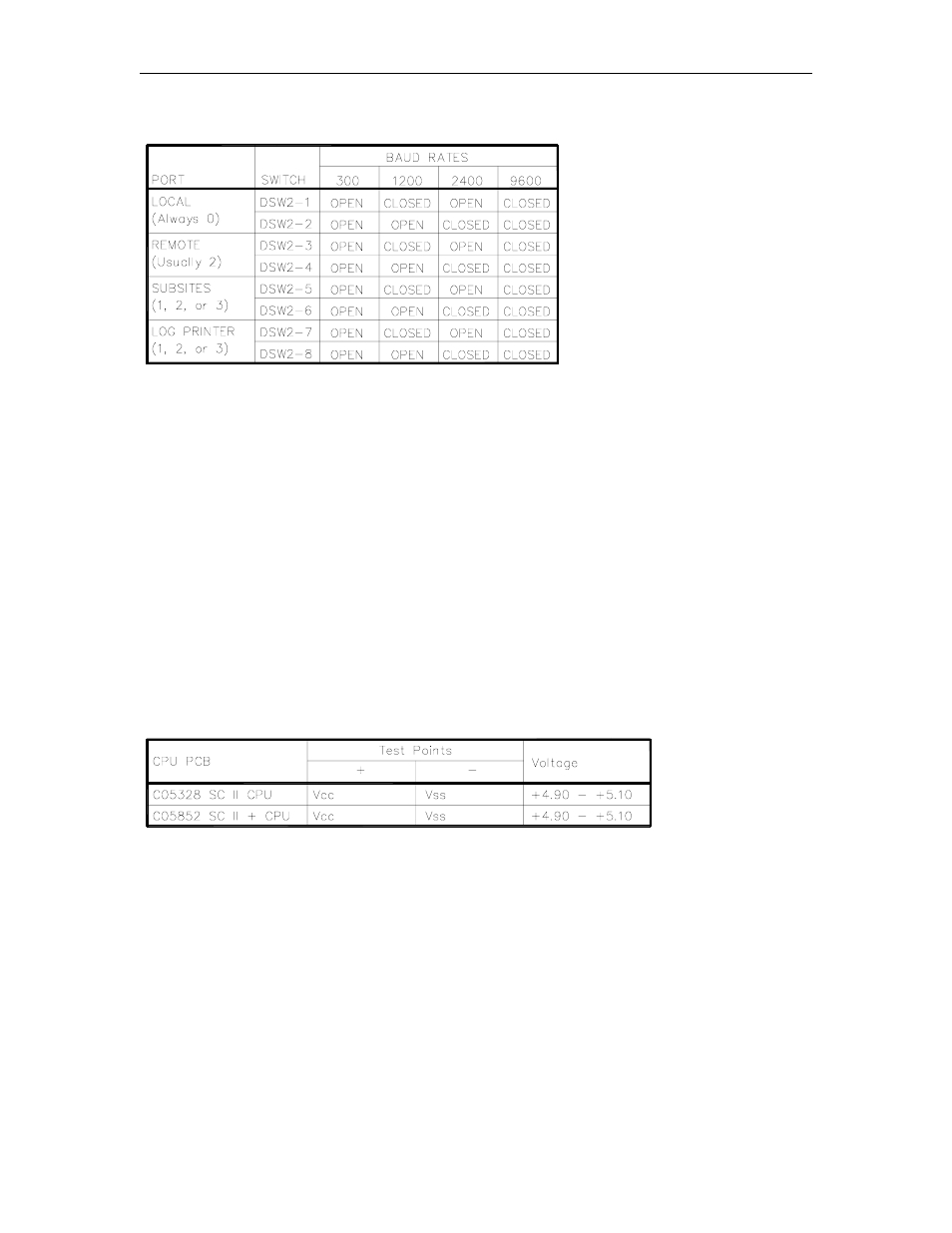

DSW2 - Baud Rates
Manager's Keyswitch
The Manager's keyswitch provides security against unauthorized access to particular site
controller commands, especially configure commands. The switch should always be left in the off
position when it is not needed.
The Manager's keyswitch works as follows:
•
If the user's permission level is greater than the permission level of the command, the key is
not needed.
•
If the user's permission level is less than the command's but the key setting is greater than
the command, access to the command is allowed.
•
If the user's permission level and the key setting are less than the command, access is
denied.
Test Points - CPU PCB
