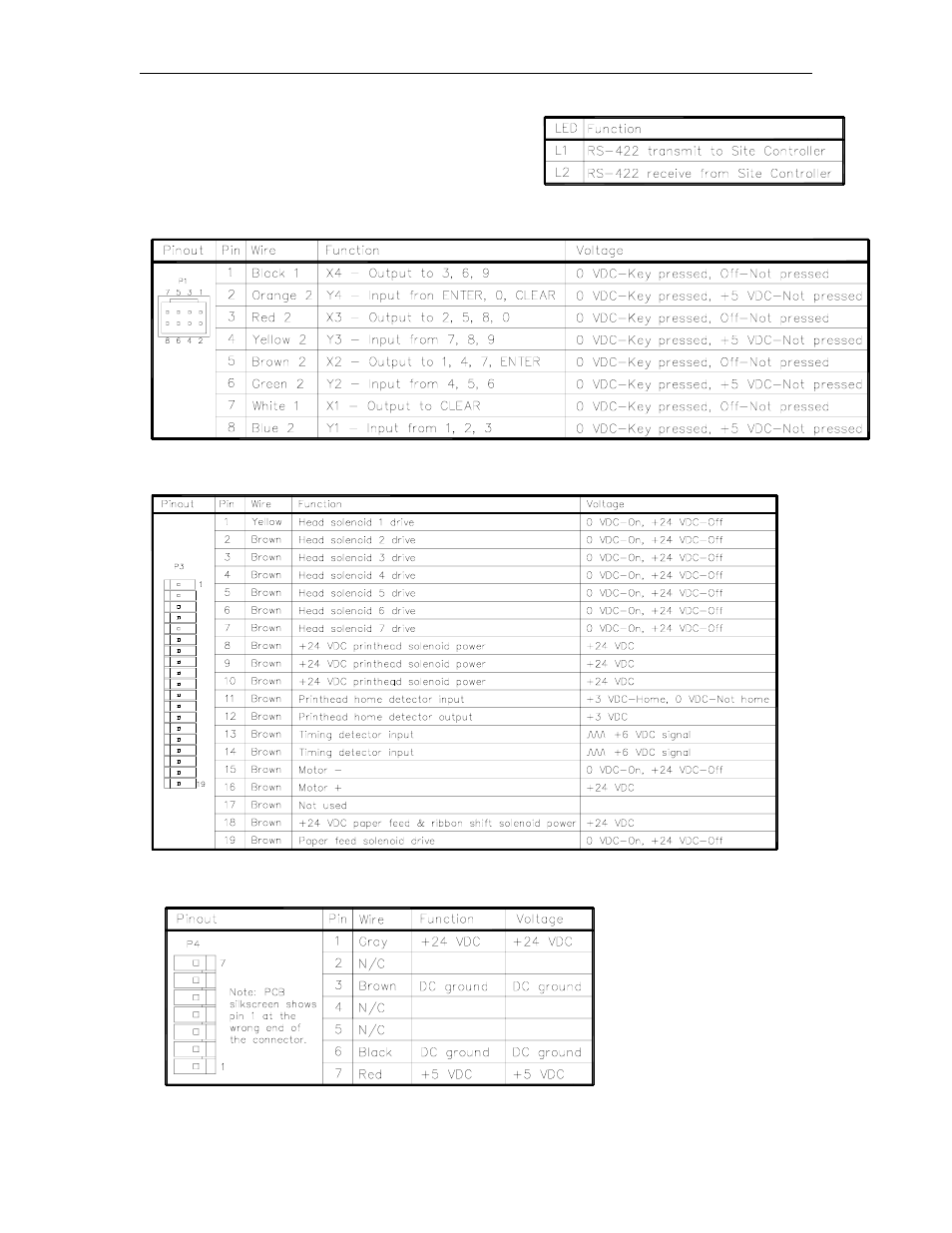

Epson cpu pcb led indicators, Epson cpu pcb connectors, P2 - pin pad – Gasboy CFN Series Diagnostic Manual User Manual
Page 303: P3 - receipt printer, P4 - power supply input
