Console cpu pcb (c04832) for consoles i, ia and ii – Gasboy CFN Series Diagnostic Manual User Manual
Page 246
GASBOY CFN Series
7-10
1310
CONSOLE CPU PCB (C04832) FOR CONSOLES I, IA AND II
The console CPU PCB is the heart of the postpay-prepay console. This PCB:
•
processes all console data
•
communicates to the site controller via the RS-422 line
•
controls the pump status LED's
•
controls the data sent to the VF display
•
controls the beeper
•
controls the cash drawer PCB
•
monitors data from the keyboard
•
monitors data from the mag reader
•
monitors the manager keyswitch
•
monitors the status of the cash drawer
•
provides diagnostic LED's

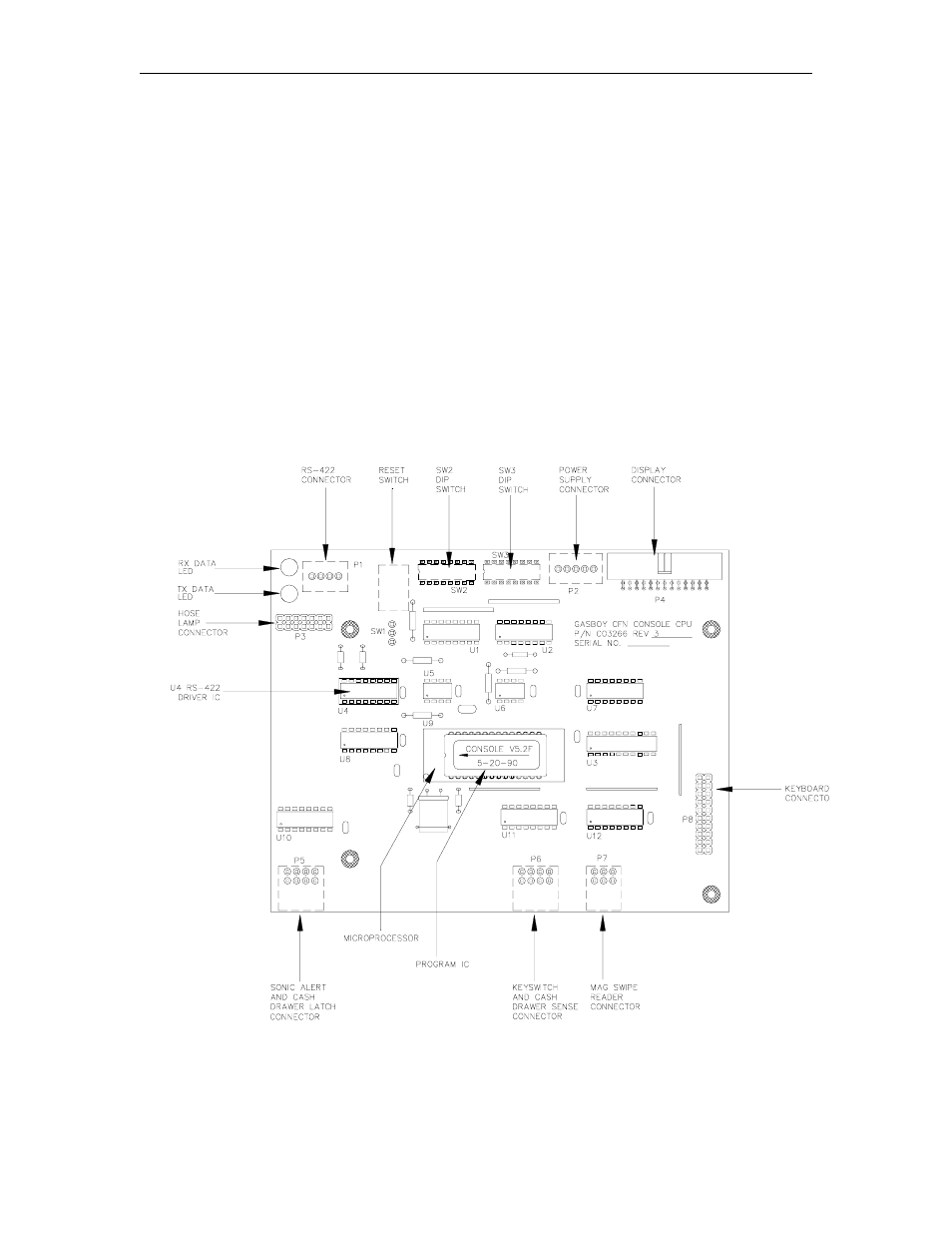

Layout
