GASBOY CFN Series
4-4
03/19/04
WIRING
All field wiring connections to the island card reader are made in the head of the unit. The island
card reader wiring is split into two classifications, AC and DC. Separate conduits must be
provided for each. AC and DC wiring must never be mixed in any common junction box, conduit,
or trough (see CFN SCI or SCII Installation Manual for detailed instructions). The following tables
list the connections that can be found in the Installation Manual.

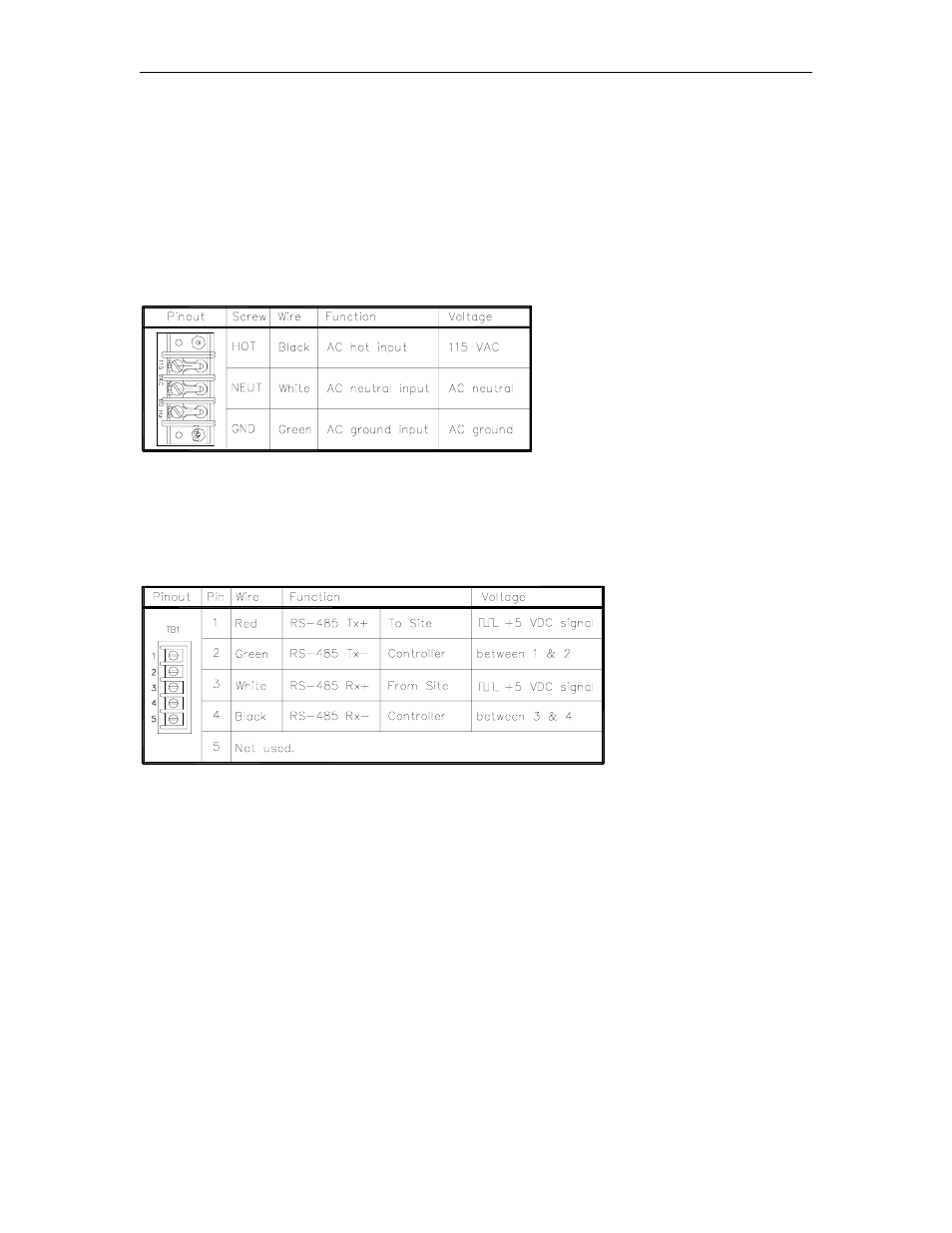

Connectors
AC Power Input
NOTE: Colors shown are for ICR mounted on pedestal PCU post. If ICR is mounted on non-
pedestal PCU post, the field wiring colors are unknown.
DC RS-485 Input
