CFN System

1310

7-19

LED Indicators

LED indicators are provided to allow you to monitor
the console's operation.

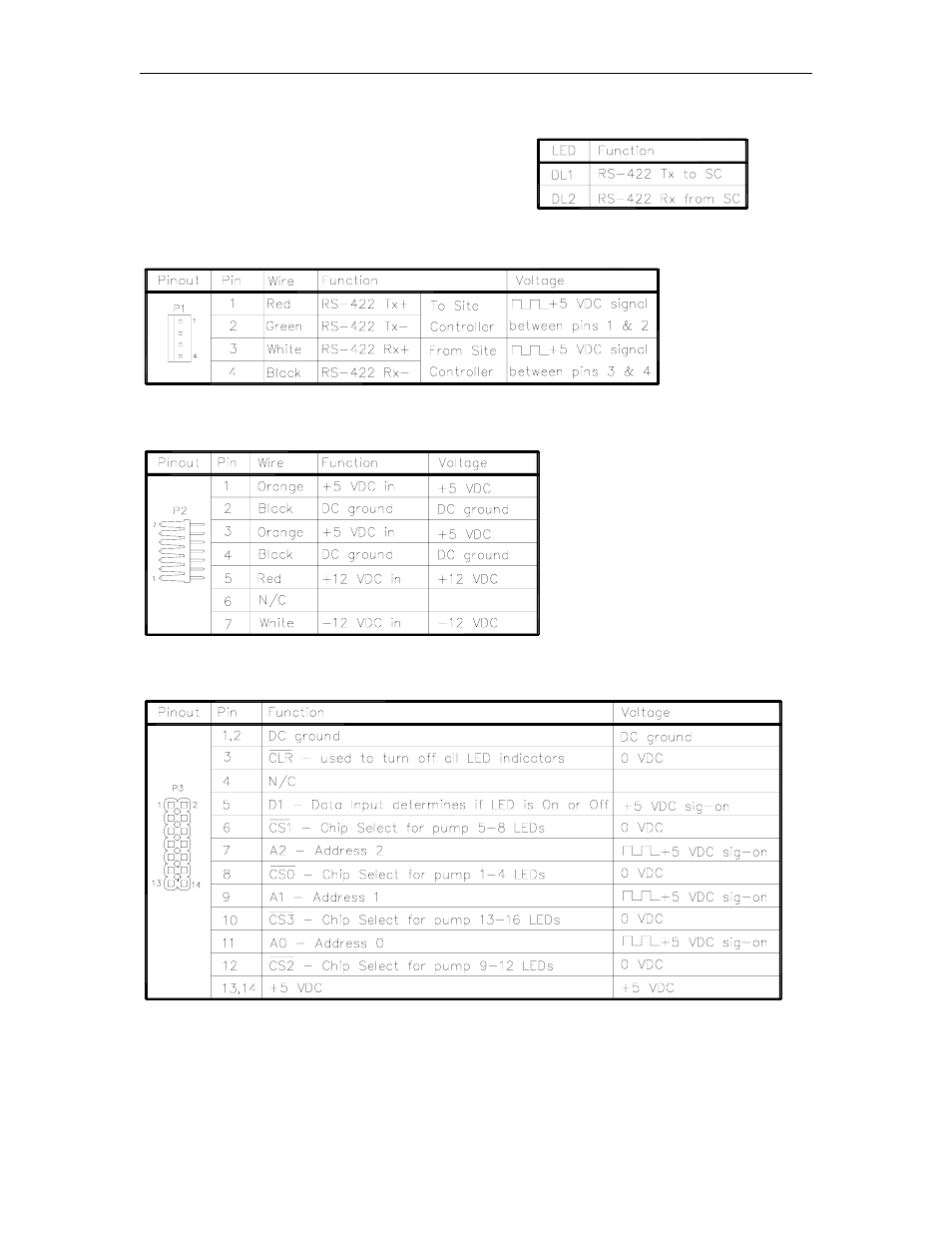

Connectors
P1 - RS-422 Communication

P2 - Power Supply Input

P3 - Hose LED Interface Lines
