Connectors, P2 - backlight power, P3 - lcd i/f pcb – Gasboy CFN Series Diagnostic Manual User Manual

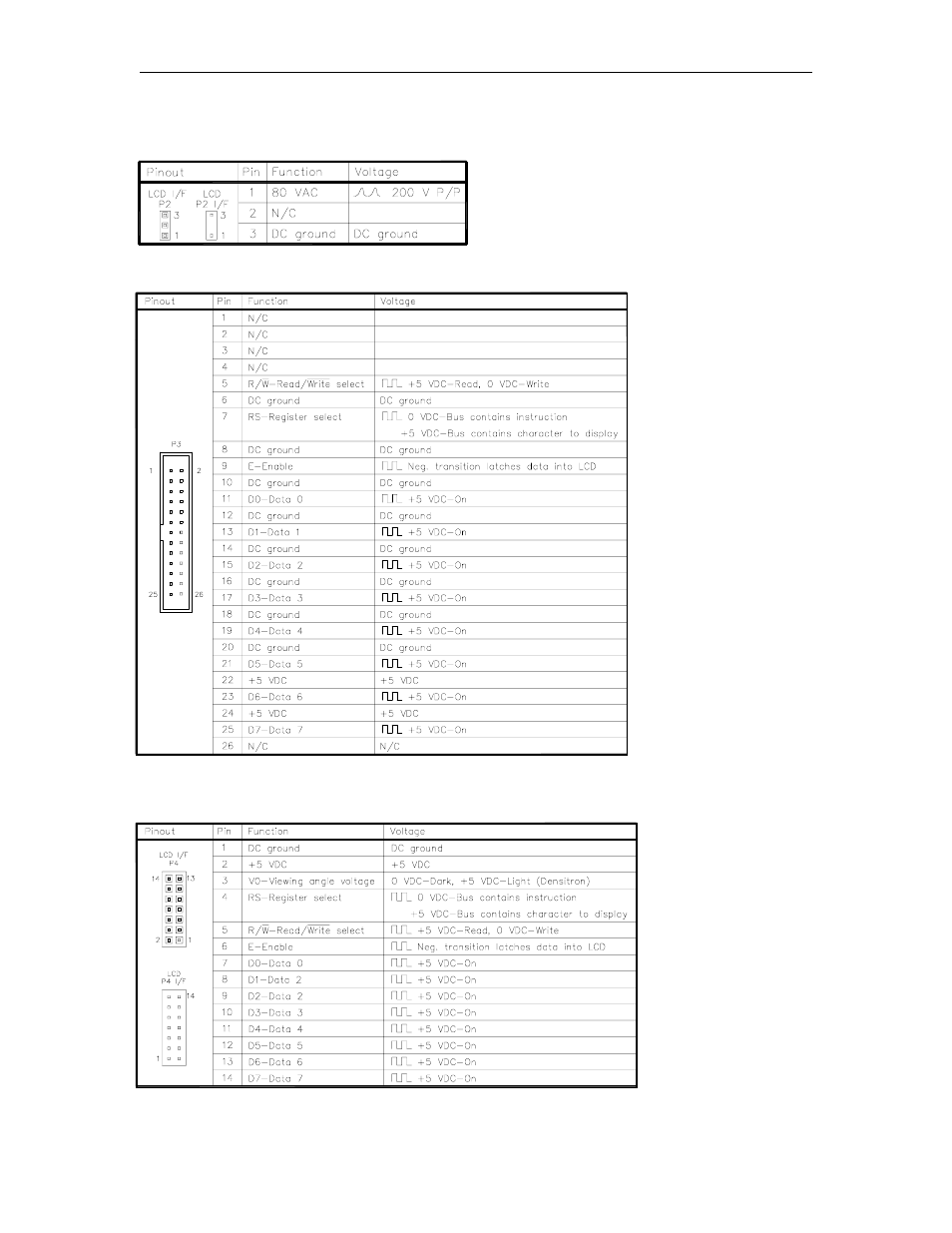

Page 141: P4 - lcd interface
