Gasboy CFN Series Diagnostic Manual User Manual
Page 270
GASBOY CFN Series
7-34
1310

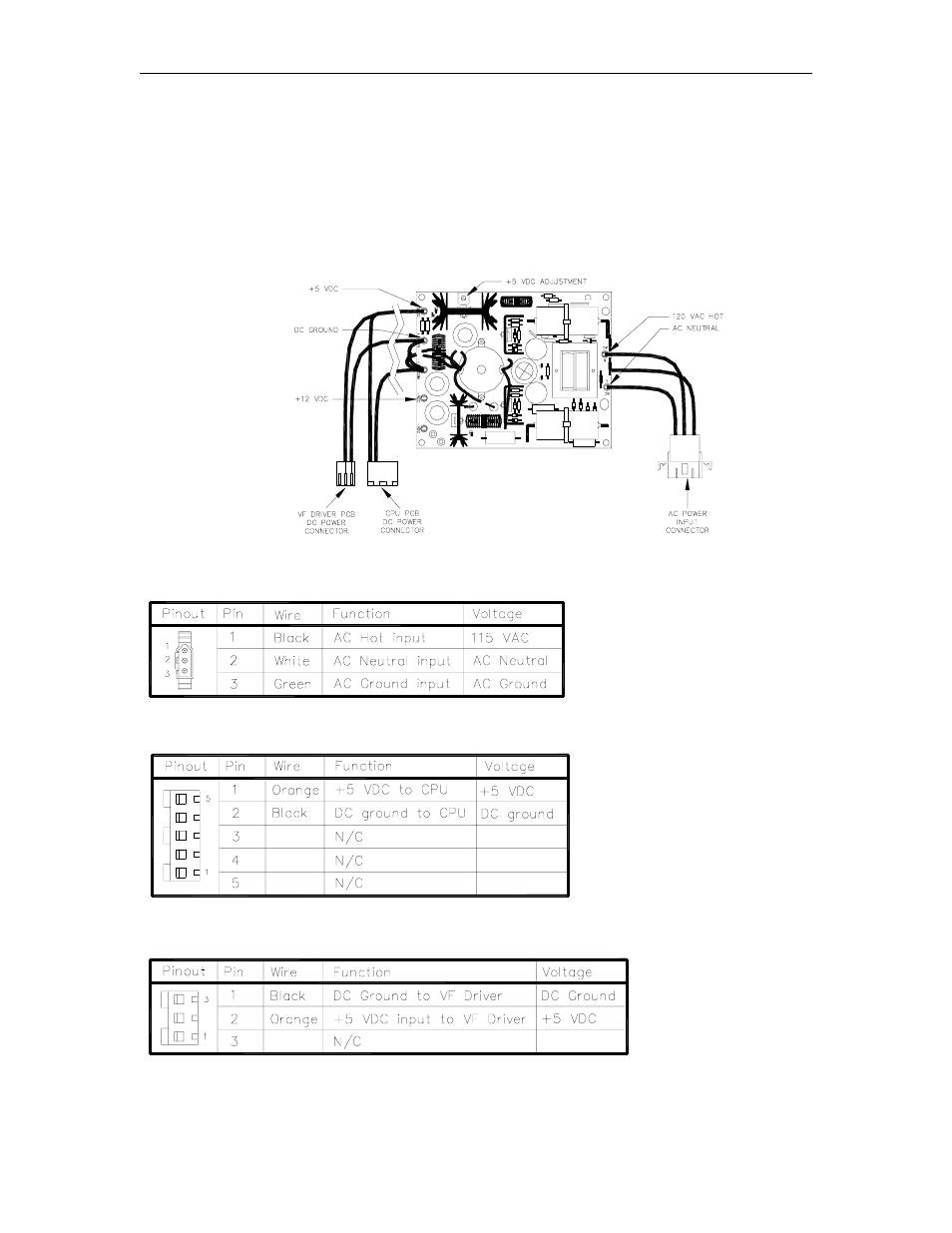

POWER SUPPLY ASSEMBLY (C05423) FOR CONSOLES I, IA, AND II
The power supply assembly provides the internal power used by the console. This assembly:
•
provides regulated +5 VDC to all PCB's
•
provides regulated +5 VDC to the optional customer display
•
provides unregulated +12 VDC to the optional cash drawer
Layout
Connectors
AC Power Input
CPU DC Power
VF Driver PCB DC Power
