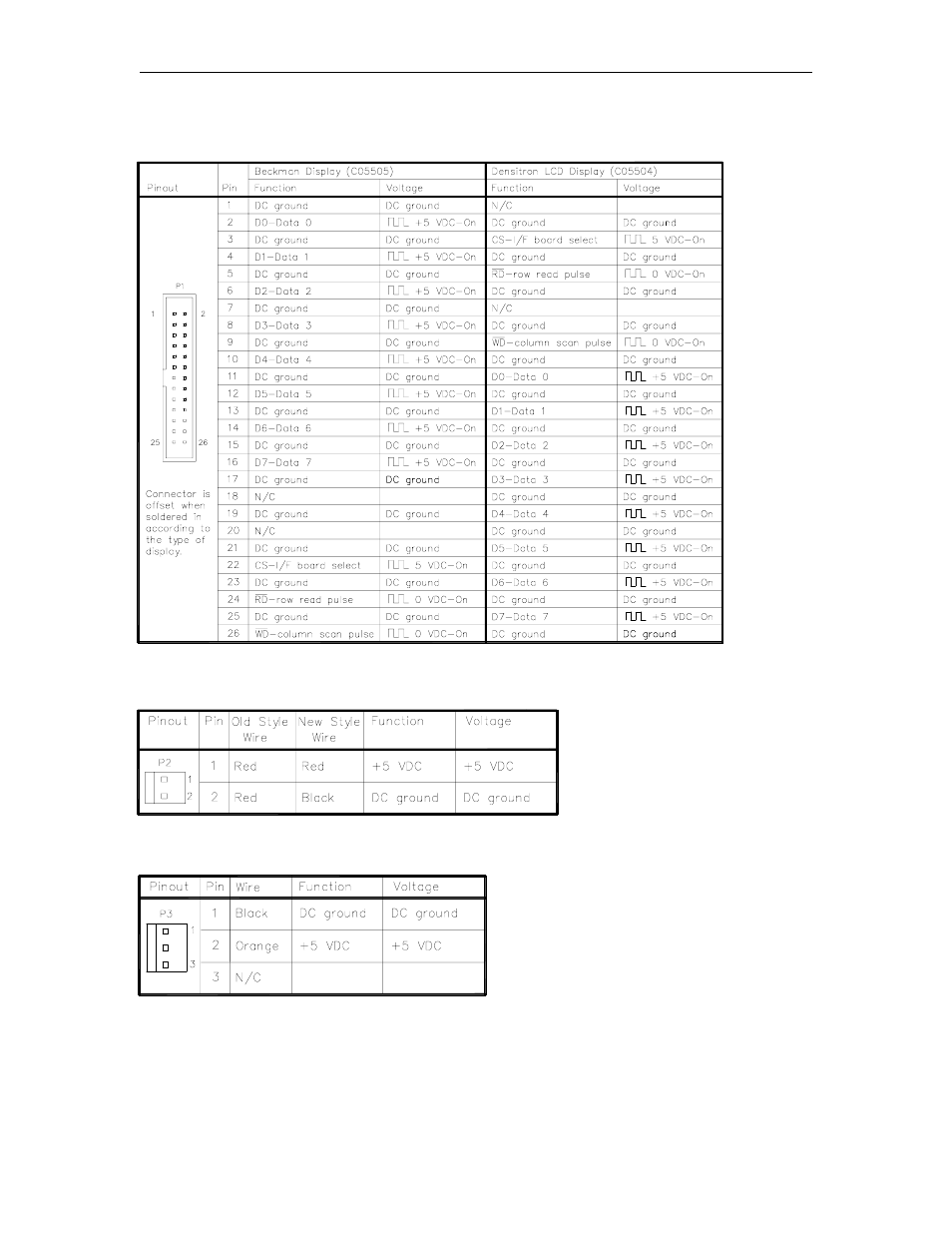

Connectors, P1 - display interface, P2 - dc power to reader – Gasboy CFN Series Diagnostic Manual User Manual
Page 145: P3 - dc power input
