Tokheim splitter (c05851), Layout, Connectors – Gasboy CFN Series Diagnostic Manual User Manual

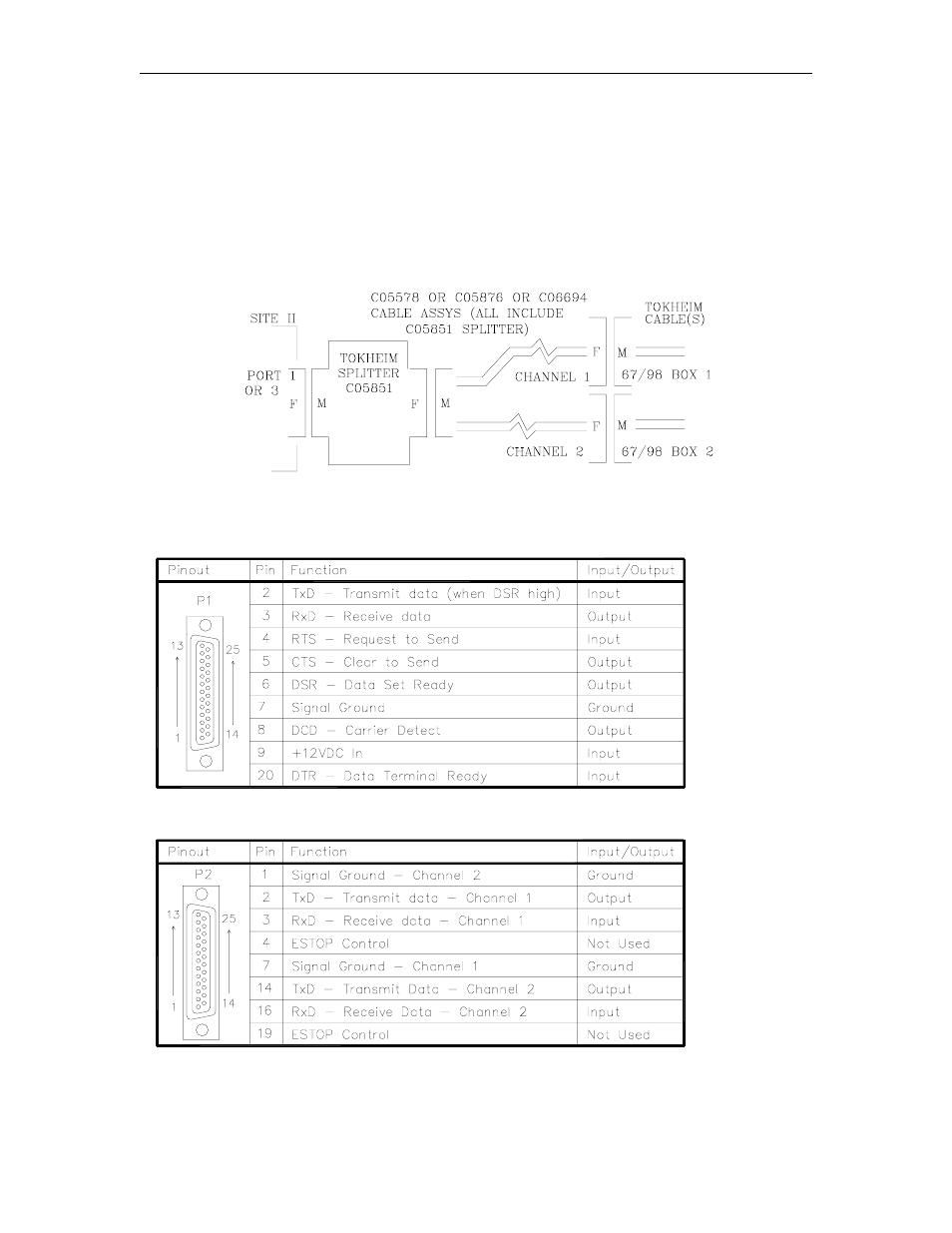

Page 96: P1 - site controller connection, P2 - tokheim pump communications connection
