2.4 Instruction Details
3-72
2
Chapter 2 Instructions
0001
0000
#00010
C000

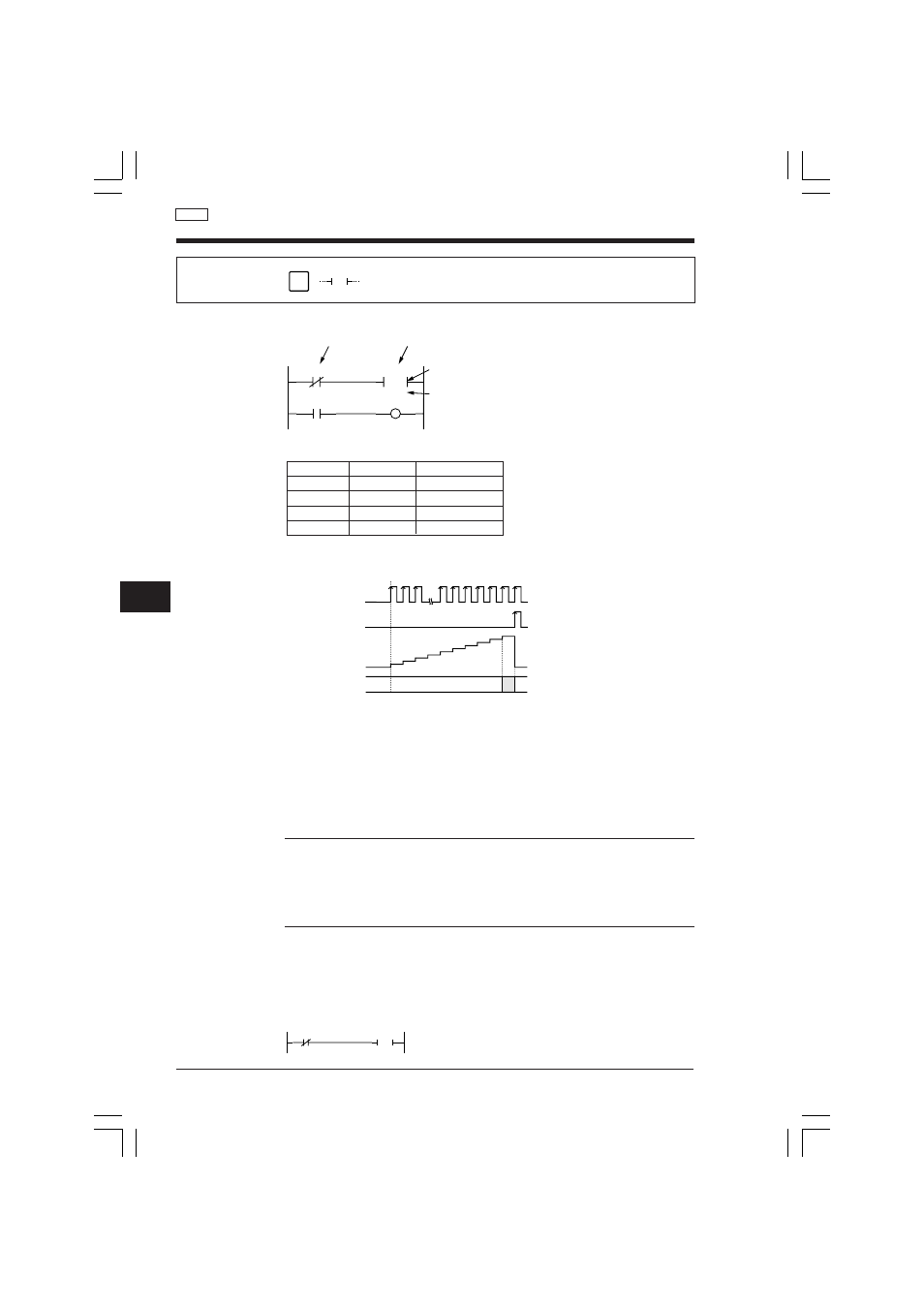

Example
Coding
Timing diagram (C000#00010 and 0500 in the above example)
Description
• The counter performs one counting at the rising edge of clock pulse. When the
current value reaches the preset value, the coil of specified No. turns ON.
• When a reset input (b [N.C.] contact) turns ON, the current counter value is reset
to "00000".
• Since C is software counter which is set on the program, the response speed
depends on the scan time.
Note 1: When a reset input is provided using an a (N.O.) contact, the current
counter value is reset at power-off.
Note 2: The C number cannot be the same as any other TMS, TMH, TMR, C, or
UDC instructions in the same program.
Note 3: The current C value is stored more than two months (KV-10xx: More than
20 days) at 25°C even when the KV is not in operation or is turned off.
Tips
By entering relay 2007 (which can turn the counter OFF for only the first scan time
when the operation is started) using an 'a' (N.O.) contact in series as the input relay
for resetting counter, you can reset the current C value whenever the operation is
started.
C: Counter Sets a 16-bit up-counter.
#ddddd
nnnn
Cxxx
CTR
( C )
0001
C000 0500
0000
#00010
C000
Line No. Instruction Operand
0000 LDB 0001
0001 C 000 #00010 0000
0002 LD C000
0003 OUT 0500
ON
#00010 1 2
3 4 5 6 7
8 9 10
C000
0500
OFF
ON
:
Reset input Preset value
Counter No.
Count input
0000
(Count input)
0001
(Reset input)
Current value
of C000
C
