2.4 Instruction Details
3-160
2
Chapter 2 Instructions
Arithmetic flag
2009 No change
2010 Turns ON when the internal register is "0" after an ANDA operation.
Turns OFF at other times.
2011 No change
2012 The DM or relay indirectly addressed with #TM is out of range.
➮ "Indirect addressing" (p. 3-127)
Tips
Solution when connecting one-digit data of a BCD digital switch to inputs 0100
to 0103, while ignoring other inputs
Only one-digit data of the BCD digital switch is transferred as the setting value of the
fetching counter (C004).
Other inputs (0104 to 0115) are ignored.
Application of ANDA instruction
■ Fetch input data separately
Sets the low-order 2 digits of the BCD digital switch (7000 to 7007) to counter C000
and the high-order 2 digits (7008 to 7015) to timer T001.

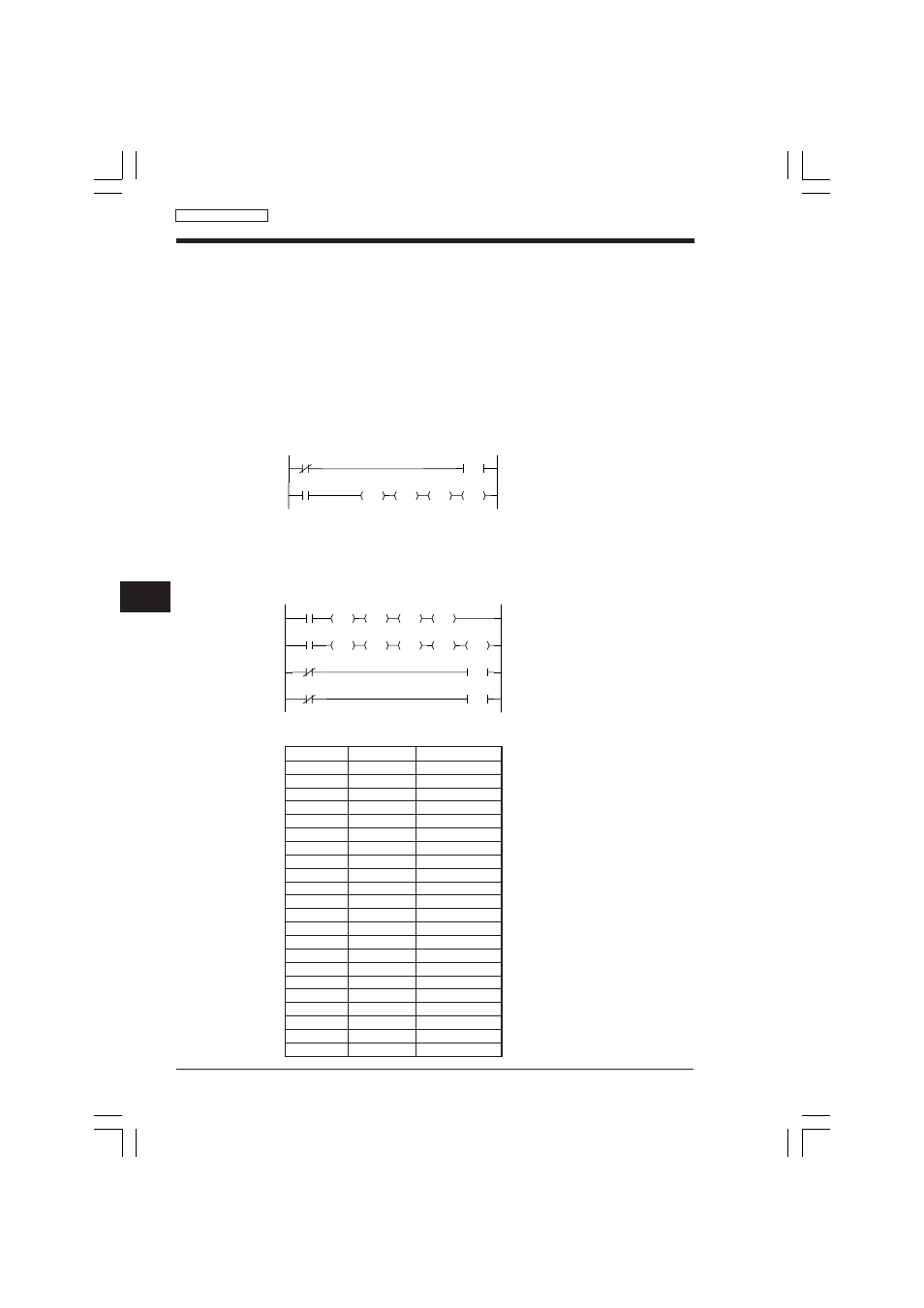

Coding
0004
2002
#00300
C004
0005
0100
LDA
$000F
ANDA TBIN
C004
STA
7000
LDA
$00FF
ANDA
TBIN
C000
STA
2002
TBIN
#08
SRA
$FF00
ANDA 7000
LDA
T001
STA
2002
0001
0001
#09999
C000
0000
#09999
T001
Line No. Instruction Operand
0000 LD 2002
0001 LDA 7000
0002 CON
0003 ANDA $00FF
0004 CON
0005 TBIN
0006 CON
0007 STA C000
0008 LD 2002
0009 LDA 7000
0010 CON
0011 ANDA $FF00
0012 CON
0013 SRA #08
0014 CON
0015 TBIN
0016 CON
0017 STA T001
0018 LDB 0001
0019 C 000 #09999 0000
0020 LDB 0001
0021 T 001 #09999
Converts data of 7000 to 7007 to BIN and
writes it into C000.
Shifts data to right by 8 bits, converts it to BIN,
and writes it into T001.
Sets C000.
Sets T001.
ANDA / @ANDA
