2.4 Instruction Details
3-62
2
Chapter 2 Instructions

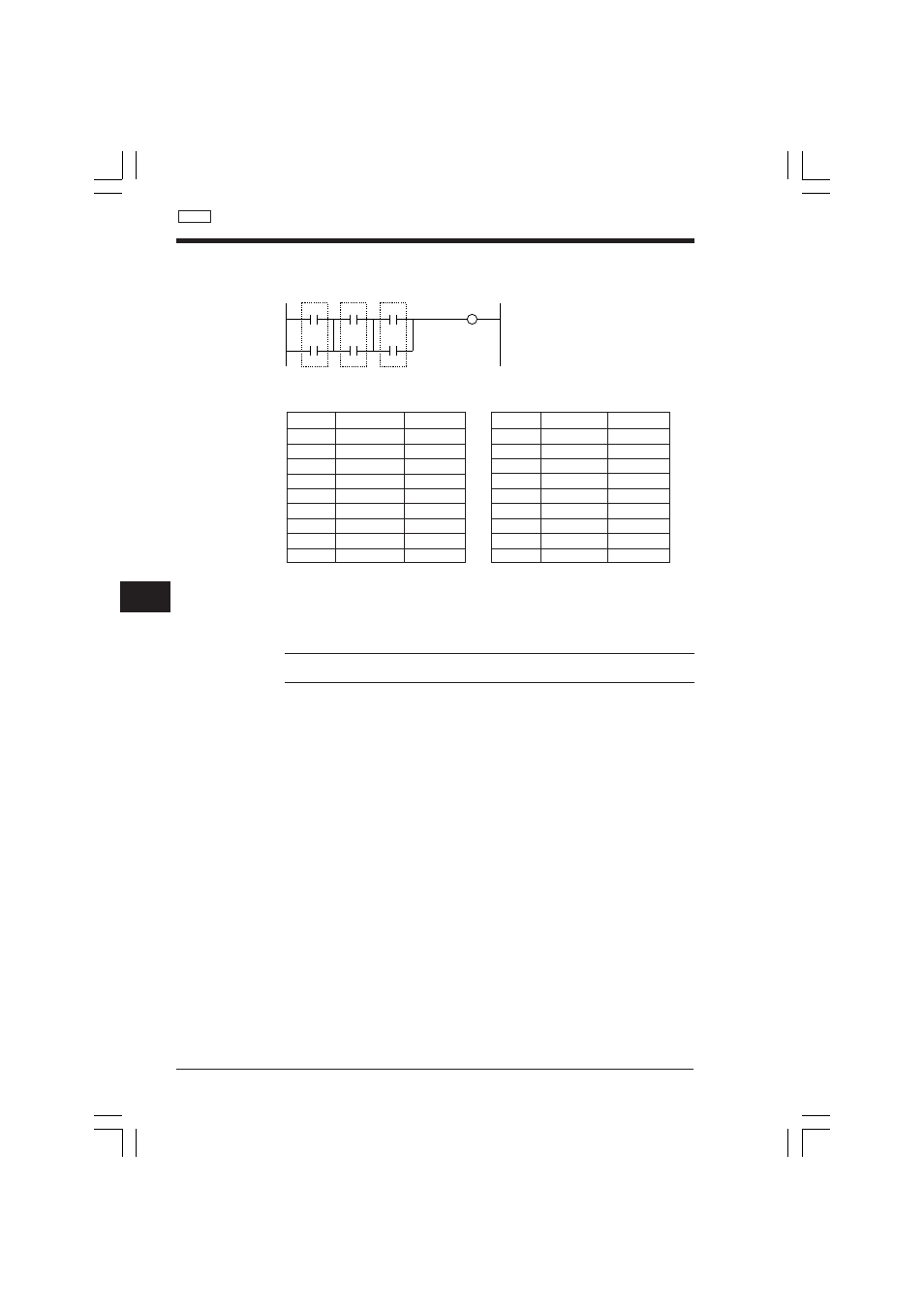

ANL
0000 0002 0500
0003 0005 0001
0004
Line No. Instruction Operand
0000 LD 0000
0001 OR 0001
0002 LD 0002
0003 OR 0003
0004 ANL
0005 LD 0004
0006 OR 0005
0007 ANL
0008 OUT 0500
Line No. Instruction Operand
0000 LD 0000
0001 OR 0001
0002 LD 0002
0003 OR 0003
0004 LD 0004
0005 OR 0005
0006 ANL
0007 ANL
0008 OUT 0500
Applications of ANL Instruction
Coding (1) Coding (2)
• The ANL instruction can be used as many times as desired. Note, however, that
in example (2) above, ANL is entered one less time than the number of blocks to
be connected.
• Also, ANL can be used only 8 times or less in example (2), whereas in example
(1) it can be used as many times as desired.
Note: "LOGIC ERROR" is displayed on the programmer when ANL is used 9 or
more times in example (2).
