6.2 Direct Clock Pulse
6.2.1 Output of Direct Clock Pulse
Outline of High-Speed Counters
Basic Architecture
The KV-300 CPU has two 16-bit (CTH0, CTH1) double-phase counter, each
equipped with two high-speed counter comparators (CTC0, 1, 2, 3). These counters
can be used as a stepping motor controller or are used to measure pulse width.

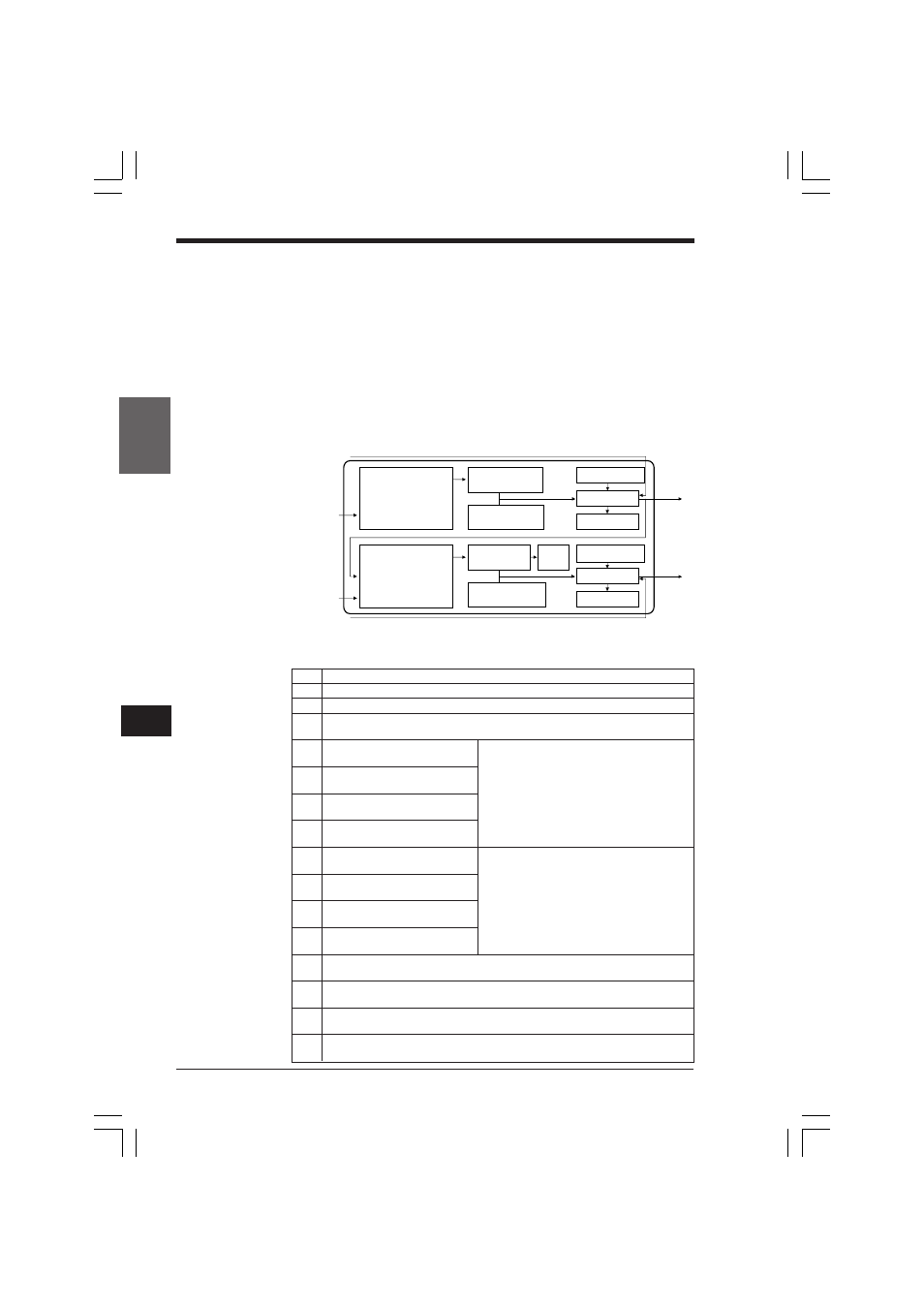

Block diagram of high-speed counters
■ Lists of special utility relays for high-speed counters
Utility relays for high-speed counter CTH0
2100 Internal clock (1.0 µs) for CTH0
2101 Internal clock (10.0 µs) for CTH0
2102 Internal clock (100.0 µs) for CTH0
2103 When comparator CTC0 is ON, automatically clears CTH0.
1: Yes 0: No
2104 Direct output to 0500 Direct output level to 0500 through comparator
1: Disable 0: Enable CTC1 (any one of these is ON)
2105 Turns OFF output to 0500.
1: Yes 0: No
2106 Turns ON output to 0500.
1: Yes 0: No
2107 Reverses output (toggle) to 0500.
1: Yes 0: No
2108 Direct output to 0500 Direct output level to 0500 through comparator
1: Disable 0: Enable CTC1 (any one of these is ON)
2109 Turns OFF output to 0500.
1: Yes 0: No
2110 Turns ON output to 0500.
1: Yes 0: No
2111 Reverses output to 0500 (toggle).
1: Yes 0: No
2112 When comparator CTC1 is ON, automatically clears CTH0.
1: Yes 0: No
2113 Uses CTH0 in magnification mode.
1: Yes 0: No
2114 Selection of magnification mode for CTH0
1: x 4 0: x 2
2115 Enables external reset for CTH0.
1: Yes 0: No
