6.3 Positioning Control
KV
-300
KV-10/80
3-296
6
Chapter 6 Interrupts, High-speed Counters, Positioning Control
6.3 Positioning Control
6.3.1 Positioning Control (Ramp-up/down Control)
Outline of positioning control
The KV-300 CPU outputs clock pulses, independent of scan time, directly through
output relay 0500 or 0501. When the clock pulse frequency, output pulse count, and
acceleration/deceleration time are set to the data memory addresses in advance,
the KV-300 CPU automatically performs ramp-up/down control. Output frequency
can be set within the range of 153 Hz to 50000 Hz.
With this function, ramp-up/down control over stepper motors and AC servo motors
(pulse input type) becomes possible.
The following section describes setting and application of positioning control
parameters.

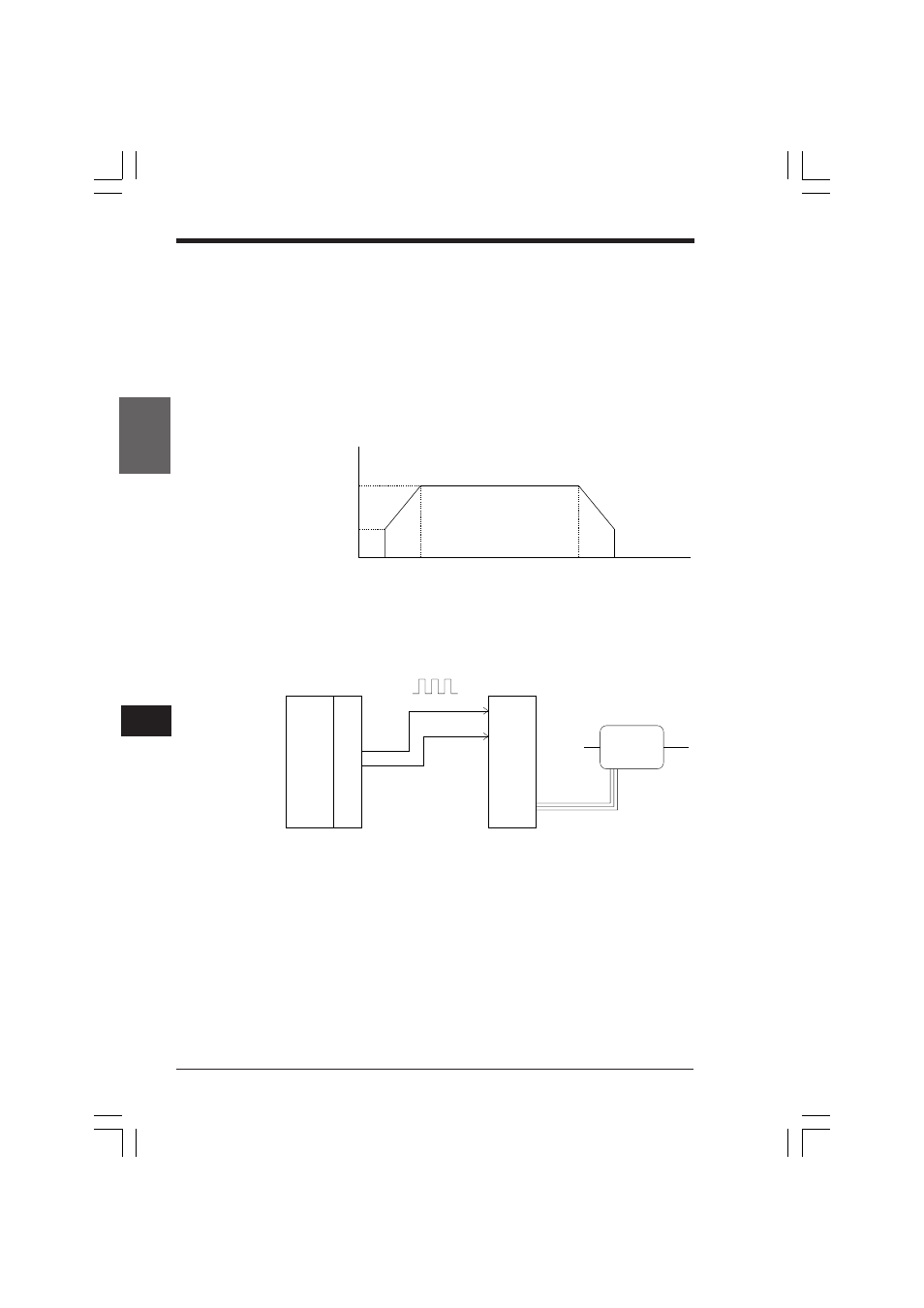

Acceleration time Deceleration time Time (ms)
Frequency (Hz)
Operation
Start
Output pulse count
Stepping motor
/servo motor
Motor driver
Clock pulse
Rotation direction
Lo : CW
Hi : CCW
KV-300
0500
0501
0502
0503
