8.2 Details
3-346
8
Chapter 8 Programming Examples
2002
0501 2009
CMP
DM0000
LDA
C000 0500 2009
2002
DIV
#00010
MUL
#00004
ADD
#00001
TMIN
0
0001 #09999
C000
00000
STA
DM0000
Sets the TMIN setting
range from 0 to 100.
Coding
Line No. Instruction Operand Line No. Instruction Operand
0000 LDB 0001 0008 OUT 0500
0001 C 001 #09999 0000 0009 LD 2002
0002 LD 2002 0010 LDA C001
0003 LDA C001 0011 CON
0004 CON 0012 CMP #02000
0005 CMP #01000 0013 CON
0006 CON 0014 ANB 2009
0007 ANB 2011 0015 OUT 0501

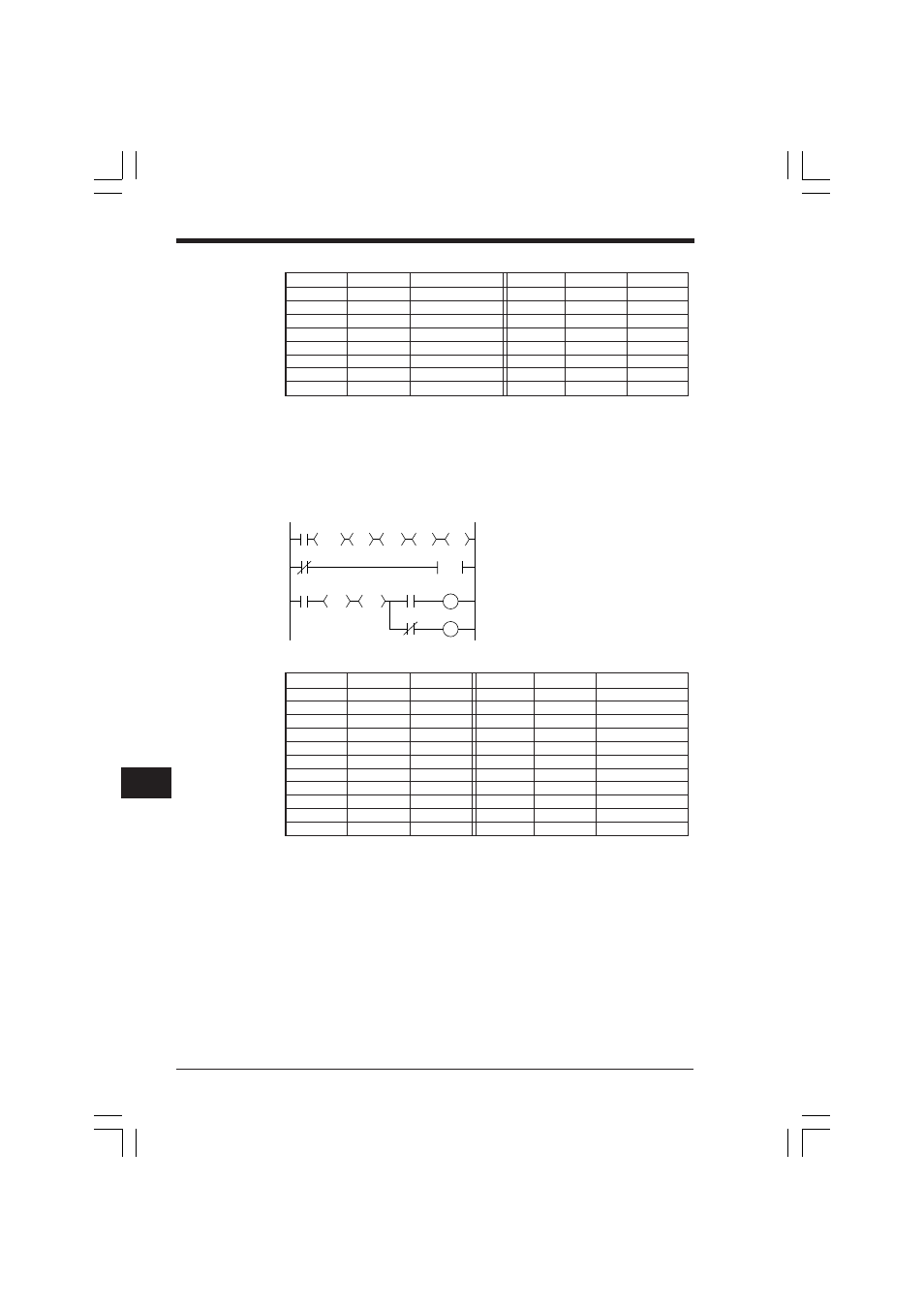

■ Changing the CMP setting value
Compares the current value of C000 to the CMP setting value. Sets the CMP setting
value to analog timer TMIN0.
The following example changes the setting value within the range from 0 to 100.
Turns ON 0500 when the C000 value is smaller than the CMP setting value.
Turns ON 0501 when the C000 value is greater than the CMP setting value.
Ladder diagram
Coding
■ Multi-level comparator
Compares the counter current value according to the following range:
•
0 to 999 → 0500 turns ON.
• 1000 to 1999 → 0501 turns ON.
• 2000 to 2999 → 0502 turns ON.
Counter reset relay 0001
Counter input relay 0000
Line No. Instruction Operand Line No. Instruction Operand
0000 LD 2002 0011 C 000 #09999 0000
0001 TMIN 0 0012 LD 02002
0002 CON 0013 LDA C000
0003 ADD #00001 0014 CON
0004 CON 0015 CMP DM0000
0005 MUL #00004 0016 MPS
0006 CON 0017 AND 2009
0007 DIV #00010 0018 OUT 0500
0008 CON 0019 MPP
0009 STA DM0000 0020 ANB 2009
0010 LDB 0001 0021 OUT 0501
