Power supply modules
Wiring
Devices in the range 10 ... 36 A (4 ... 18 kW)
6
247
EDS94SPP101 EN 7.1
6.6.5
Devices in the range 10 ... 36 A (4 ... 18 kW)
L3
N
PE
L1
L2
F1...F3
R
B
E94AxxExxxx
E94AZPxxxxx
X109
X110
Z1
E94APNE0xx4
24E GE
X11
E94AZPPxxxx
X109
X110
L1
L2
L3
X111
+UG -UG
L1 L2 L3
X112
Rb1 Rb2
K1
F4
K1
K1
O
I
R
B
J
+
-
3
+
+
SSP94PSP21

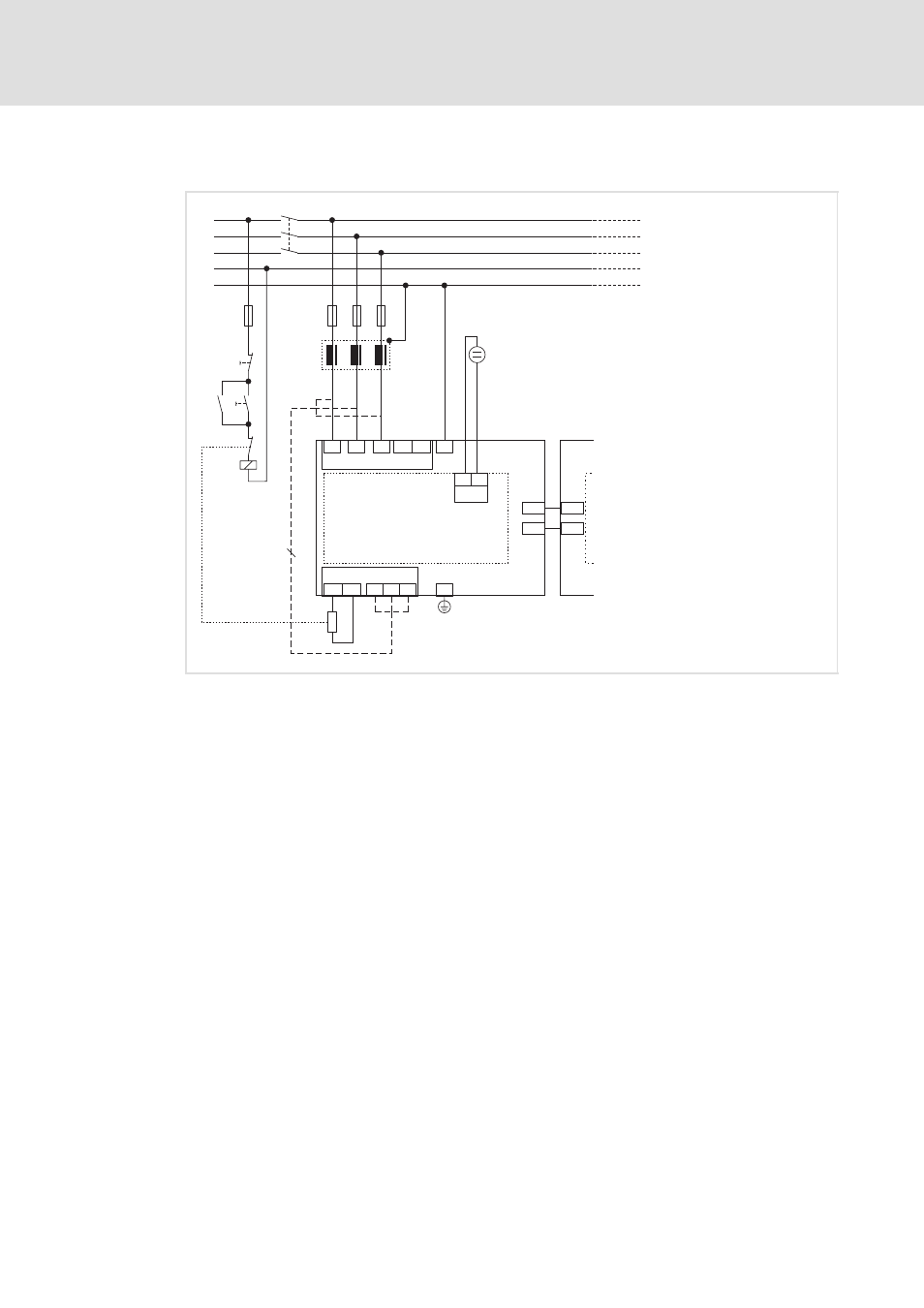

Fig. 6-6
Example circuit for installation backplane and DC power supply module
E94APNExxx4
9400 DC power supply module
E94AZPxxxxx
Installation backplane
E94AxxExxxx
9400 axis module
E94AZEX100
DC input module
F1 ... Fx
Fuses
Z1
Mains filter/RFI filter (optional)
K1
Mains contactor
RB
Brake resistor
c
Alternative: mains connection at the bottom
d
24 V supply voltage for control electronics according to IEC 61131-2
Tip!
Complete the wiring of the installation backplane before plugging in the
standard device. The upper terminals of the installation backplane cannot be
connected with a plugged-in standard device.
