14 Element User Manual
Terminology
Power Button
The power button on the front of the desk is used to power up or power down. A separate power
switch, located in the rear panel, can be used to disconnect power from the desk’s internal
components.
USB Ports
One USB port is provided on the front of the console to connect any USB storage device. Additional
USB ports on the rear panel of the console can be used to connect peripherals such as an
alphanumeric keyboard, pointing device, or touchscreen control for external monitors.
Level Wheel
Adjusts intensity for selected channels. It also provides scrolling and zoom functions in various
modes.
IEEE Ethernet 802.3 Ethernet Port
Ethernet port for connection to a network switch, network gateways, and accessory devices.
Littlites
®
You may connect a Littlite to the side of your Element.
Dimming Littlites
Attached desk lamps can be dimmed either with the desk lamp control knob on the side of the
console, or from the software.
Desk lamp controls are found in Setup >Desk >Brightness Settings. The {Desk Lamp} slider has
a range of 0% (dimmest) to 100% (brightest). The default setting is 0%. The console will set the
desk lamp to this setting on startup of the application.
See “{Brightness Settings}” on page 49.
The desk lamps can also be controlled by holding down [Displays] and rolling the level wheel.
W A R N I N G : Before servicing Element, you must switch off the power on the rear panel
and disconnect the power cord completely.
C A U T I O N : The USB ports cannot be used for charging devices like cell phones.

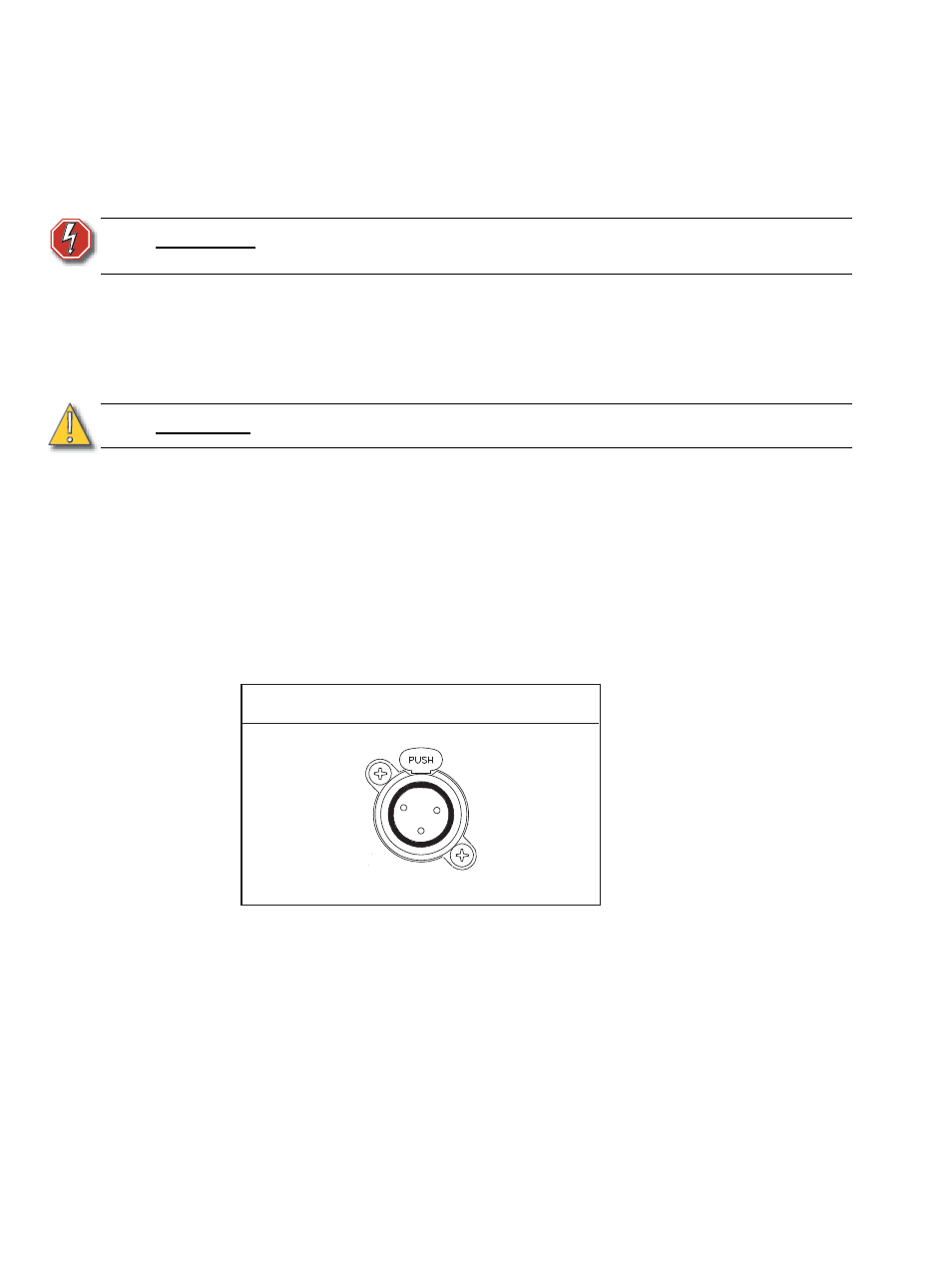

Littlite XLR 3-Pin Female Connector
1 2
3
