3. Creating an HDLM Environment
99
configuration.
22. Connect cables to all the HBAs to change the configuration to a multi-path
configuration.

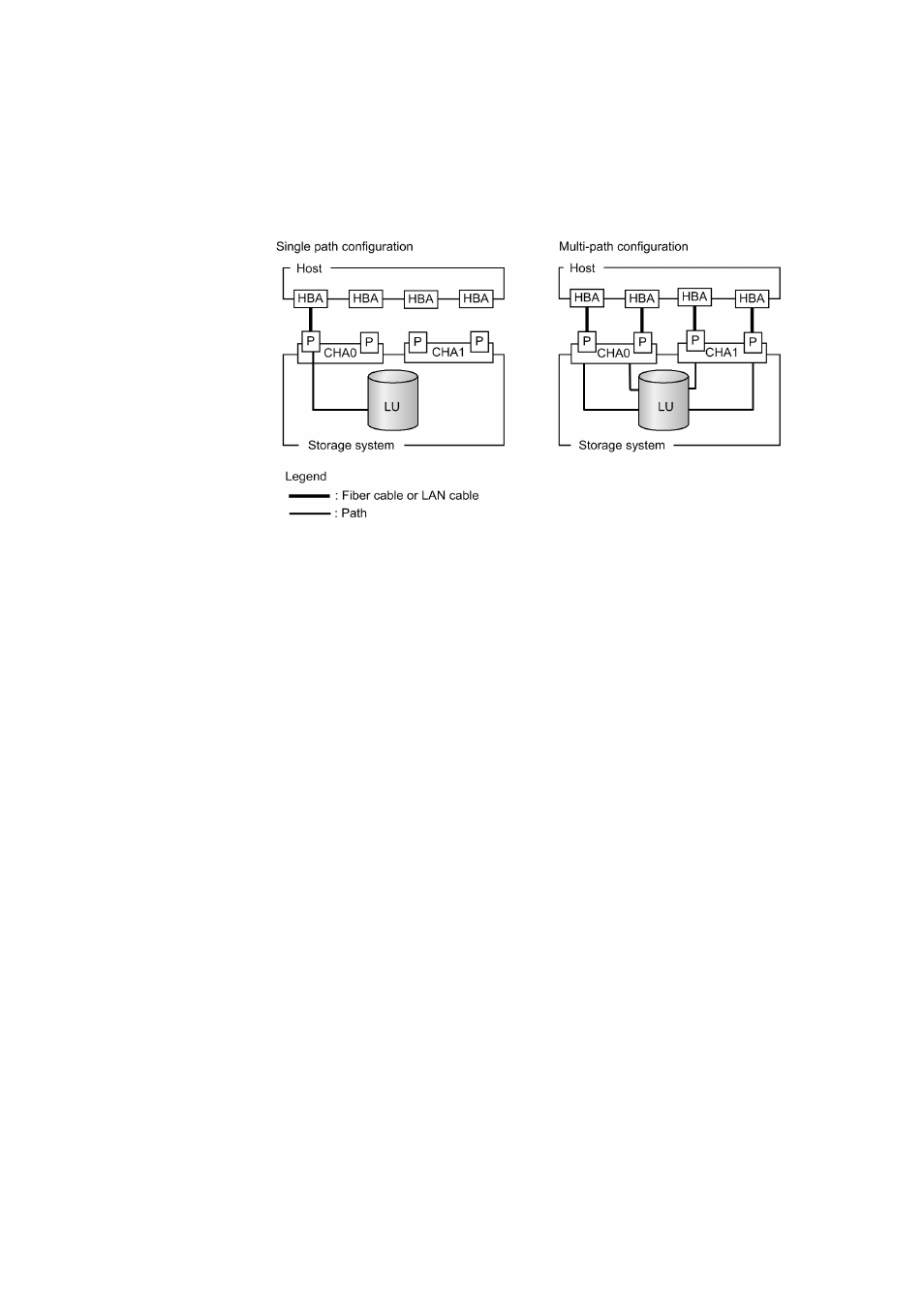

Figure 3-3: Single Path Configuration and Multi-path Configuration shows a
single path configuration and a multi-path configuration.
Figure 3-3: Single Path Configuration and Multi-path Configuration
23. Check the path information as described in 3.6 Checking the Path Configuration
to make sure that you have successfully assembled a multi-path configuration.
(2) When MSCS Is Used
The following provides explanations of how to install MSCS before and after an
HDLM installation.
Installing MSCS after an HDLM Installation
To install HDLM, and then MSCS:
1.
Shut down all the hosts.
2. Make sure that all the hosts that make up the cluster system have been fully shut
down.
3. Restart each host.
Restart them all in the single path configuration.
4. Log on to Windows as a member of the Administrators group.
5. Save the license key file directly under the Windows installation-destination
drive. Also, instead of using the license key file, you can directly specify a license
