Monitoring and Managing the Switch

82

Edge Switch Element Manager User Guide

Displaying Node Properties

Open the Node Properties dialog box by double-clicking a row in the Node List
View or right-clicking a row and clicking Node Properties.

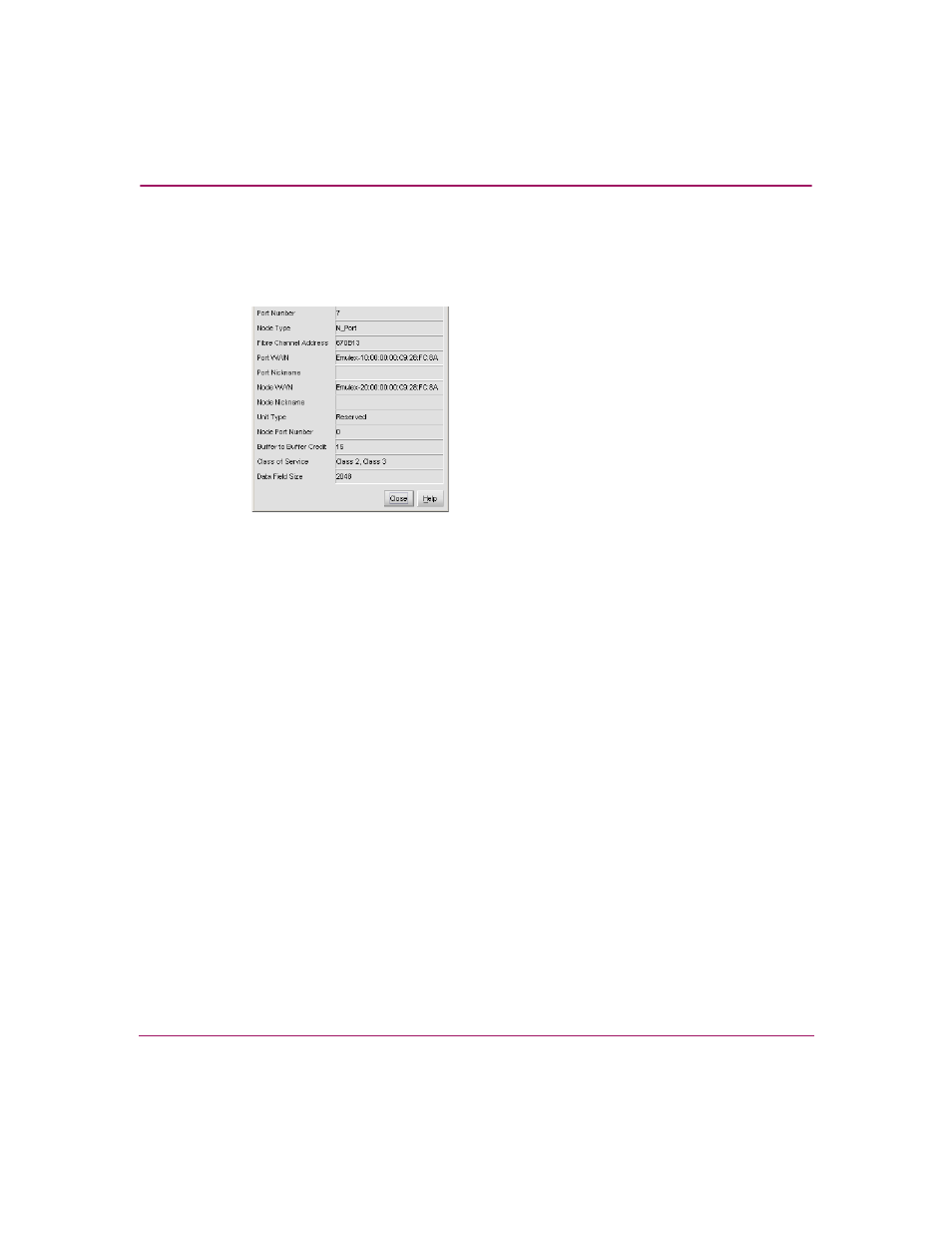

Figure 21: Node Properties dialog box

The Node Properties dialog box contains the following options:

Port Number—The physical port number on the switch to which the node is
connected.

Node Type—The type of port, as supplied by the attached port.

Fibre Channel Address—The 3-byte address of the node or the ALPA for
private loop devices.

Port WWN—Port WWN of the attached device.

Port Nickname—Nickname for the port WWN. Must be configured to
display.

Node WWN—Node WWN of the attached device. Must be configured to
display.

Node Nickname—Nickname for the node WWN.

Unit Type—Type of device. For a list of options, see “

Unit Type—The

following information, if supported, is supplied by the attached device:

” on

page 80, under “

Node List View Parameters

” on page 79.

Node Port Number—Physical port number on the attached node (if supplied
by the device).
