Element Manager Overview
48 Edge Switch Element Manager User Guide

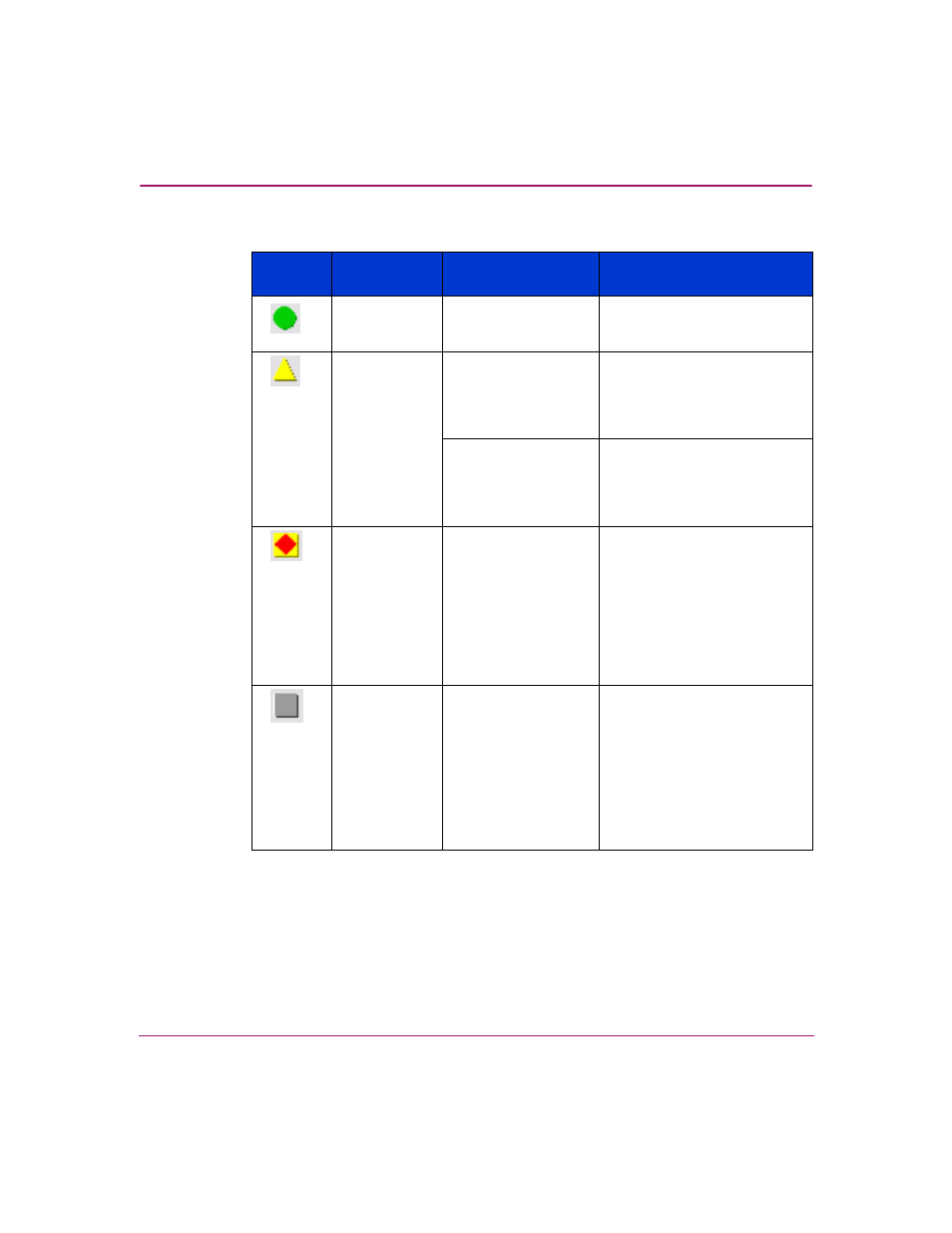

Table 2: Switch Status Symbols
Symbol Status Bar
Switch Status
Table Text Meaning
Green Circle Fully Operational All components and installed
ports are operational; no
failures.
Yellow
Triangle
Redundant Failure A redundant component has
failed, such as a power
supply, and the backup
component has taken over
operation.
Minor Failure A failure occurred which has
decreased the switch
operational ability. Normal
switching operations are not
affected.
Red Diamond
with Yellow
Background
NOT OPERATIONAL A critical failure prevents the
switch from performing
fundamental switching
operations.
All fans failed.
An installed port failed.
Both power supplies failed.
Gray Square Never Connected
Link Timeout
Protocol Mismatch
Duplicate Session
Unknown Network
Address
Incorrect Product
Type
Switch status is unknown. This
occurs if the Ethernet network
connection between the
HAFM appliance and the
switch cannot be established
or if the CTP fails. See the No
Link Status bullet on page 57
for details on the status table
text.
