Obtaining Hardware Information

The Element Manager enables you to display FRU information, port properties,
and switch properties using the various dialog boxes available on the Hardware
View
.

Displaying FRU Information

Display the FRU Properties dialog box using one of the following methods:

Double-click on a FRU, such as a power supply module illustrated in the
Hardware View.

Click an FRU in the Hardware View, then click Product > FRU > FRU
Properties
.

Double-click on a row in the FRU List view.

The FRU Properties dialog box displays the FRU name, slot position relative to
identical FRUs installed in the chassis, active or failed state, part number, and
serial number.

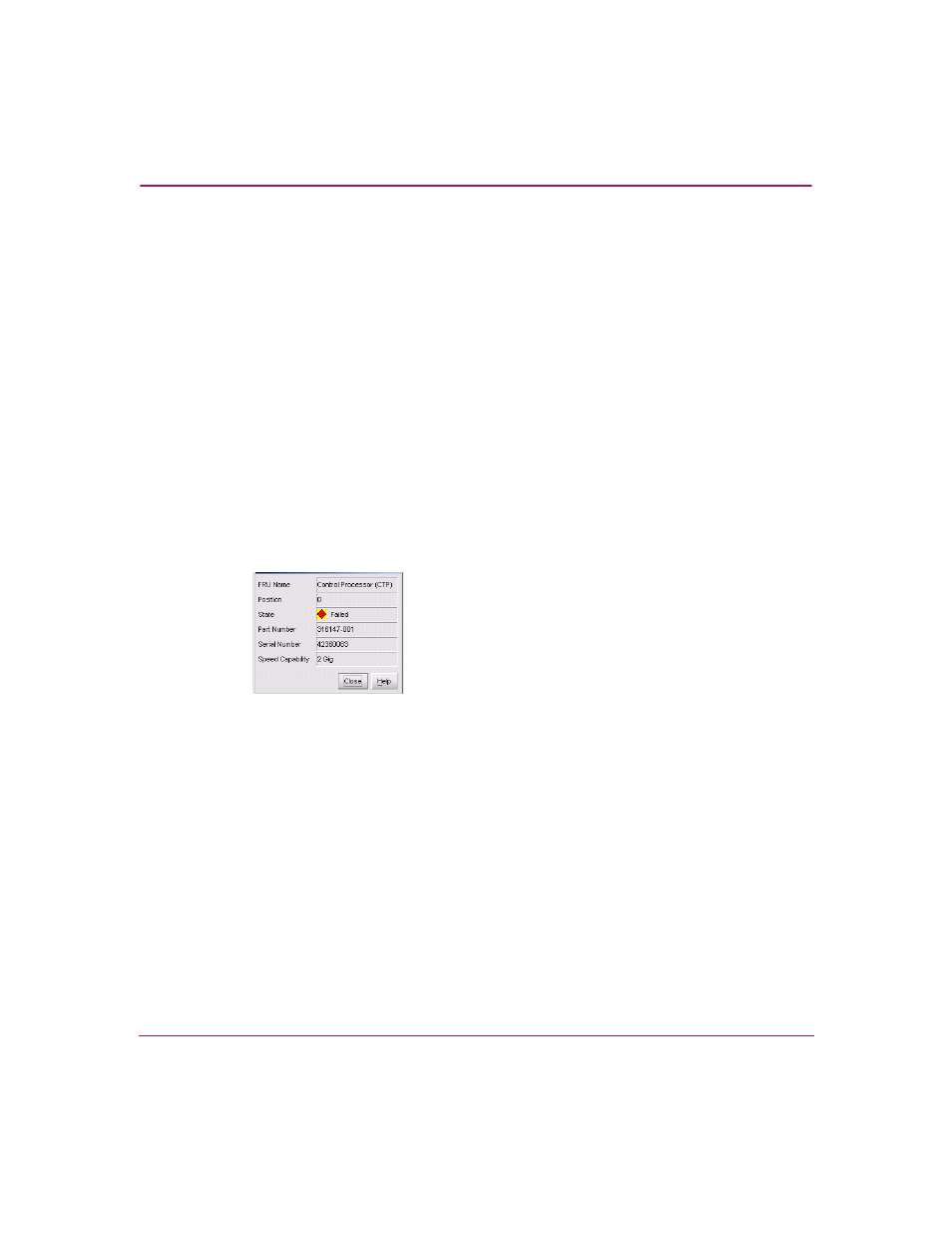

Figure 10: FRU Properties dialog box

Displaying Port Information

There are several ways to display the Port Properties dialog box:

Double-click on a port connector in the Hardware View.

Right-click on a port connector in the Hardware View and click Port
Properties
from the pop-up menu.

Double-click on the port row in the Port List View table.

Right-click on a port connector in the Performance View and click Port
Properties
.

Right-click on a port’s row in the Port List View and click Port Properties.

Right-click on a port’s row in the Node List View and click Port Properties.
