Element Manager Overview

47

Edge Switch Element Manager User Guide

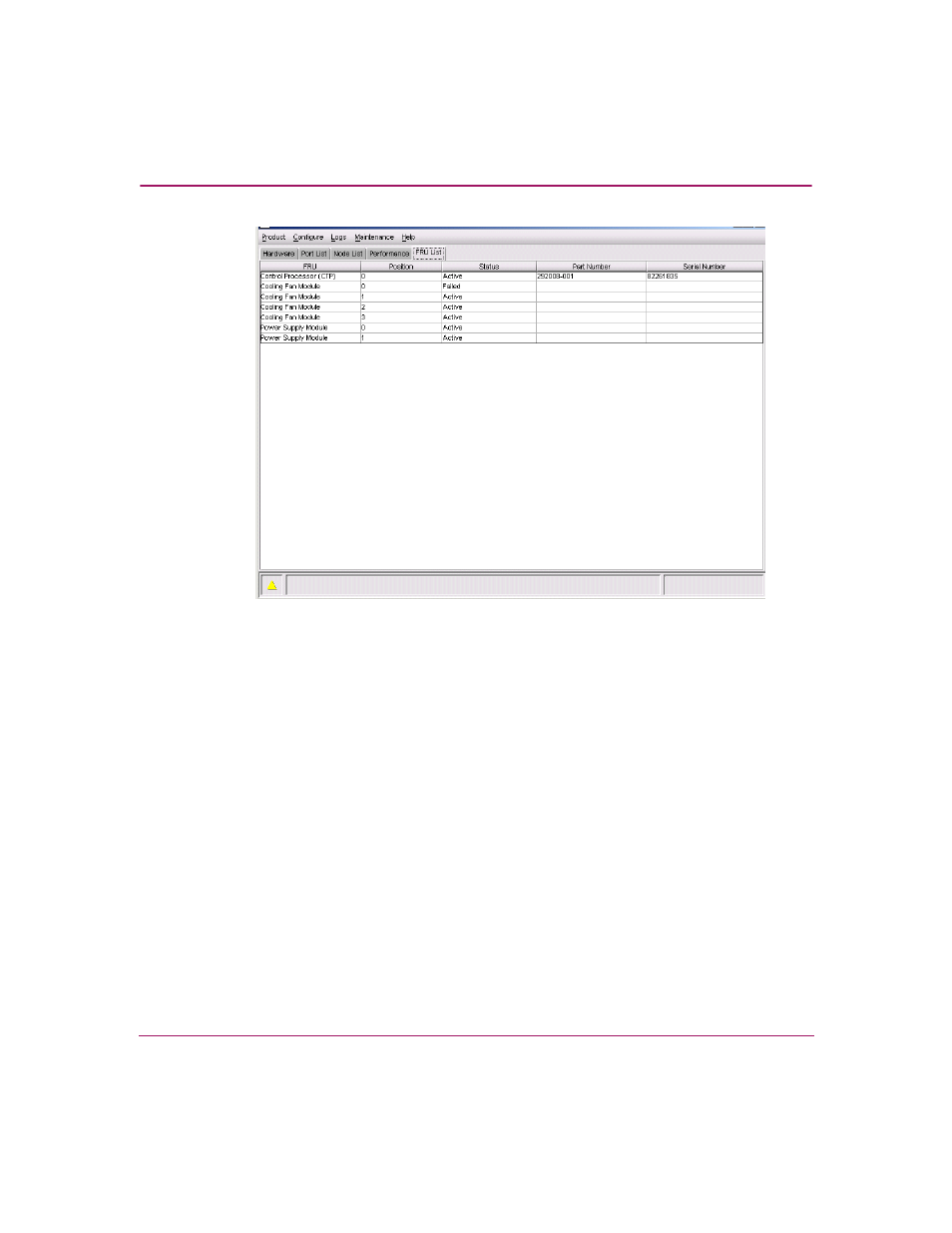

Figure 8: FRU List View

Double-click a row to display the FRU Properties for the selected FRU.

For details on navigating and monitoring via the FRU List View, see “

FRU List

View

” on page 91.

Status Bar

The status bar is located along the bottom of the Element Manager window. This
includes a symbol that displays at the left side of the bar, and messages that
display in the panel to the right of the symbol. The symbol indicates the current
operating status of the switch, and the messages display to provide more
description of menu options as you move the mouse pointer over the options under
menu bar menus.

See

Table 2

on page 48 for the meaning of these status symbols and of the

corresponding alert text that displays in the Edge Switch Status table at the top of
the Hardware View in the View panel.

If a gray square displays in the status bar (no Ethernet connection), a reason for
the status displays in the Status table at the top of the Hardware View. See the No
Link Status
bullet on page 57 for details.
