Using Logs
156 Edge Switch Element Manager User Guide
Hardware Log
The Hardware Log displays information about field replaceable units (FRUs)
inserted and removed from the switch. To open the Hardware Log, click Logs >
Hardware Log.

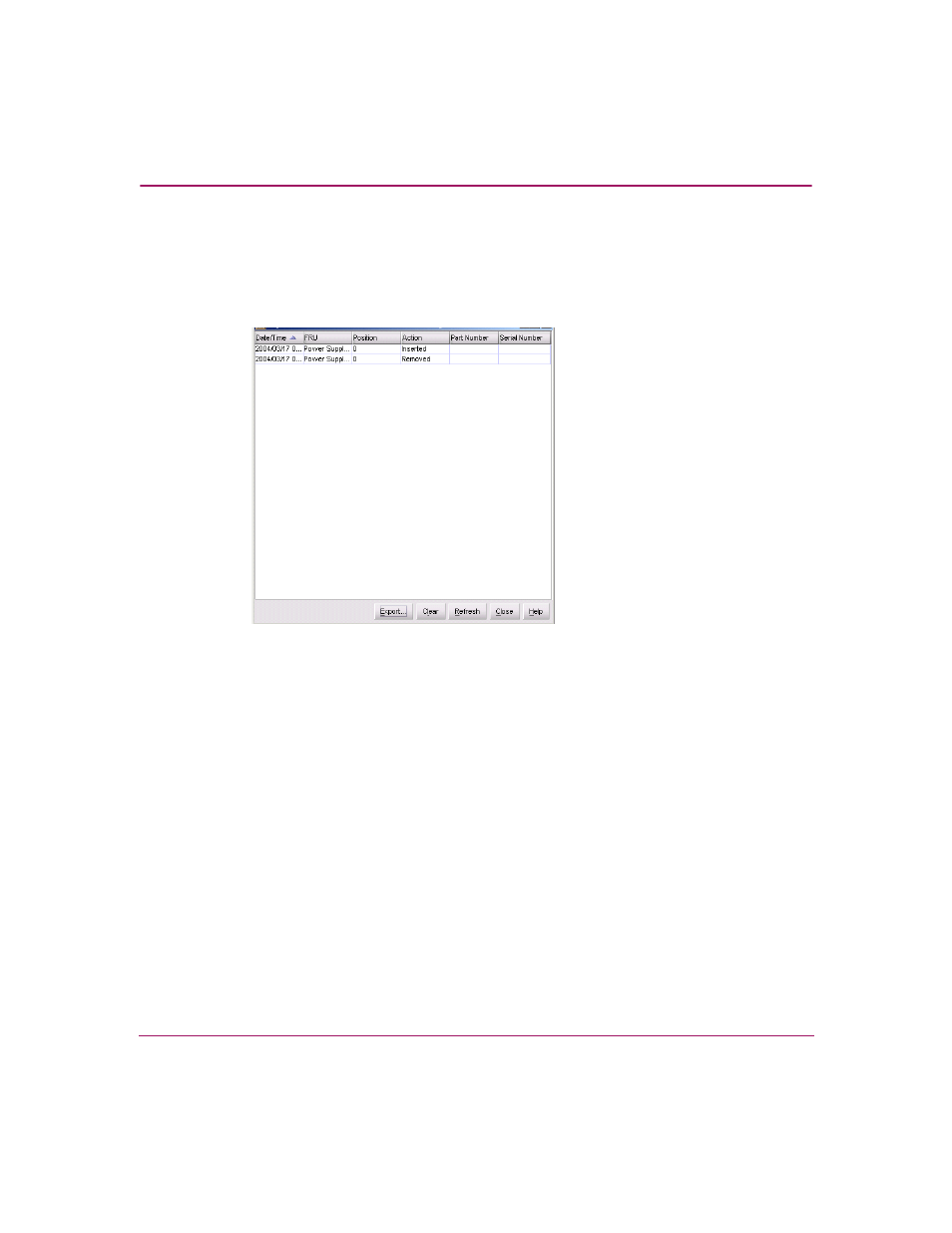

Figure 54: Hardware Log
Each log entry includes the following:
■ Date/Time—Date and time of the insertion or removal of the FRU.
■ FRU—The name of the inserted or removed FRU:
— PWR—Power supply/fan module
— SFP—SFP transceiver.
— CTP— CTP card. Note: The CTP is not an FRU.
■ Position—Slot position in the chassis relative to identical components
installed.
■ Action—Inserted or removed.
■ Part Number—Part number of the component.
■ Serial Number—Serial number of the component.
