Configuring the Switch
125 Edge Switch Element Manager User Guide
Configure Port Addresses Procedure
To configure, save, and activate port addresses, use the following steps:
1. Click Configure > Addresses > Active. The Configure Addresses - “Active”
dialog box displays, as shown in Figure 35 .
2. Click a square to either prohibit or allow connections,.
Caution: Take extreme care when configuring PDCMs for E_Ports, as
mistakes can render paths unusable and cause complex routing problems.
These problems can be difficult to detect and sometimes manifest as
end-device issues.

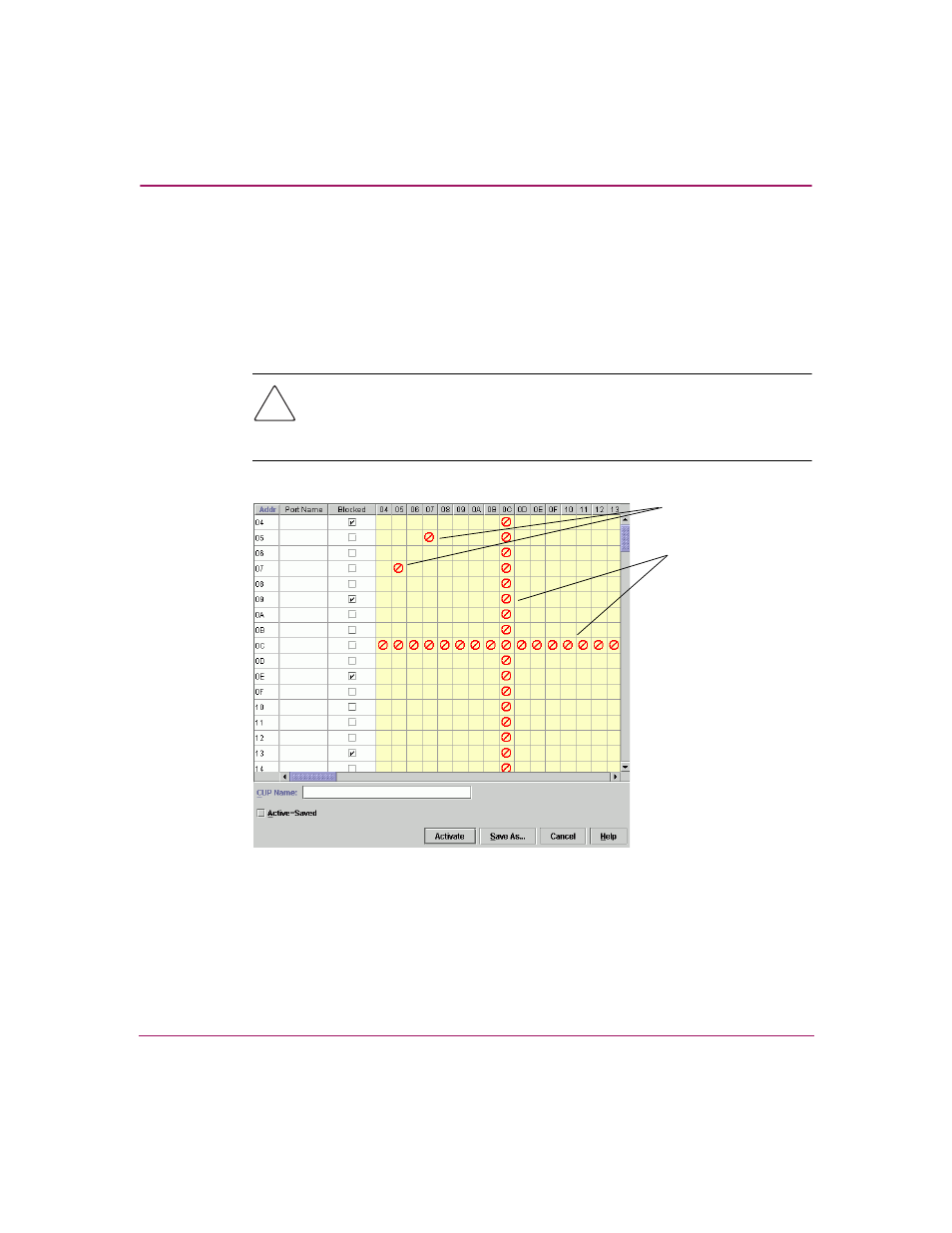

Figure 35: Configure Addresses - “Active” dialog box
3. Click Save As to open the Save Address Configuration As dialog box.
1
Port address 07 is prohibited from
communicating with port address 05.
2
Port OC is prohibited from communicating
with all other port addresses.
1
2
