HP StorageWorks 2.12 Edge Switch - Manual (Page 191)

Optional Features
191 Edge Switch Element Manager User Guide
Open Trunking Log
This log ( Figure 64 ) provides details on flow rerouting that is occurring through
switch ports.

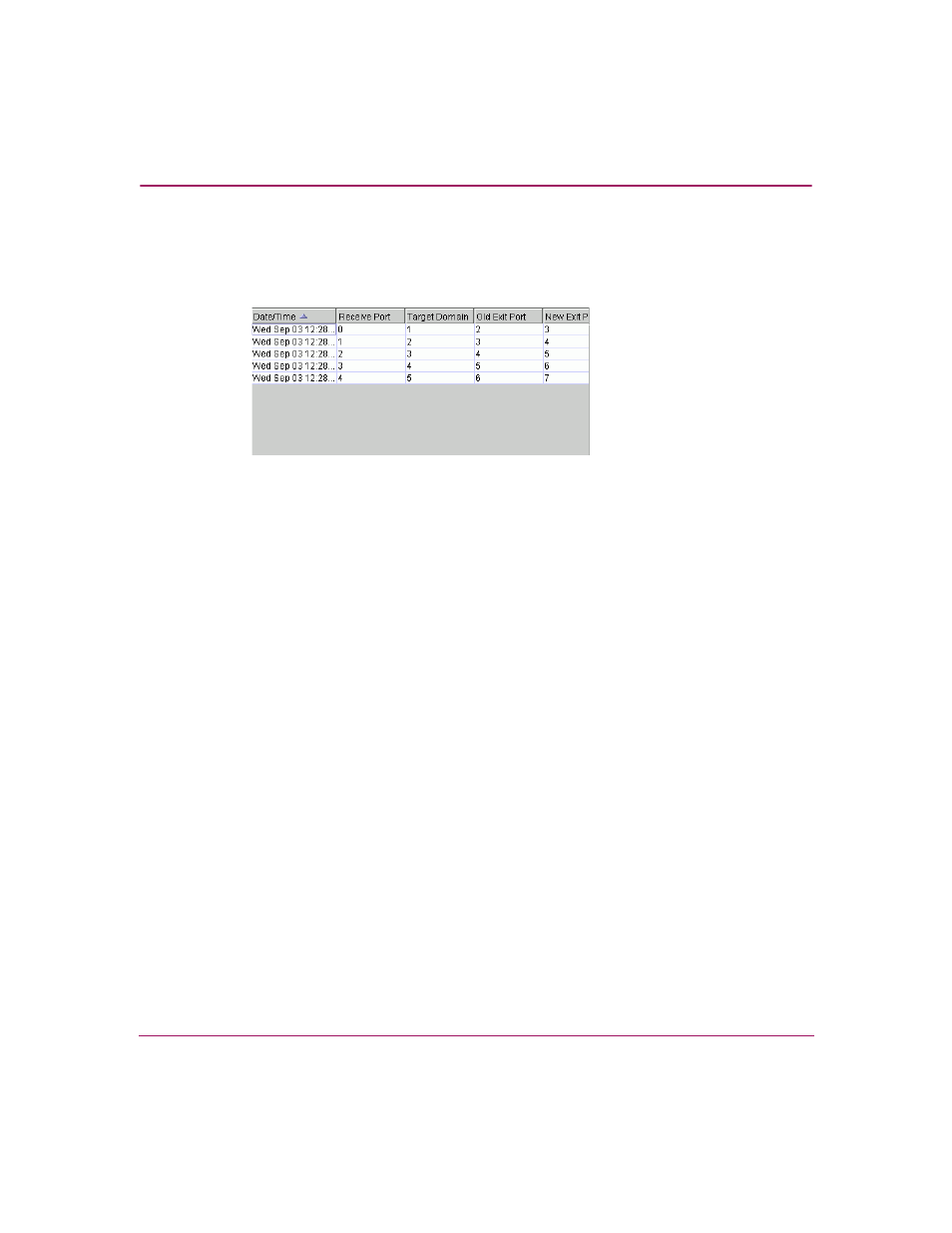

Figure 64: Open Trunking Log
This log contains the following columns:
■ Date/Time—Date and time that action occurred.
■ Receive Port—Decimal receive port number on the local switch associated
with the flow that was rerouted.
■ Target Domain—Decimal domain ID associated with the flow that was
rerouted.
■ Old Exit Port—Decimal exit port number on this switch that the flow used to
get to the target domain.
■ New Exit Port—Decimal exit port number on this switch that the flow now
uses to get to the target domain.
